CLASSIC PRO / SA-2

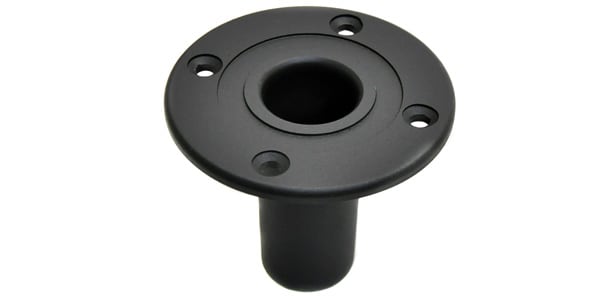

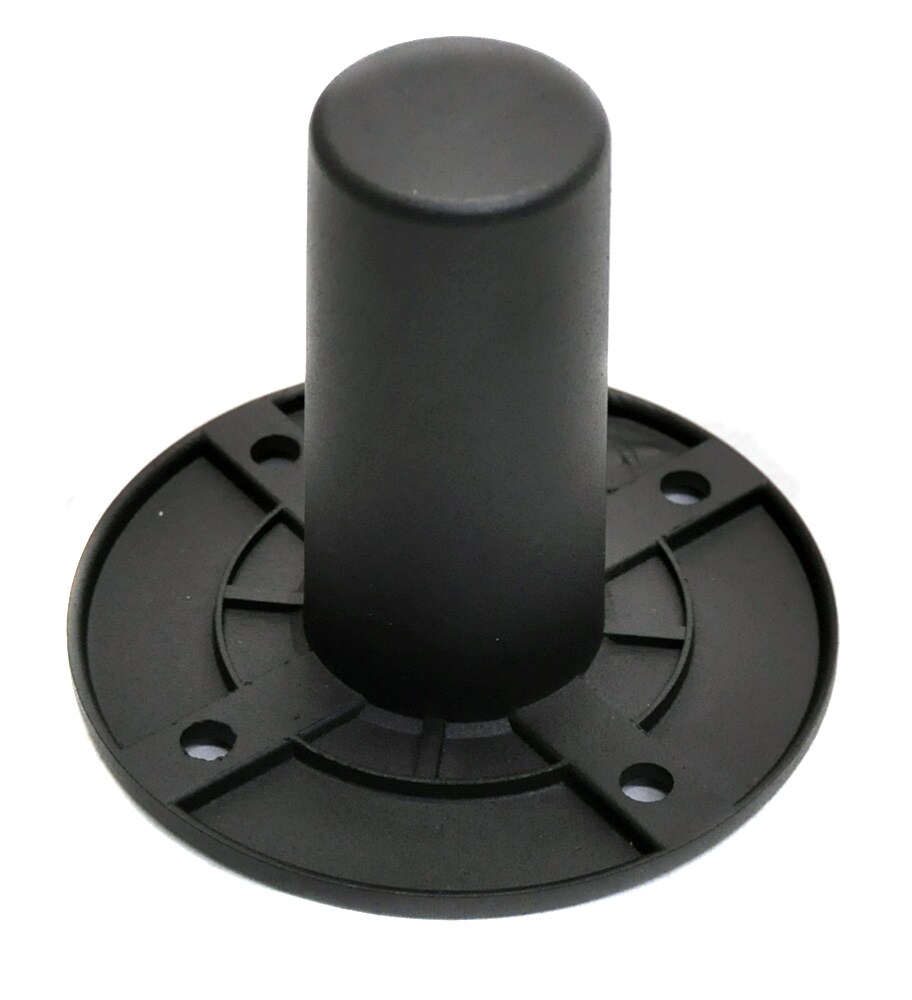

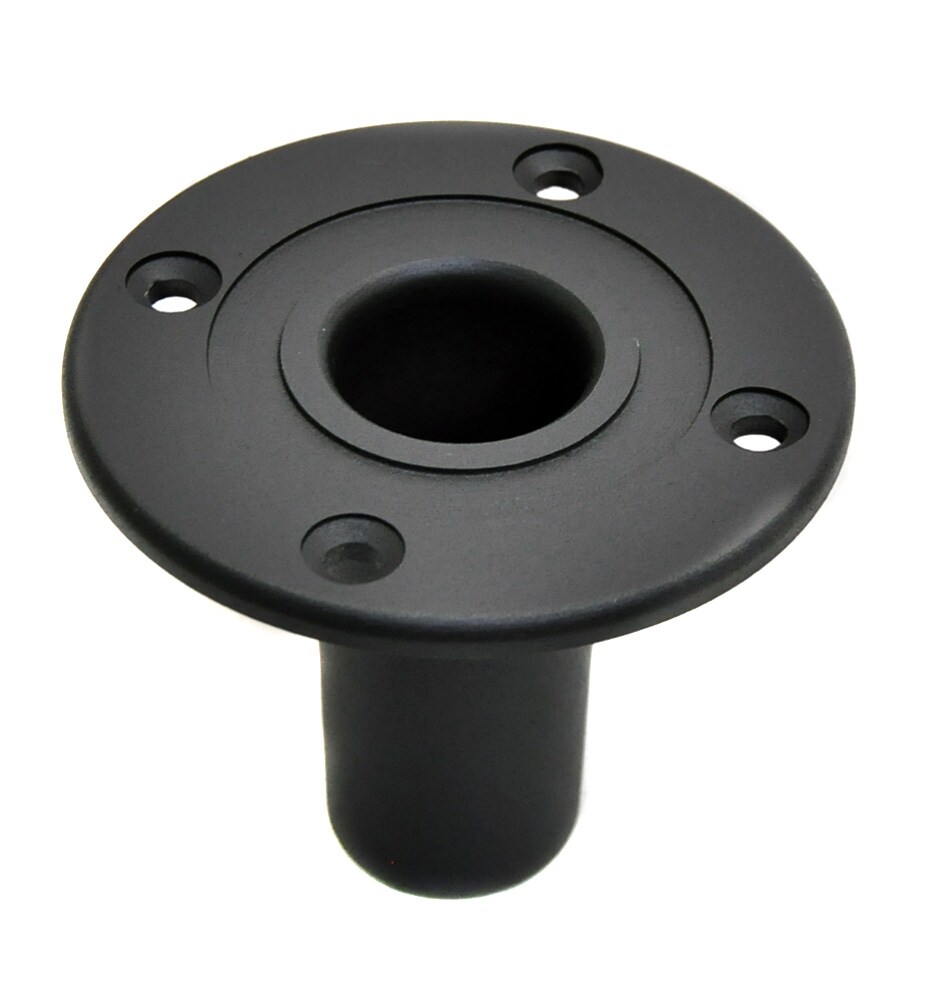

The CSP TOP HAT is a flange adapter. It is compatible with CSP10/CSP12/CSP15/CP12II/CP12IIP/CP15II/CP15IIP/CP18SII/CP18SIIP/CS404/CP10MP/CP12MP.

■Flange Adapter

■Compatible Models: CSP10/CSP12/CSP15/CP12II/CP12IIP/CP15II/CP15IIP/CP18SII/CP18SIIP/CS404/CP10MP/CP12MP

■Material: Zinc Alloy

■Pole Socket: Approx. 35.5mm

■Length on the inside of the speaker (length from the plate surface): Approx. 9cm

■Diameter of the hole to be drilled on the speaker side: Approx. 4.5cm

■Base Plate Outer Diameter: Approx. 11.5cm

■Diameter between mounting screw holes: Approx. 8.8cm

■Screw hole diameter: 7.5mm

■Screw hole position (length from the outside to the center of the screw hole): Approx. 12.7mm

■Plate Thickness: Approx. 6.5mm

*We cannot provide support for problems caused by installing this product on incompatible speakers.
