Blackmagic Design / SWPANELADV1ME10

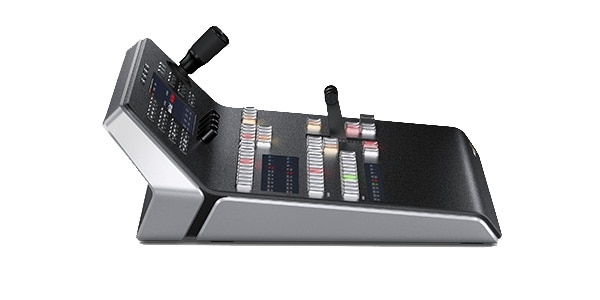

[Official Japanese product] The ATEM 1 M/E Advanced Panel is a professional hardware panel that gives you precise control over your ATEM switcher.

Featuring the latest broadcast technology, the ATEM 1 M/E Advanced Panel features a built-in LCD, high-quality buttons with customizable backlighting, a professional joystick and a smooth, weighted T-bar fader. The M/E control buttons feature dynamic screens below them with customizable labels and color-changing status indicators. A powerful SHIFT button also lets you control a second tier of the panel, giving you access to 10 additional inputs. Compact and durable, the ATEM 1 M/E Advanced Panel fits into a standard equipment rack, making it ideal for use in broadcast trucks and flyaway kits. ■Professional Hardware Control Panel
■Direct Crosspoints: 10
■Shift Crosspoints: 20
■Crosspoint Button Type: Tri-Color LED
■Crosspoint Label: LCD (3 columns x 24 characters)
■Next Transition Selection: BKG, Key 1 - Key 4
■On-Air Indicators: 4
■Power Status Indicator: Not supported
■DSK Transition Selection: Auto, Cut, Tie/Preview
■Preview Transition: 1
■Transition Rate Display: Via Main Menu:
■LCD Menu Displays: 3
■Menu Control: 20 Buttons
■Dedicated Macro Buttons: 10
■""Multi Control"" Button: Not supported
■Destination Bus: 1
■Source Select Bus: 1
■Fader Bar: 1
■3-Axis Joystick: 1
■Numeric Keypad: 1
■Dimensions: 430 (W) x 389 (D) mm 5.74 kg
*Power cable sold separately.

9338716005301

*This product is covered by a one-year manufacturer's warranty.
