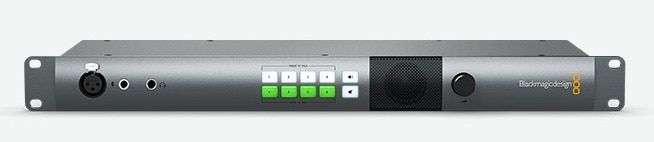

Blackmagic Design / ATEM Studio Converter 2

Can be connected to up to 4 Camera Converters with an optical fiber cable and supports bidirectional video transmission up to 45km, tally signals, and talkback!

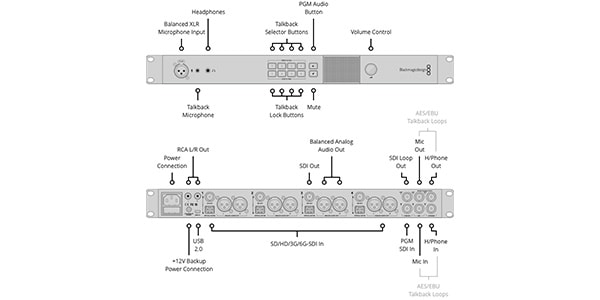

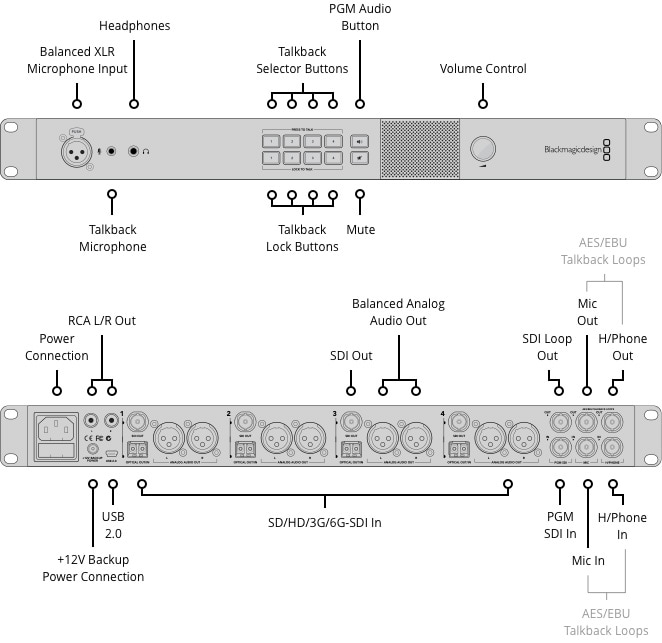

■ Studio converter
■ SDI video input: 10-bit 1 system. Program input from switcher that can switch SD/HD. Contains tally information
■ SDI video output: SD/HD switchable camera output 10-bit 4 systems. SD / HD switchable program loop-through output 10-bit 1 system. Can be connected to another ATEM Studio switcher
■ Talkback audio: Aircraft headset (0.25 inch TRS headset terminal and 0.206 inch TRS microphone terminal) Balanced XLR microphone terminal of front mount
■ Analog audio: 1 stereo RCA monitoring output
■ AES/EBU audio input: 1 integrated headphone input. One integrated microphone input. Connect to another ATEM Studio Converter with integrated input
■ AES/EBU audio output: 1 integrated headphone output. 1 integrated microphone output. Connect to another ATEM Studio Converter with integrated output
■ Balanced XLR audio output: 4 stereo analog audio outputs for camera
■ Optical fiber video input: 4 single-mode camera inputs (LC terminal, SD / HD switchable)
■ 482mm x 44mm x 158mm 1.81kg
