Blackmagic Design / ATEM Camera Converter

Connect to the SDI or HDMI output of the camera and convert to optical! At the same time, the program feed from the switcher is sent via optical fiber for camera monitoring.

■ Battery power optical fiber converter

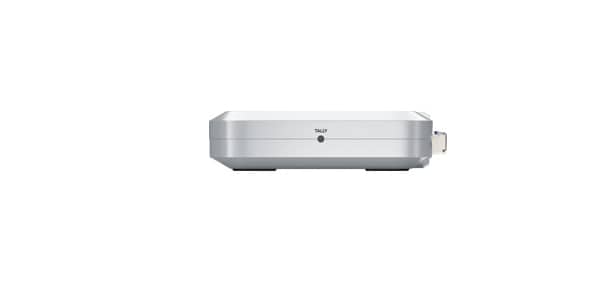

■ Talkback, tally, microphone input function installed

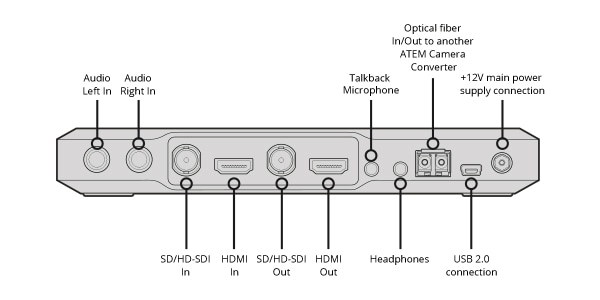

■ SDI video input: 10-bit x1 (SD/HD switchable)
■ SDI video output: 10-bit x1 (SD/HD switchable)
■ HDMI video input: HDMI (A type terminal) x1
■ HDMI video output: HDMI (A type terminal) x1
■ Talkback audio: 3.5mm stereo terminal x1 for talkback microphone. 3.5mm stereo jack for stereo headphones x1 (compatible with iPhone headset)
■ Analog audio: Stereo balanced 1/4 inch TRS terminal (microphone level) x2. Replaces SDI/HDMI input audio when connected
■ Optical fiber video input: Single mode x1 (LC terminal, SD/HD switchable)
■ Optical fiber video output: Single mode x1 (LC terminal, SD/HD switchable)
■ Optical fiber audio input: Single mode camera audio input x4 (LC terminal) Channels 1&2 are camera audio, channels 15&16 are intercom audio
■ Optical fiber audio output: Single mode camera audio output x4 (LC terminal) Channels 1&2 are camera audio, channels 15&16 are intercom audio
■ Computer interface: Initial setting, firmware update, Converter Utility software control USB 2.0 connection x1 (mini-B type)
■ 203mm x 44mm x 121mm 754g
