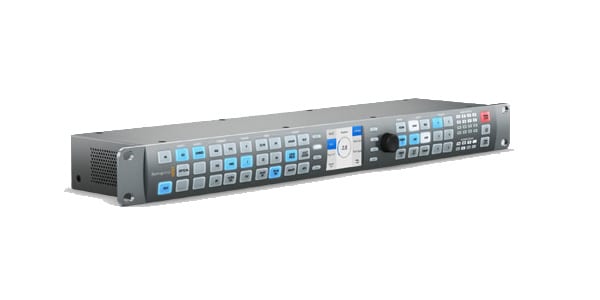

Blackmagic Design / Teranex Express

Post-production converter

■ Post-production converter
■ Equipped with 12G-SDI

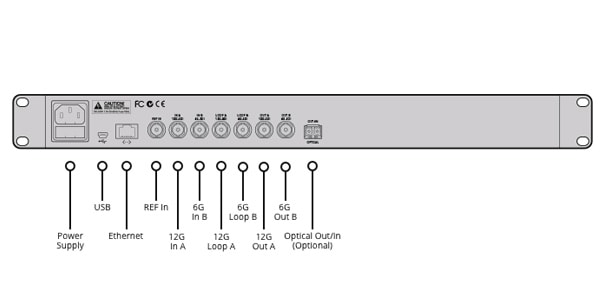

■ SDI video input: BNC x1 (IN A)-10-bit SD, HD, 2K, 3G HD (Level A and B), 6G/12G Ultra HD automatically switch.
■ BNC x1 (IN B)-10-bit SD, HD, 2K, 3G HD, 6G Ultra HD automatic switching. Can be used as dual link input for 4:2:2 3G/6G Ultra HD
■ SDI video input loop: BNC x1 (IN A loop)-Reclock 10-bit SD, HD, 2K, 3G HD, 6G/12G Ultra HD automatically switch
■ BNC x1 (IN B Loop)-Reclocked 10-bit SD, HD, 2K, 3G HD, 6G Ultra HD auto switch
■ SDI video output: BNC x1 (OUT A)-10-bit SD, HD, 2K, 3G HD (Level A and B), 6G/12G Ultra HD automatically switch.
■ BNC x1 (OUT B)-10-bit SD, HD, 2K, 3G HD (Level A and B), 6G Ultra HD automatic switching. Can be used as dual link output for 4:2:2 3G/6G Ultra HD
■ Quad SDI video output: SMPTE 435-1-Quad HD split (square division method) only. Uses SDI output x2 for quadrants A and B. Reconfigure 2 SDI input loop connections as quadrants C and D.
■ Optical fiber video input: 10-bit x1 (SD/HD/3G HD/2K/Ultra HD automatic switching)
■ Optical fiber video output: 10-bit x1 (SD/HD/3G HD/2K/Ultra HD automatic switching) It cannot be used in dual link/quad link output mode.
■ SDI audio input: 16 channels for SD, HD, 3G HD, 2K, Ultra HD
■ SDI audio output: 16 channels for SD, HD, 3G HD, 2K, Ultra HD
■Optical fiber connection (option): SMPTE optical fiber SFP socket x1
■Optical fiber audio input: SD, HD, 3G HD, 2K, Ultra HD 16 channels
■Optical fiber audio output: SD, HD, 3G HD, 2K, Ultra HD compatible 16 channels
■ Built-in Dolby support: Dolby AC-3 pass-through for all conversions Dolby E pass-through (video frame rate
■ Compatible SD format: 525i59.94 NTSC, 625i50 PAL
■ Compatible 1.5G-SDI HD format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30,
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
■ Compatible 3G-SDI HD formats: 1080p50, 1080p59.94, 1080p60 (Levels A and B)
■ Compatible 2K format: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 23.98PsF, 2K DCI 24PsF
■ Compatible Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 425M
■ Supported SDI metadata: VITC/ATC support, SMPTE 12M video index support is WSS, RP186, AFD, SMPTE 2016. Closed captions support conversion between 608 and 708, SMPTE 334M
■ Compatible SDI format: 525 NTSC, 625 PAL, 720HD, 1080HD, 2K 2048 x 1080, Ultra HD 3840 x 2160 automatic switching
■ 482mm x 44.2mm x 125mm 1.45kg
*Power cable is sold separately.
