BAE / 1073MPF Dual Channel

1073MP equipped with a high-pass filter. Produces a fat, overtone-rich vintage sound based on the Neve 1073. Dual channel version for a wide range of connections.

■ Main features

・ Class A, 1U chassis transformer coupling design
・ Equipped with high-pass filter based on inductor
・ Compatible with low output ribbon microphone with 71dB GAIN
・ Input impedance can be switched between 1200-300Ω
・ Supports line level input
・ High impedance DI for guitar and bass
・ Equipped with polarity reversal switch
・ Equipped with the same Carnhill St Ives transformer as 1073 and 1084

■ Specs

Number of channels: 2
Frequency response: 10Hz-55kHz
High-pass filter: 50Hz, 80Hz, 160Hz, 300Hz
Equipped with phantom power

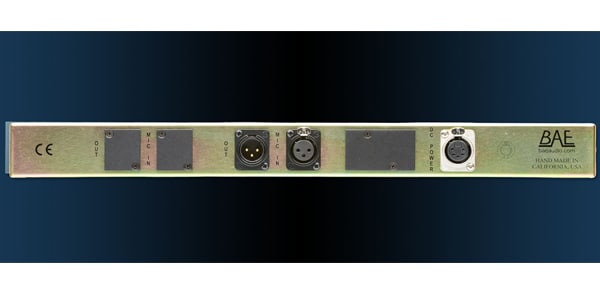

Analog input: 2 x XLR (mic), 2 x 1/4" (Hi-Z)
Analog output: 2 x XLR
Power requirements: 115/230 VAC, 30W (dedicated external power supply included)
Dimensions: 19W x 1.75L x 9D (1U rack size)
Weight: 4.54 kg
