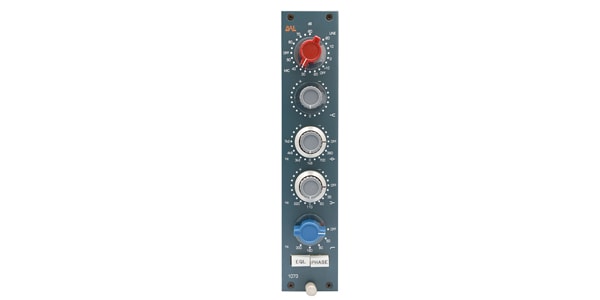

BAE / 1073 Module

BAE製、1073 10シリーズ・モジュール。オリジナルのNEVE 1073と同じ方法で設計されたモデルです。サウンドにパンチとキャラクターを与えるのに最適。極性反転スイッチ搭載しています。

■ Main features

・ Size: for Neve 80 series console
・ Equipped with high-pass filter based on inductor
・ Compatible with low output ribbon microphones with 80dB GAIN
・ 3 band EQ section
・ Equipped with polarity reversal switch
・ Carnhill St. Ives transformer, Elma switch, Canford wire design same as the original

■ Specs

Number of channels: 1
Frequency response: 10Hz-55kHz
3-band EQ, high-pass filter, 50Hz, 80Hz, 160Hz, 300Hz
HF: +/- 16dB shelf, 12kHz fixed frequency
MF: +/- 18dB peaking, fixed Q, 360Hz, 700Hz, 1.6kHz, 3.2kHz, 4.8kHz, and 7.2kHz selectable center frequency
LF: +/- 16dB shelf, 35Hz, 60Hz, 110Hz, 220Hz selectable center frequency
Equipped with phantom power
Power requirements: requires dedicated mounting chassis
Dimensions: 10 series module size
Weight: 2.72 kg
