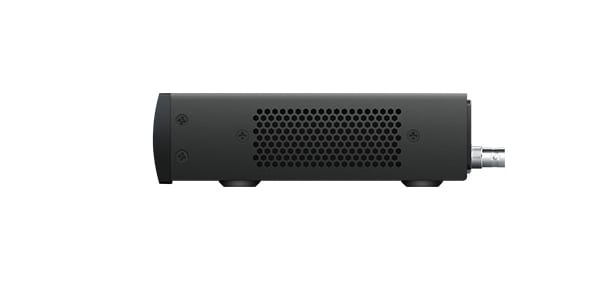

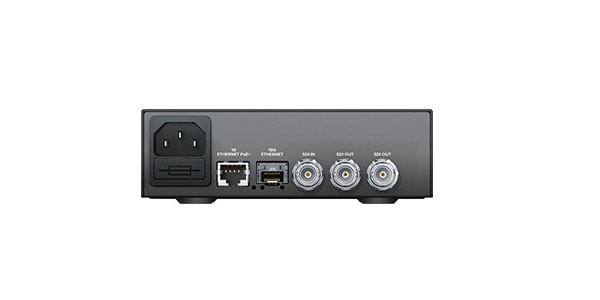

Blackmagic Design / Teranex Mini - IP Video 12G

Convert video to IP and route through your existing Ethernet network. You can also convert IP video back to SDI!

■ Video/IP converter
■ SDI video input: 10-bit x1 (HD-SDI, 6G-SDI, 12G-SDI switchable)
■ SDI video output: 10-bit x2 (HD-SDI, 6G-SDI, 12G-SDI switchable)
■ Ethernet: Gigabit Ethernet (supports 3G-SDI up to 1080p60, uses TICO encoding/decoding) Optional 10G optical data Ethernet (supports Ultra HD up to 2160p60, uses TICO encoding/decoding)
■ Supported multi-rate: HD-SDI, 6G-SDI, 12G-SDI automatic detection
■ Update: via USB 2.0 high speed interface (480Mb/s) or Ethernet
■ Configuration: Ethernet or USB 2.0 (firmware update and IP address setting)
■ Reclocking: HD, 6G-SDI, 12G-SDI video automatically switched on all SDI outputs
■ HD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60
■ Level A/B SDI is automatically detected at 1080p50, 1080p59.94, 1080p60
■ 2K video format: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsFUltra HD video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ 4K video format: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601
■ SDI video rate: SDI video input can be switched between HD, Ultra HD and 4K. SDI can be switched between 1.5Gb/s HD-SDI, 3G-SDI, 6G-SDI and 12G-SDI.
■ SDI video sampling: 4:2:2, 4:4:4 up to 4K DCI 30p
■ SDI audio sampling: TV standard sample rate (48kHz/24-bit)
■ SDI automatic switching HD-SDI/6G-SDI/12G-SDI is automatically selected
■ Compatible SDI metadata: Supports video payload ID attached to SMPTE 352M data
■ 140mmx170mmx44mm 580G
*Power cable is sold separately.
