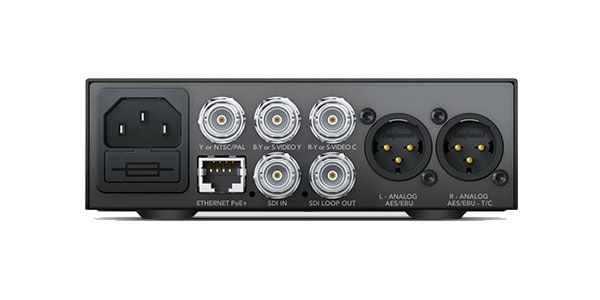

Blackmagic Design / Teranex Mini - SDI to Analog 12G

Convert 12G-SDI to analog. The built-in down converter allows you to connect Ultra HD sources to SD/HD component video equipment.

■ 12G-SDI/Analog converter
■ SDI video input: 12G-SDI x1 (SD/HD/2K/4K automatic switching)
■ SDI video output: 12G-SDI loop through x1
■ Analog audio output: 2-channel professional balanced analog audio (XLR terminal) Right XLR can be set for timecode output
■ AES/EBU audio output: 4 channels of professional 110Ω balanced digital audio (XLR terminal) Right XLR can be set for timecode output
■ Embedded audio: 16 channels
■ Corresponding multi-rate: SD/HD/12G-SDI automatic detection
■ Update and configuration: USB or Ethernet
■ Supports reclocking
■ Compatible SD format: 525i59.94 NTSC, 625i50 PAL
■ Compatible HD formats: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30.
1080i50, 1080i59.94, 1080i60
■ Compatible 2K formats: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF
■ Compatible Ultra HD formats: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
■ Compatible 4K format: 4K DCI 23.98p, 4K DCI 24p, 4K DCI 25p, 4K DCI 29.97p, 4K DCI 30p
■ Automatic SDI switching; SD/HD/12G-SDI is automatically detected
■ Compatible analog formats: 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
■ 140x44x170mm 580g
*Power cable is sold separately.
