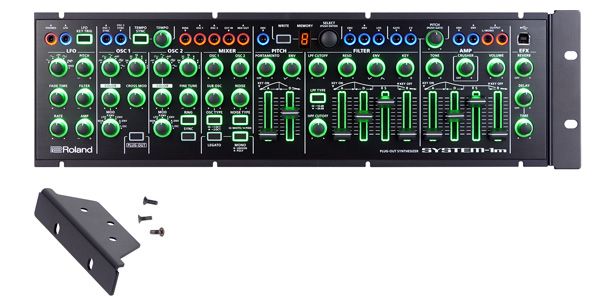

ROLAND / SYSTEM-1M

■ Semi-modular synthesizer
■ AIRA


■ Features
・Modern semi-modular synthesizer with plug-out function.
・19 CV/GATE terminals color-coded with LED lights.
・Compatible with Eurorack, table top and 19-inch racks using AC adapter or Eurorack power supply.
・Various oscillator sections with 6 waveforms, cross modulation, ring modulation, sync, and color control.
・All parameters can be operated with high precision knobs and sliders with LED indicators.
・-12dB and -24dB filter sections with independent high pass filters.
・Built-in powerful effects such as delay, reverb and crusher.
・LFO and delay support tempo sync.
・24-bit/96kHz audio and MIDI interface function.

■ Specifications
Maximum polyphony: 4 notes (in SYSTEM-1m mode)
User memory: 8
Controllers: VOLUME knob, TEMPO knob, TEMPO SYNC button, LEGATO button, MONO/UNISON/POLY button, PTICH knob, SELECT knob, WRITE button, MEMORY display, power switch (rear)

・Connecting terminal
PHONES jack: Stereo mini type
OUTPUT (L/MONO, R) terminals: Standard type (rear)
OUTPUT (L/MONO, R) jacks: Mini type (front)
LFO OUT, OSC 1 SYNC OUT, OSC 2 SYNC IN, RING IN,
OSC 1 OUT, OSC 2 OUT, EXT IN, MIX OUT, PITCH ENV IN,
FILTER ENV IN, FILTER ENV OUT, FILTER LFO IN,
GATE IN, CV IN, AMP ENV IN, AMP ENV OUT jacks: Mini type
MIDI (IN, OUT) terminals (rear, bottom)
USB port: USB type B (audio/MIDI compatible)

Accessories: AC adapter, instruction manual, safety notice leaflet, warranty card, PLUG-OUT information card, Roland user registration card, rack mount adapter, Eurorack mounting screw, Eurorack power cable, patching cable (set of 3)

External dimensions: W427 xD129 xH70mm

Mass: 1.25kg
