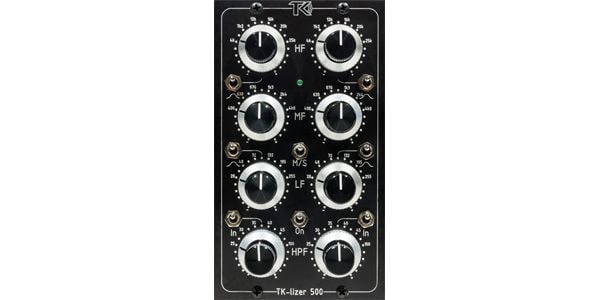

TK AUDIO / TK-lizer 500

The TK-lizer, a stereo equalizer equipped with M/S processing functionality essential for studio work, is now available in a compact API 500 standard size!

■ Equalizer - API 500 Series Compatible

The TK-lizer, a 2U rackmount equalizer with M/S functionality, has been reborn as a compact 2-slot unit conforming to the API 500 standard, retaining all its features. The TK-lizer 500 is manufactured entirely by hand in Sweden, with a strong emphasis on quality, and undergoes rigorous testing before shipment.

■ Main Features


? 3-band EQ


? HF and LF curves can be selected from two types via a switch: shelving and peaking.


? -12dB/oct high-pass filter: 6 cutoff frequency points from 25Hz to 100Hz


? M/S functionality


◎ What is M/S functionality?


It separates the sound source into Mid and Side components, allowing independent equalization processing for each. In M/S mode, stereo width can also be controlled using the level control.


■Specifications

Power Supply: +190mA / -80mA

Frequency Response: +/-0.2dB@20Hz - 50kHz

Distortion: THD <0.0006% +4dBu, THD+N <0.001% +26dBu

S/N Ratio: 95dB

Crosstalk: -89dB

Input Impedance: 24kΩ

Output Impedance: 50Ω

Maximum Input: +26dBu

Maximum Output: +27dBu

Q Value: ~0.5
