EOWAVE / Ribbon 2

The Ribbon2 is a ribbon-type synth and controller that operates in three modes: ""Synthesizer,"" ""USB Controller,"" and ""CV/Gate Controller""!

Equipped with three sensors—position, pressure, and touch—it can use the information from each sensor to play the built-in synthesizer, or convert and output signals as MIDI (USB) or analog (CV/Gate). Its simple form factor allows for performances suited to any musical style. It can be played placed on a table or keyboard panel, or held and played like a stringed instrument such as a guitar, cello, or violin, allowing for imaginative performance. The unit itself illuminates with LEDs, making it a highly effective visual gimmick for live performances.


■ Ribbon Synthesizer/Controller
■ Analog
■ Main Features

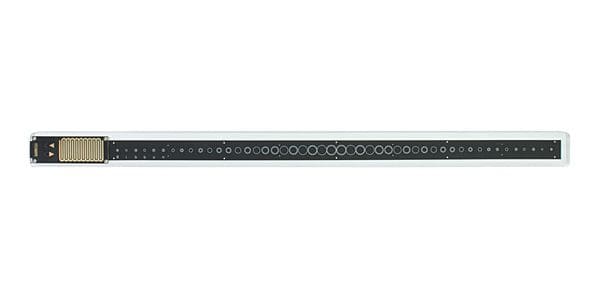

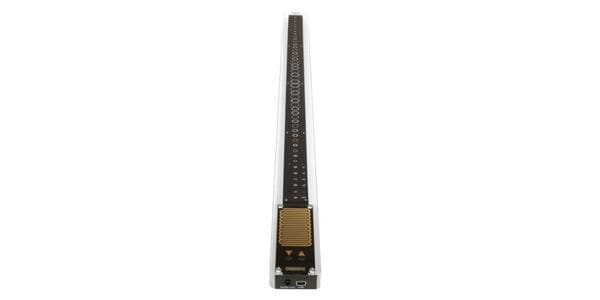

• 50cm Position & Pressure Sensitive Ribbon
• 12-bit Digital Oscillator
• Tactile Resistive Pad
• USB Connector (Mini-B Type)
• Supports Audio/CV Output

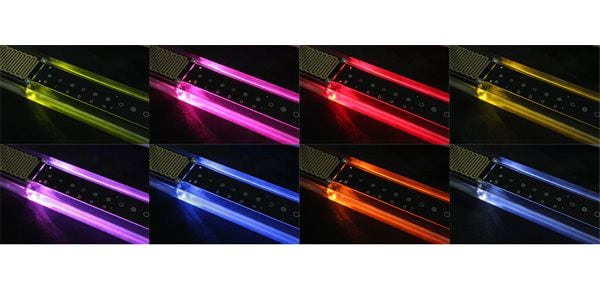

• Built-in LED Illumination (RGB color can be set to your preference for each program)
• 16 Preset Memories (Programmed with editor software and saved to the unit; can be changed using buttons on the unit)
• Dimensions: 63 × 4 × 1.5 (cm)
• Weight: Approx. 480g
• Power Supply: USB (Power is supplied from a computer with a USB port and a USB AC adapter.)
• Accessories: Japanese Manual, Mini USB Cable, Mini - Phone Cable, AC/USB Adapter, Plastic Pods (Rubber Feet) x 4
■ Synth Specifications
• 12-bit Digital Lo-Fi Synthesizer
• Waveform: Sawtooth wave, square wave, triangle wave, sine wave, white noise, pitched noise, additive, bell, grain
• Tact pad: FM modulation, AM modulation
• Effects: Delay

■ USB/MIDI Controller Specifications
• Pitch control via MIDI note & pitch bend messages
• Pressure sensor and touch sensor can be assigned to any MIDI CC

■ CV/Gate Controller Specifications
• Position sensor: Scale: V/Oct (0 to +4V)
• Pressure sensor and touch sensor (0 to +4V, pressure sensor can be used as a Gate)
*1: A computer with a USB port (Windows / Mac OS), MAX Runtime (free), and the editor software ""EOWAVE Ribbon2 Editor"" (free) that runs on MAX Runtime are required to change various settings such as waveform switching and CV/Gate control.
*2: An Apple Camera Connection Kit is required separately for connection.
