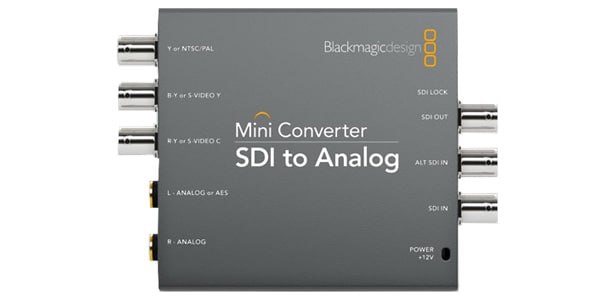

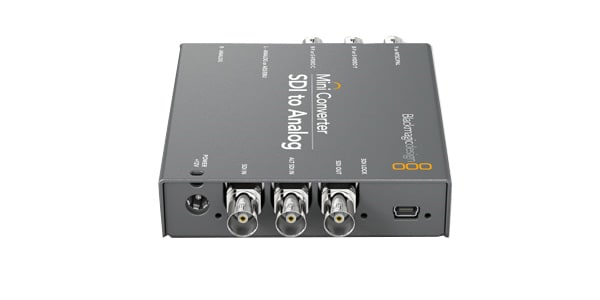

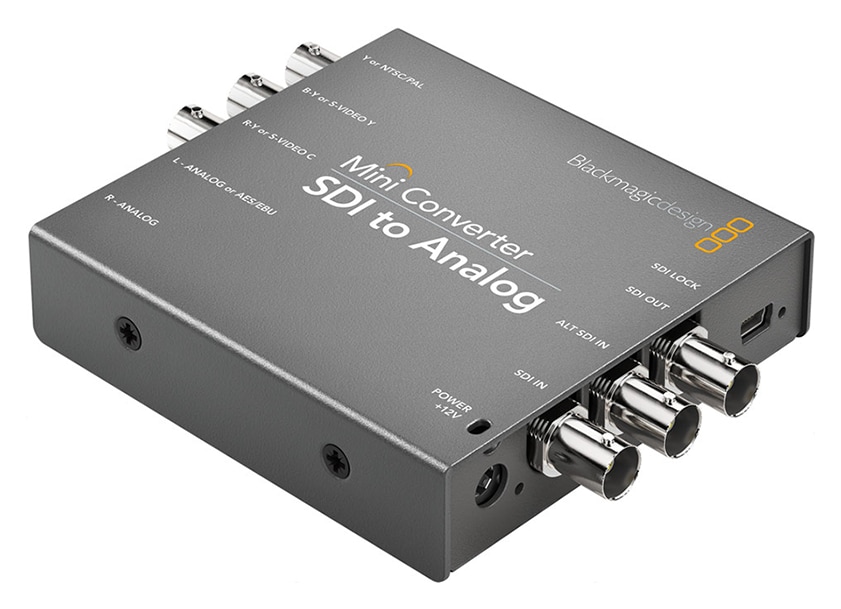

Blackmagic Design / Mini Converter SDI to Analog

Converts SD/HD-SDI to analog component, S-video, NTSC/PAL composite.

■ Converter
■ SDI to Analog

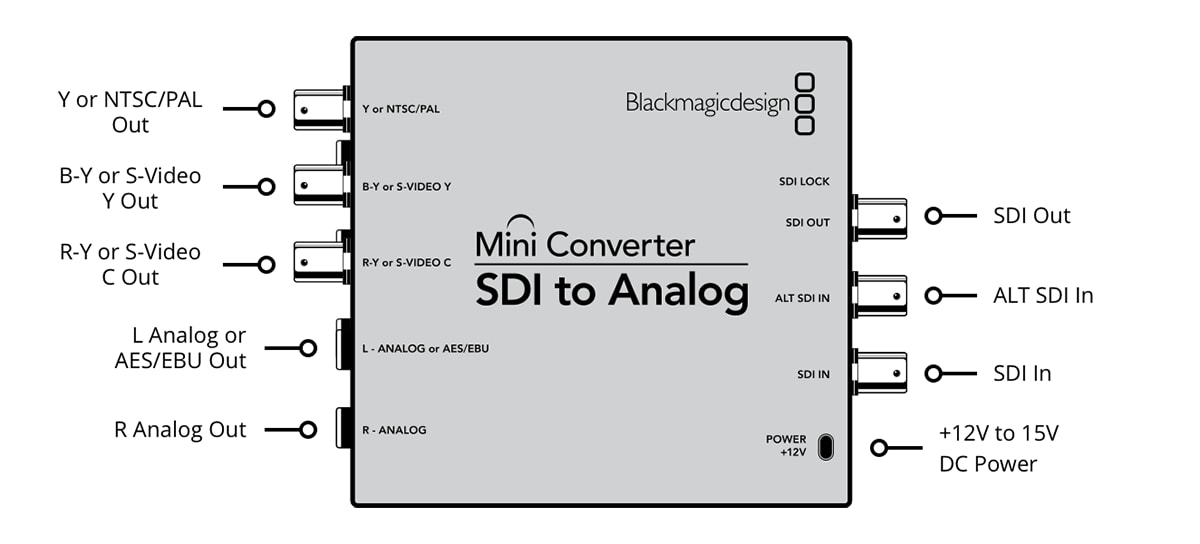

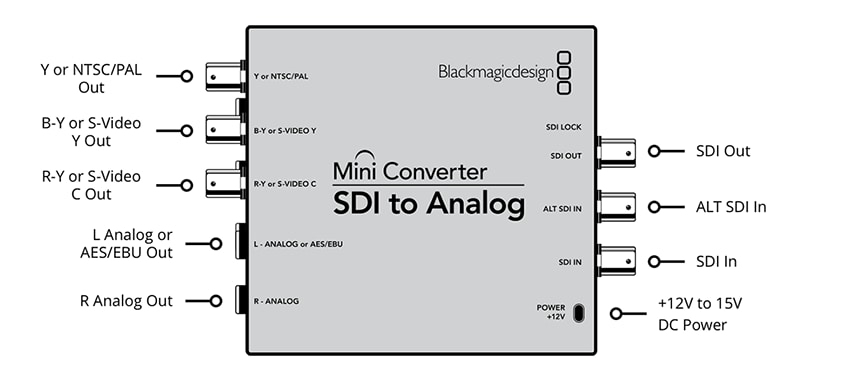

Connections:
■ SDI video input: SD/HD/1.5G-SDI x1 Alternate SDI input x1 (automatically switches if a problem occurs with the main input)
■ SDI video output:: SDI loop output x1
■ SDI rate: 270Mb, 1.5G
■ Analog video output: NTSC, PAL, S-video, component SD/HD from 1.5G-SDI input
■ Analog audio output: 2 channels of professional balanced analog audio (standard 1/4 inch jack terminal)
■ Digital audio output: 2ch balanced AES/EBU audio
■ SDI Redundant Input: Automatically switched if main SDI input is lost
■ Supported multi-rate: SD/HD/1.5G-SDI automatic detection
■ Update and configuration: USB
■ Reclocking: Supported
■ Size: 123.10 x 92.27 x 23mm 228G
