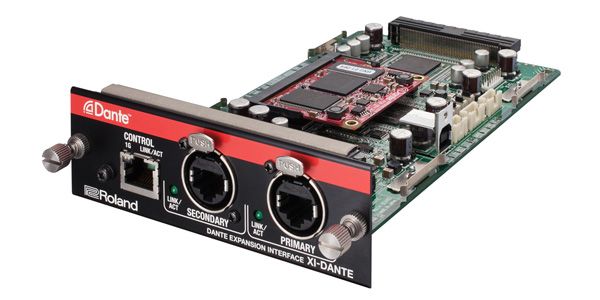

O.H.R.C.A M-5000/M-5000C, V-1200HD DANTE interface module.
■ DANTE expansion interface
■ O.H.R.C.A for M-5000, V-1200HD
◇ With M-5000
Bidirectional audio transmission of 32ch at 96kHz and 64ch at 48kHz is possible.
Equipped with 2 ports of PRIMARY and SECONDARY and LAN terminal for PC/MAC connection.
The PRIMARY and SECONDARY terminals can be duplicated for transmission to build a redundant system.
◇ With V-1200HD
16ch input and 16ch output can be connected to the internal audio processor (48kHz).
◇ Dante Controller
“Dante Controller” is an Audinate application that manages the Dante network and sets audio routing.
Compatible with Windows/Mac. "Dante Controller" can be downloaded from the Audinate website (free of charge).
◇ Dante Virtual Soundcard
"Dante Virtual Soundcard" is an Audinate application that allows a computer to operate as a Dante device on the Dante network. Compatible with Windows/Mac. Dante Virtual Soundcard allows you to directly transfer audio data between a computer on the network and a Dante device using an application that supports standard Mac Core Audio or ASIO audio interfaces. "Dante Virtual Soundcard" can be downloaded from the Audinate homepage (charged).
