audio technica / ATW-1312 Hand Mic/Belt Pack Dual Set

The audio-technica/ATW-1312 is a 2-channel wireless set that combines a handheld type and a belt pack type transmitter (microphone sold separately) for a wide range of applications from speech to live performance. Up to 10 channels can be used simultaneously. Furthermore, the stability is improved by the antenna that can be mounted externally.

■ System specifications

■ Operation radio band 2.4GHz ISM band
■ Audio dynamic range 109dB
■ Distortion rate 0.05% or less
■ Communication distance 60m (between receiver unit and transmitter)
*When there is no jamming radio wave in line of sight

■Operating temperature range 0-40℃
■Audio frequency characteristics 20-20,000Hz
Audio sampling 24bit/48kHz
■ Latency 3.8ms

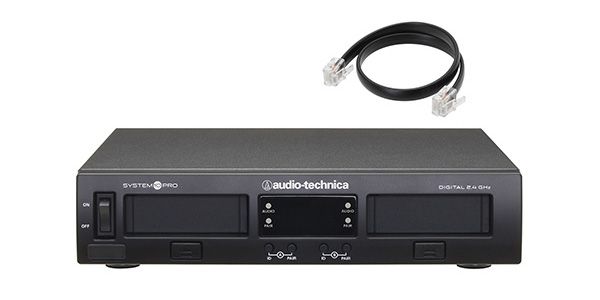

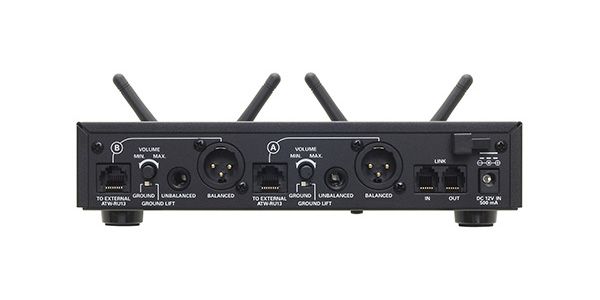

■ Receiver body / Receiver unit: ATW-RC13J / ATW-RU13J
■ Reception method Automatic channel setting method
■ Maximum audio output level
0dBV (XLR3 pin male, balanced)
6dBV (φ6.3mm monaural jack, unbalanced)

■ Power supply DC12V (use the included AC adapter, for domestic use only)
■ Outer dimensions ATW-RC13J: H44xW209.8xD169.3mm ATW-RU13J: H77.6xW57xD19mm
■ Weight ATW-RC13J: about 940g ATW-RU13J: about 64g

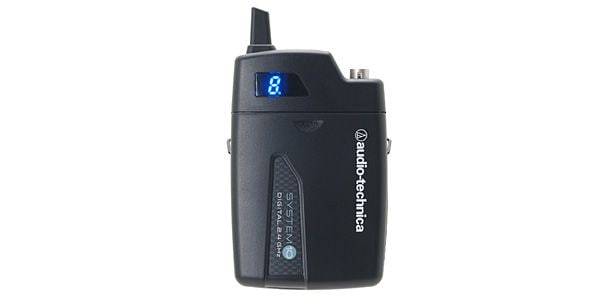

■ 2 piece type transmitter: ATW-T1001J
■ Sending color 10mW
■ Power supply DC3V (AA alkaline batteries x 2)
■ Operating time: approx. 6 hours (when using AA alkaline batteries)
■ Outer dimensions H107xW70.2xD24.9mm (excluding protrusions)
■ Weight: about 100g (excluding batteries)

■ Microphone type transmitter: ATW-T1002J
■ Transmission output 10mW
■ Power supply DC3V (AA alkaline batteries x 2)
■ Operating time approx. 6 hours (when using AA alkaline batteries)
■ Outer dimensions φ50xD254.8mm (excluding protrusions)
■ Weight: 280g (excluding batteries)

■ Accessories: Rack mount adapter (long), rack mount adapter (short), connecting plate, 4 rubber feet, link cable, 10 fixing screws, AC adapter, 2 unit holders (AT8690), 4 antennas , Wood screws x4, microphone holder (AT8456a), conversion adapter (3/8-5/8)
