CLASSIC PRO / CL-18X-4P LED Mixer Light

The CL-18X-4P is a CLASSIC PRO LED mixer light. It's ideal for applications where light is needed behind a dimmer, console, mixer, or rack case. It features a 5mm gooseneck and four LED bulbs.

■Mixer Light
■4-Pin XLR
■LED 18""
■Gooseneck
■Specifications

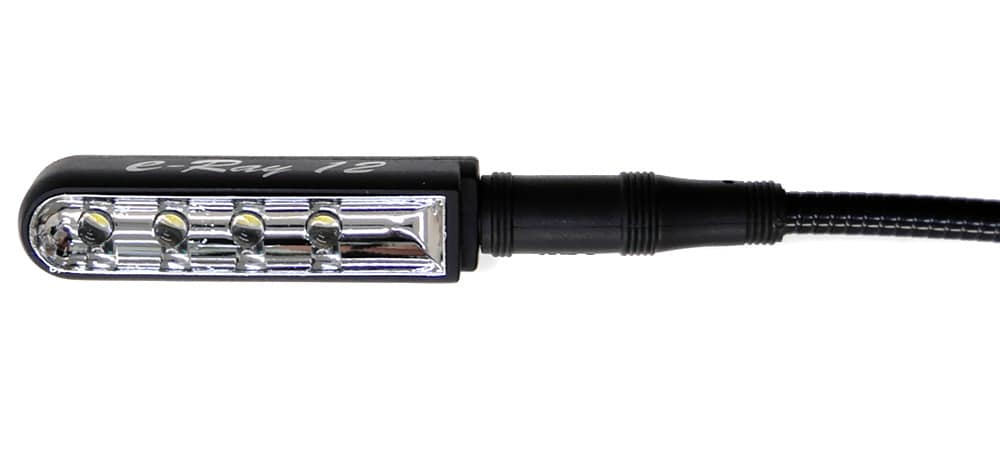

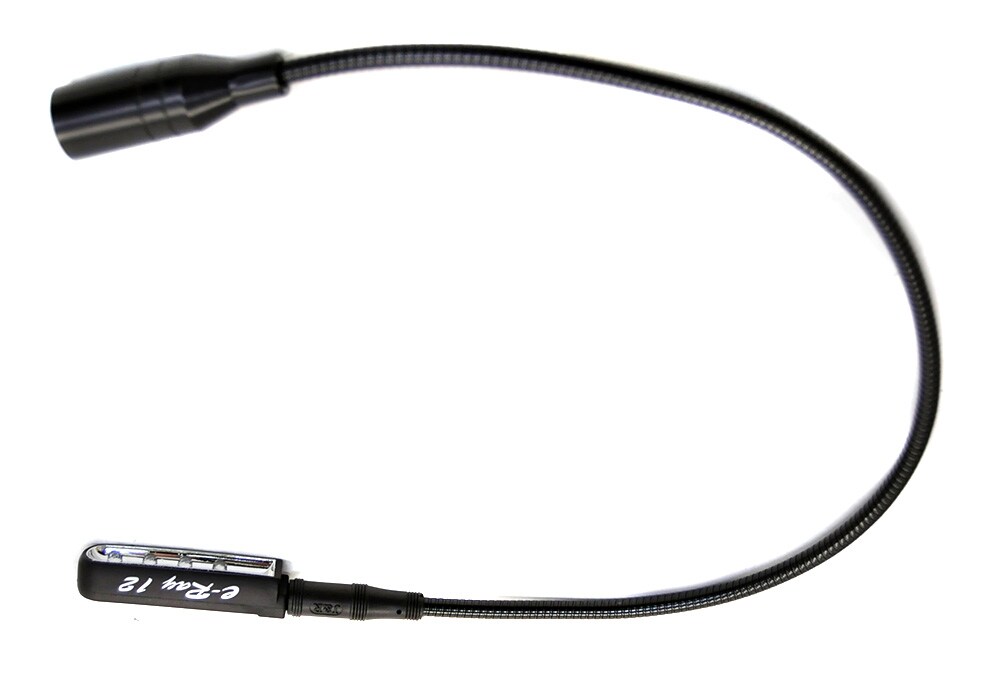

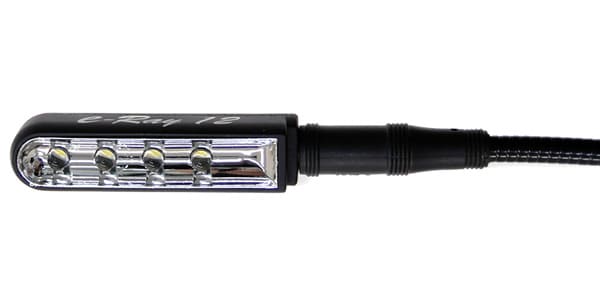

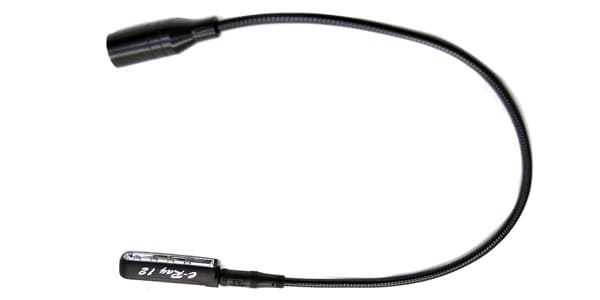

The LED gooseneck light is ideal for applications requiring illumination, such as dimmers, consoles, mixers, or the back of rack enclosures. LEDs boast excellent specs, including low power consumption, long life, and high brightness. Available in two lengths. The detachable LED gooseneck light comes standard with a 5mm diameter gooseneck and four LED bulbs (approx. 9.6W).

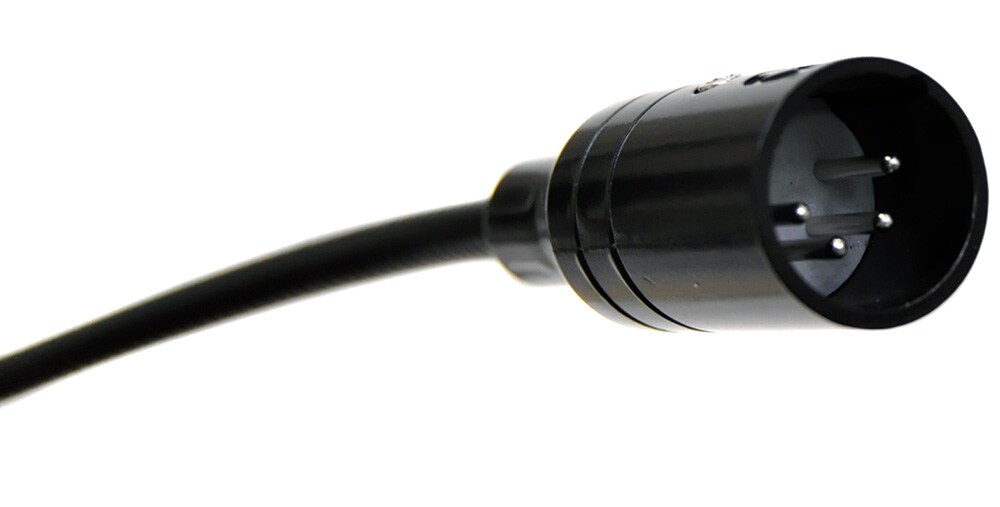

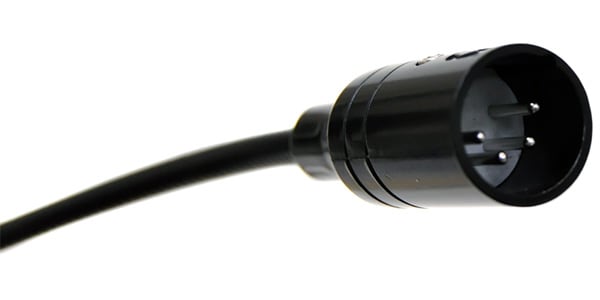

■Pin Assignment
Pin 1: No Contact
Pin 2: No Contact
Pin 3: GND
Pin 4: +12V

*Not compatible with ALLEN&HEATH Qu series or Soundcraft GB series.
