JBL / CBT 70J-1-WH column speaker system

The CBT 70J-1-WH is a column speaker. Each driver is precisely controlled to equalize sound pressure differences over distance. It features a 2-way configuration with 16 high-frequency tweeters and four 5-inch low-frequency drivers arranged coaxially. It achieves a maximum sound pressure level of 125dB. Its unique CBT technology delivers clear sound throughout the entire area. It is available in white.

Equipped with four low-frequency drivers and 16 high-frequency drivers.

- Coaxial 2-way configuration with four low-frequency drivers and 16 high-frequency drivers using neodymium magnets. Delivers powerful sound from any music source.
- Proprietary CBT technology delivers clear sound regardless of the listening area.
- J-shaped design with asymmetric vertical dispersion. Increases sound pressure levels in the distance and minimizes differences in sound pressure due to distance from the speaker.

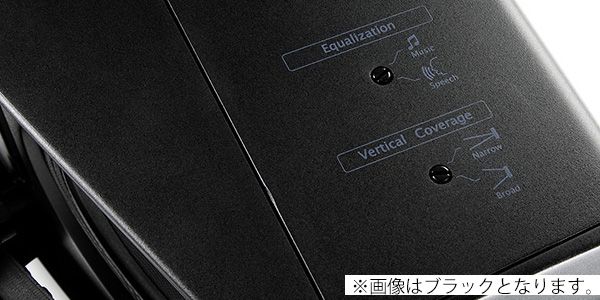

- Vertical dispersion can be set to 25° (Narrow) or 45° (Broad).
- Equipped with a Music/Speech switch that changes mid-range sensitivity.
- Wall mounting bracket with adjustable angle (up, down, left, right).

Frequency Range (-10dB): 60Hz to 20kHz
Dispersion Angle (-6dB):
Horizontal: 150° (500Hz to 8kHz, ±20°)
Vertical (switchable): Narrow: 25° (2kHz to 16kHz, ±10°) Broad: 45° (750Hz to 16kHz, ±10°)
Power Rating: 500W pink / 2,000W peak
Maximum Sound Pressure (1m):
Narrow: 125dB SPL (Speech mode, 131dB peak) 120dB SPL (Music mode, 126dB peak)
Broad: 123dB SPL (Speech mode, 129dB peak) 119dB SPL (Music mode, 125dB peak)
Driver Configuration:
LF 130mm x 4
HF 25mm x 16
■Sensitivity (2.83V@1m)

Narrow 98dB SPL (Speech mode, 1kHz-8kHz) 93dB SPL (Music mode, 300Hz-18kHz)

Broad 96dB SPL (Speech mode, 1kHz-8kHz) 92dB SPL (Music mode, 300Hz-18kHz)
■Nominal Impedance 8Ω
■Input Terminal Screw Terminal
■Finish ABS resin, black
■Dimensions (W x H x D) 170 x 694 x 237mm (excluding protrusions)
■Weight 9.5kg
■Accessories Wall mounting bracket
*1 IEC pink noise, crest factor 6dB, 2 hours
