SHURE / GLXD24/SM58

This handheld wireless system from Shure includes a GLXD4 wireless receiver and a GLXD2/SM58 handheld transmitter.

■Tuning Bandwidth: 2400-2483.5MHz
■Range: 60m (varies depending on conditions)
■Transmitter Mode: Frequency Hopping
■Dynamic Range: 120dB, A-weighted
■RF Sensitivity: -88dBm, Typical
■THD: 0.2%, Typical
■RF Transmit Power: 10mW E.I.R.P. Max
■Battery Life: Up to 16 hours

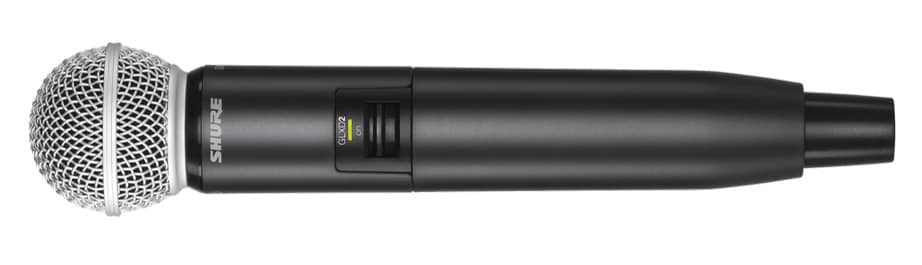

■GLXD2/SM58 Handheld Transmitter
■Maximum Input Level: 146dB SPL
■Exterior: Molded Plastic
■Power Supply: 3.7V Rechargeable Lithium-Ion
■RF Transmit Power: 10mW E.I.R.P. Max
■Dimensions: 51 x 251 x 37 mm
■Weight: 267g

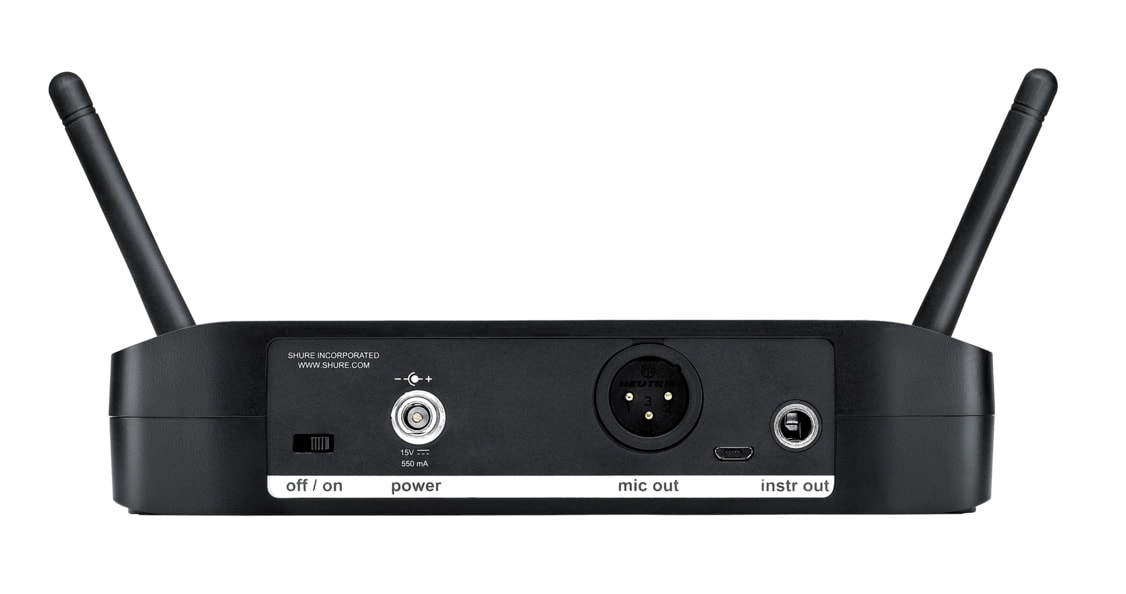

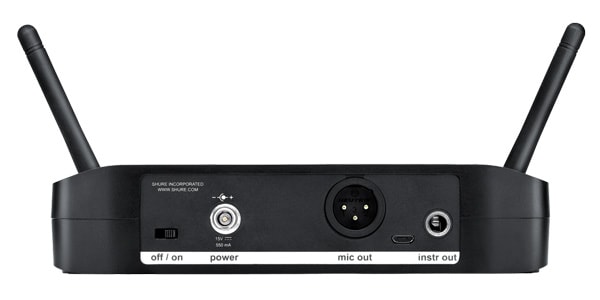

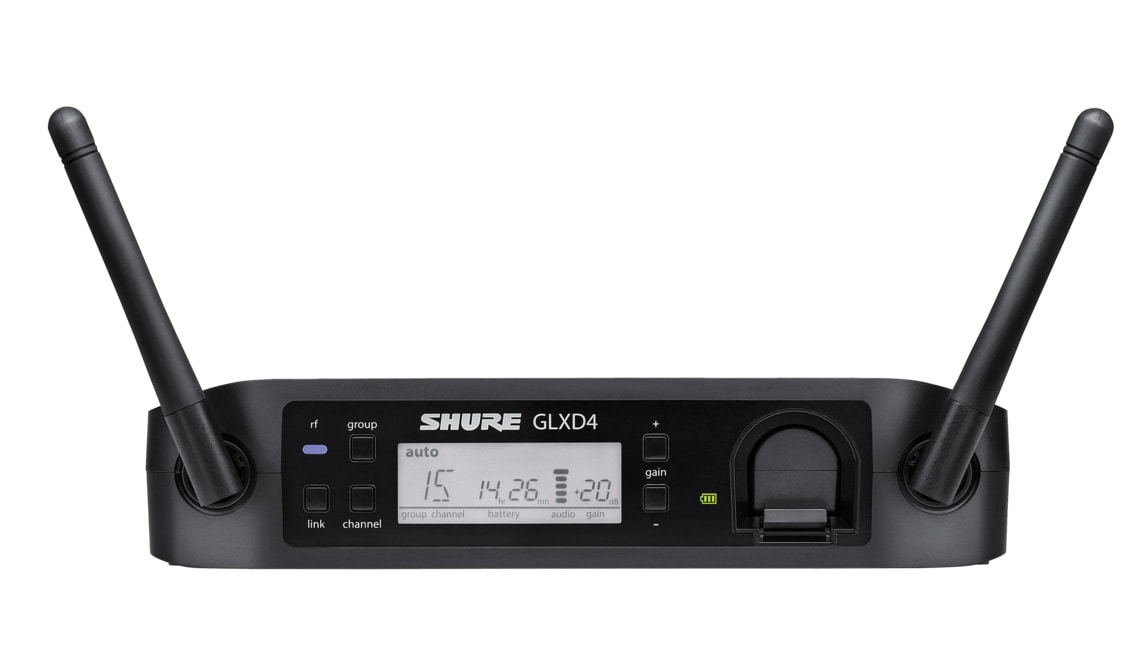

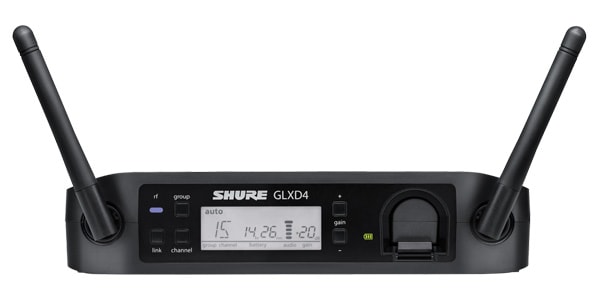

■GLXD4 Receiver
■Gain Adjustment Range: -20dB to 40dB in 1dB increments
■Output: XLR output (balanced), 6.35mm output (balanced)
■Impedance: XLR output 100Ω, 6.35mm output 100Ω
■Maximum Audio Output Level:
XLR connector (600kΩ load) +1dBV
6.35mm phone jack (3kΩ load) +8.5dBV
■Impedance: 50Ω
■Antenna Type: 1/2 wavelength sleeve dipole, fixed
■Maximum Input Level: -20dBm

◆Contents
GLXD4 wireless receiver, GLXD2/SM58 handheld transmitter (with SM58 cardioid dynamic microphone capsule), microphone clip, zippered padded carrying case, SB902 lithium-ion rechargeable battery, USB charging cable.
