JBL / Control CRV White Facility Speaker

The Control CRV White is a JBL facility speaker. It features a durable polyplastics cone. It has a 2-way configuration with two 4-inch woofers and a titanium-laminated dome tweeter. The bi-radial waveguide provides a wide directivity of 105° horizontally and 80° vertically, providing uniform sound across the coverage area. It is available in white.

■2-Way Full-Range Speaker System
■Frequency Range (-10dB)
80Hz to 20kHz (Half-Free Field, On-Wall)
60Hz to 20kHz (1/4 Free Field, Wall-to-Wall Junction)
■Nominal Impedance 4Ω
■Sensitivity (Half-Free Field) 89dB
■Maximum Sound Pressure 108dB SPL
■Dispersion Angle (H x V) 105° x 80° (2kHz to 16kHz, Vertical Configuration)
■Crossover Frequency 2kHz (HF: 36dB/oct, LF: 18dB/oct)
■Transformer Tap
100V 30W/15W/7.5W
70V 30W/15W/7.5W/3.8W
■Driver Configuration LF: 100mm x 2, HF: 19mm x 1
■ Power handling capacity* 150W program / 75W pink
■ Input connector Screw terminal
■ Enclosure ABS resin, black or white

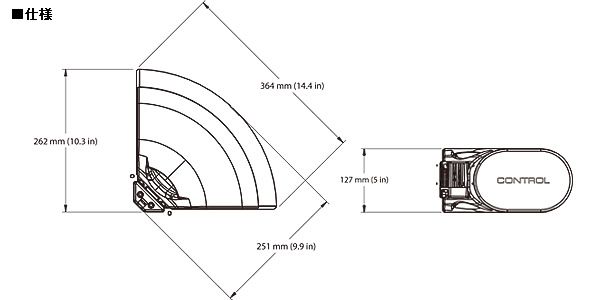

■ Dimensions (W x H x D) 364 x 127 x 262 mm
■ Weight 3.2 kg
■ Accessories Wall mounting bracket
