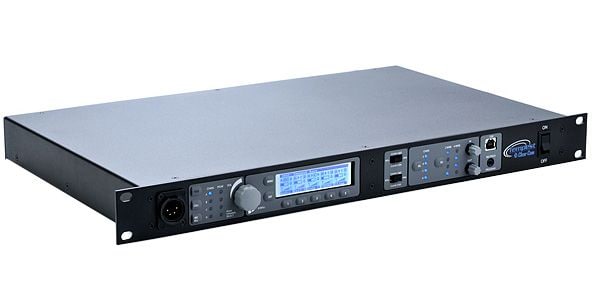

CLEAR-COM / CM-244

Tempest2400シリーズの4チャンネルベースステーションです。EIA 1Uラックマウントサイズです。

・EIA 1U rack mount size
・Direct connection between Clear-Com Party-Line series and Eclipse system is possible
・Remote antenna (CCT-RT) can be extended up to 450m (optional)
・You can check the level, channel, battery level, and radio wave condition of each belt station on the LCD display.
・Power supply supports 85v-260v AC or 11-32v DC
・SA output, AUX IN/OUT, 6 x Relay output, Base Sync In/Out connector equipped
・Equipped with XLR4 Clear-Com headset standard connector

■ Intercom audio channel: 4ch
■ Number of belt stations capable of full dual communication per base station: 5
■ Number of belt stations that can communicate on one side per base station: Unlimited (in share mode)
■ Number of base stations that can be synchronized: 10
■ How to pair the base station and belt station: Connect with a mini plug cable (included)
■ Transmission distance: Approximately 300m (line of sight without shielding) *It may be less than 300m depending on the usage environment.
■ System delay: 50ms (base station ⇔ belt station)
■ Size: 483 (W) x 44 (H) x 305 (D) mm EIA19 "1U
■ Power supply: AC85-264VAC 50/60Hz (power consumption 11W), DC11-32V (power consumption 12W)
■ Operating environment: Temperature -20 to +50°C/Humidity 10% to 90%
