SENNHEISER / 500466

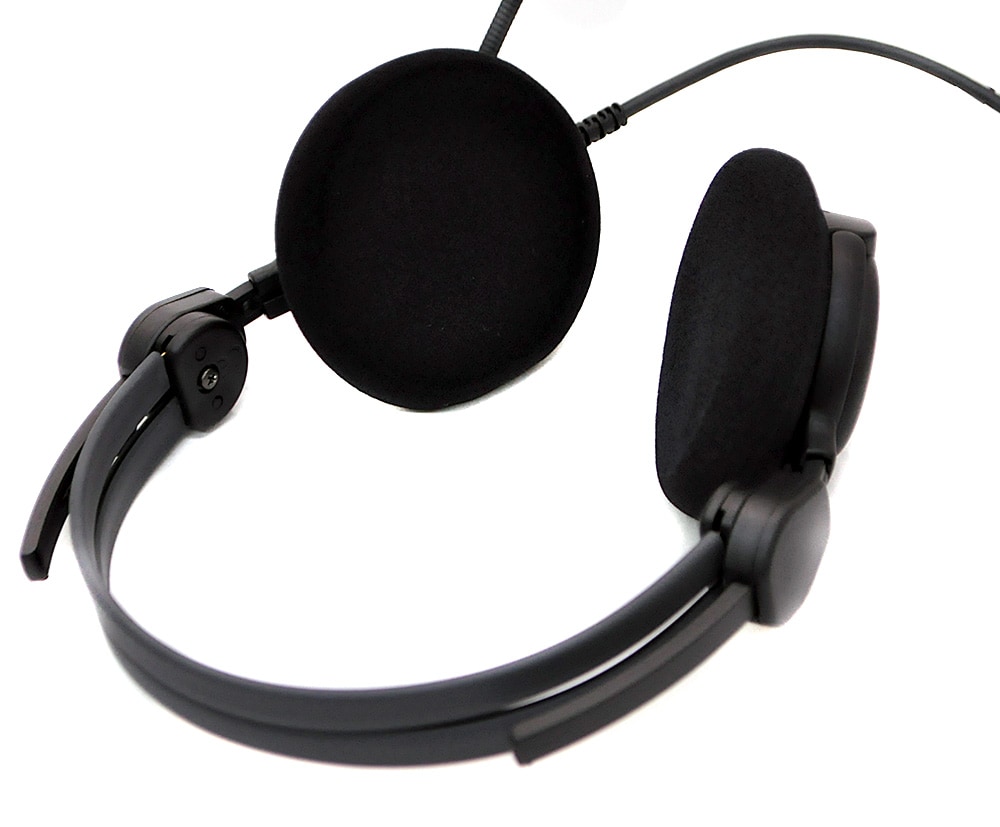

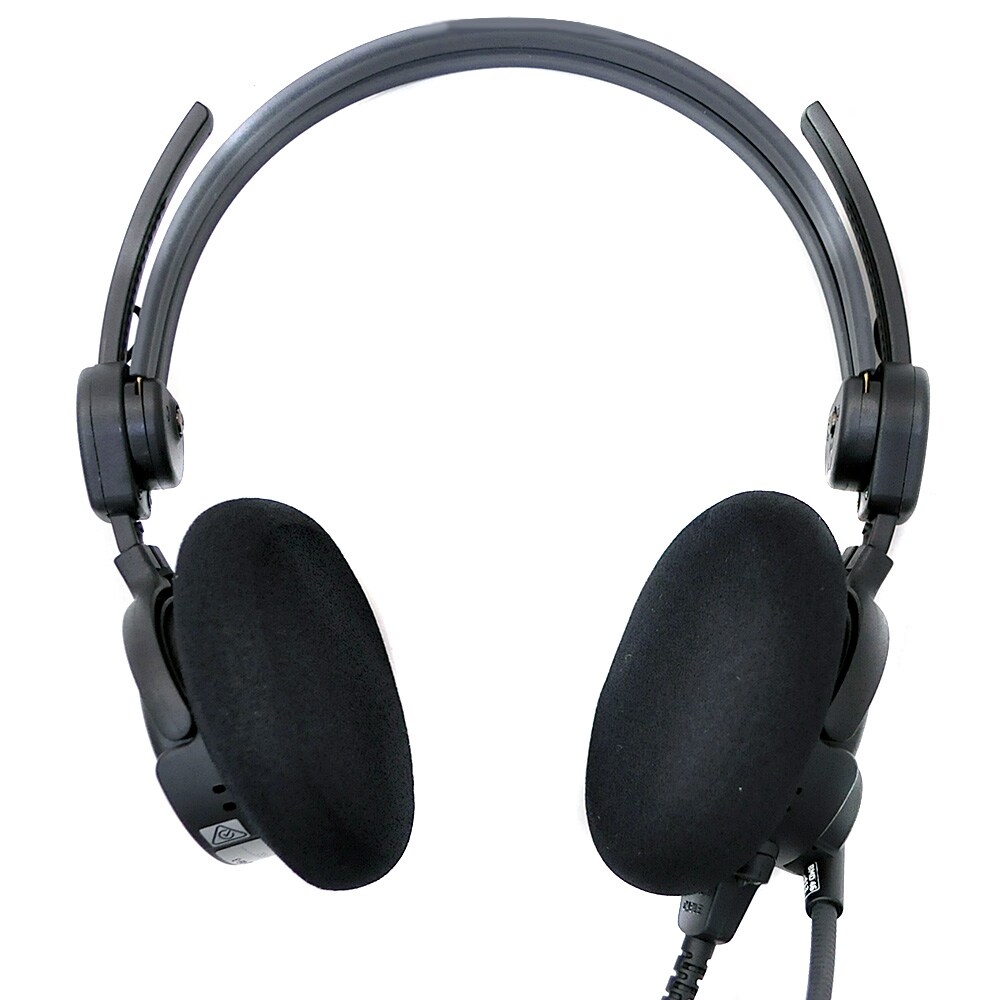

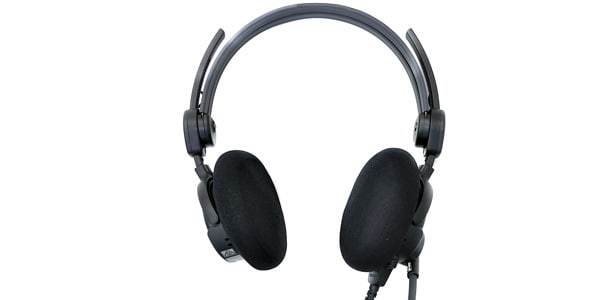

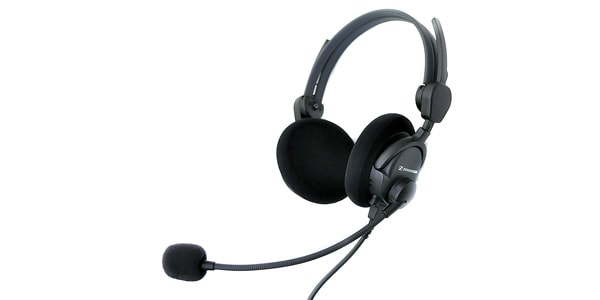

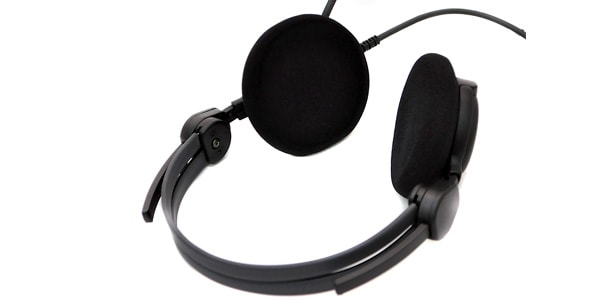

This professional headset combines a dynamic microphone with open-air headphones. The microphone is noise-canceling, providing clear sound quality.

[直輸入品][Direct Import]

Headphones
■Output Impedance: 300Ω
■Frequency Response: 20-14000Hz
■No Connector (Barred Ends)

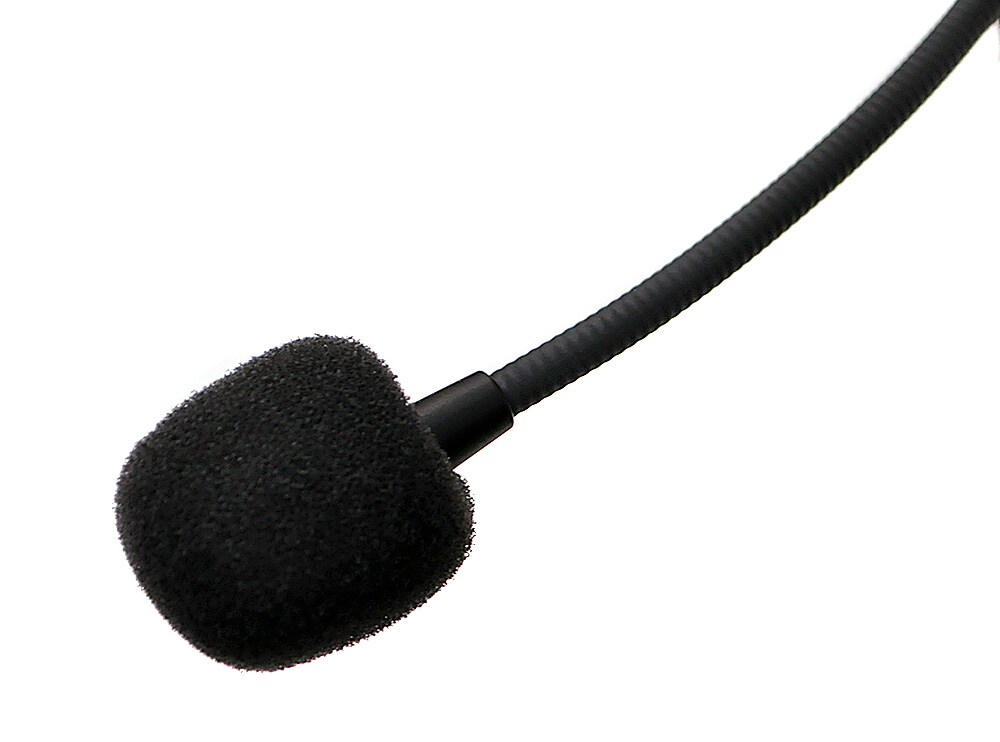

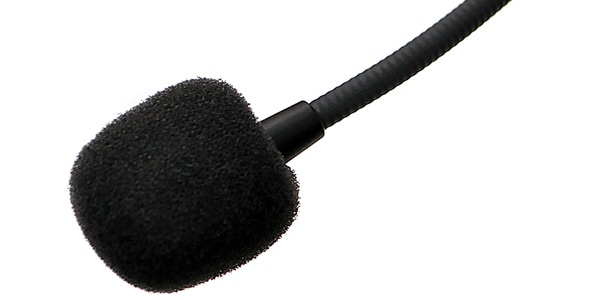

Microphone
■Type: Dynamic
■Directivity: Ultra-directional
■Frequency Response: 100Hz-12000Hz

■Recommended Operating Environment (Temperature): -15 to +55°C
■Recommended Storage Environment (Temperature): -55 to +70°C
■Weight: 150g

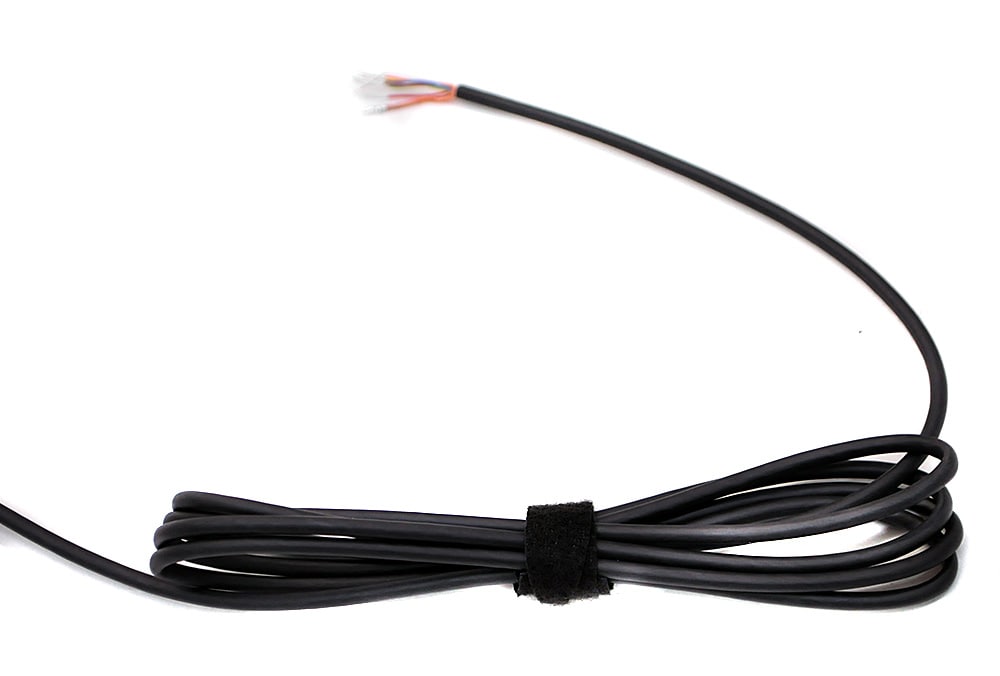

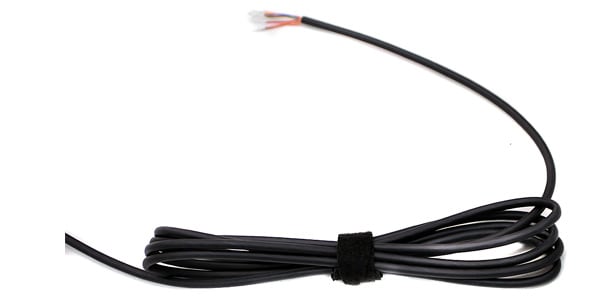

◯About Barred End Cables
You can connect the appropriate connector to the appropriate device.
This requires manual setup. The pin assignment is shown below.


White = Headphone L+ (hot)
Orange = Headphone R+ (hot)
Brown = Headphone L- (cold)
Green = Headphone R- (cold)
Yellow = Not connected
Red = Mic+ (hot)
Blue = Mic- (cold)
Shield


White = Headphone L+ (hot)
Orange = Headphone R+ (hot)
Brown = Headphone L- (cold)
Green = Headphone R- (cold)
Yellow = Not connected
Red = Mic+ (hot)
Blue = Mic- (cold)
Shield
