DIGICOM / GMF16

The GMF16 is a GPI-MIDI converter manufactured by DIGICOM. It provides 32 GPI inputs and 16 outputs. It is possible to create a controller with up to 16 channels of volume control and channel ON/OFF functionality.

■ GPI-MIDI Converter

The GMF16 is a unit that allows you to easily create a controller for digital devices equipped with MIDI terminals.

It provides 32 GPI inputs and 16 outputs, allowing you to connect commercially available variable resistors (faders), LEDs, and switches to create a controller with up to 16 channels of volume control and channel ON/OFF functionality.

For example, it can be used to expand the GPI functionality of Yamaha products such as the DME24N and 64, or for remote control of digital mixers.

The pinout is also compatible with control panels such as the Yamaha CP4SF.

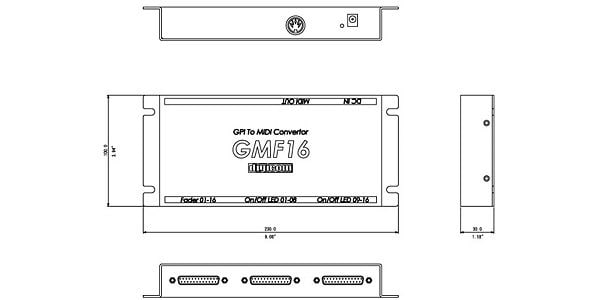

■ Specifications and Dimensions

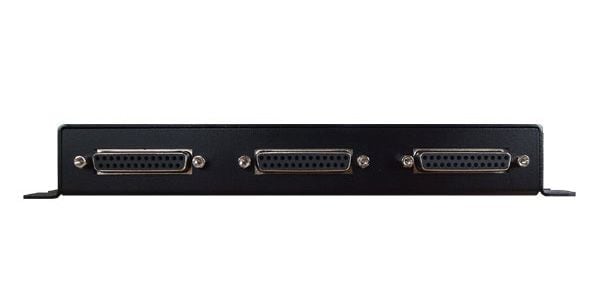

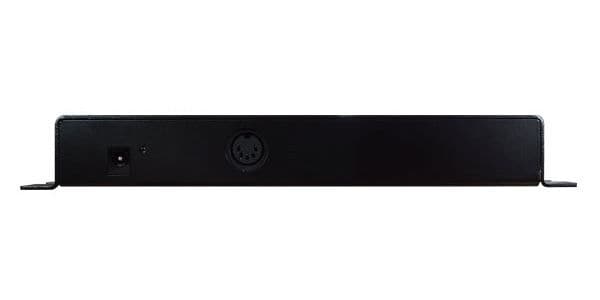

Input/Output: D-SUB 25PIN / MIDI

Power Supply Voltage: 9V

Maximum Current: 20mA/ch

Accessories: AC adapter

Weight: 1.0kg
