OYAIDE / F1

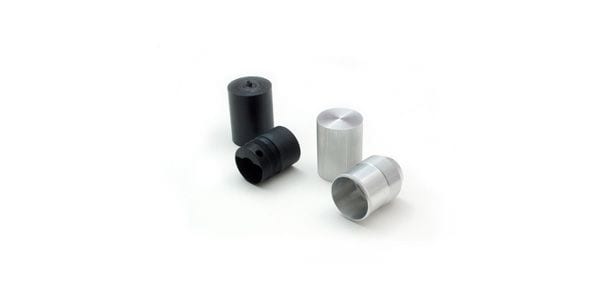

This power plug is manufactured by OYAIDE. The electrodes are made of beryllium copper and are double-plated with platinum and palladium. The inner housing is made of polyacetal, which combines excellent durability and electrical insulation. The outer housing is made of 50-series aluminum alloy and is crafted with exceptional precision. The polyacetal and aluminum housing boasts outstanding durability, excellent vibration damping, and noise resistance.

■IEC Connector
■Blade: Beryllium copper
■Plating: Two-layer plating with platinum (0.5μ) and palladium (0.3μ) after two-layer polishing
■Cable outer diameter: Minimum 6.5mm, maximum 17.0mm
■Maximum cable gauge: AWG10 (5.5sq)
■125V/15A specification, PSE certified
