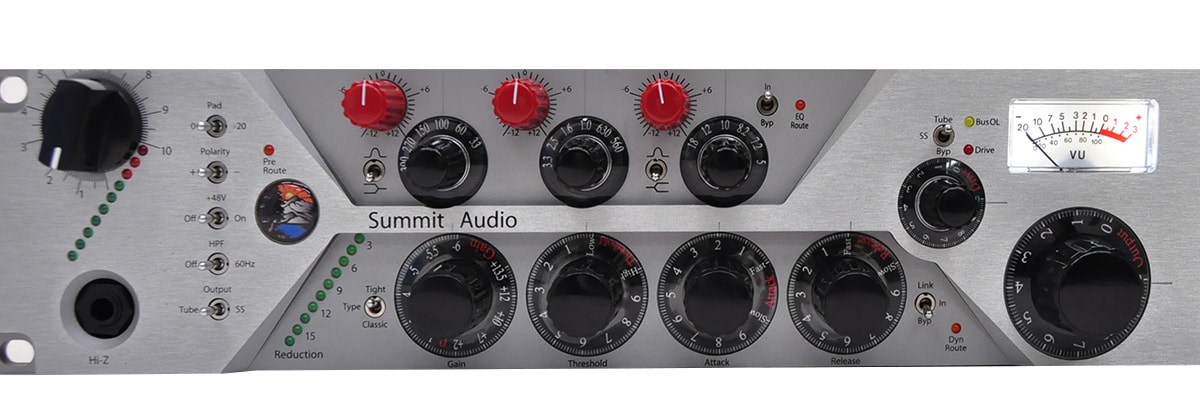

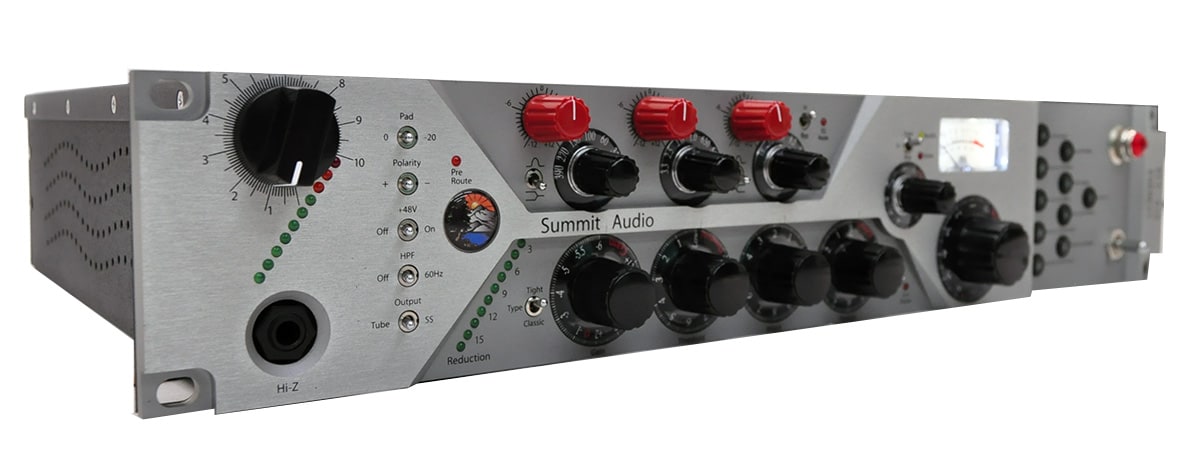

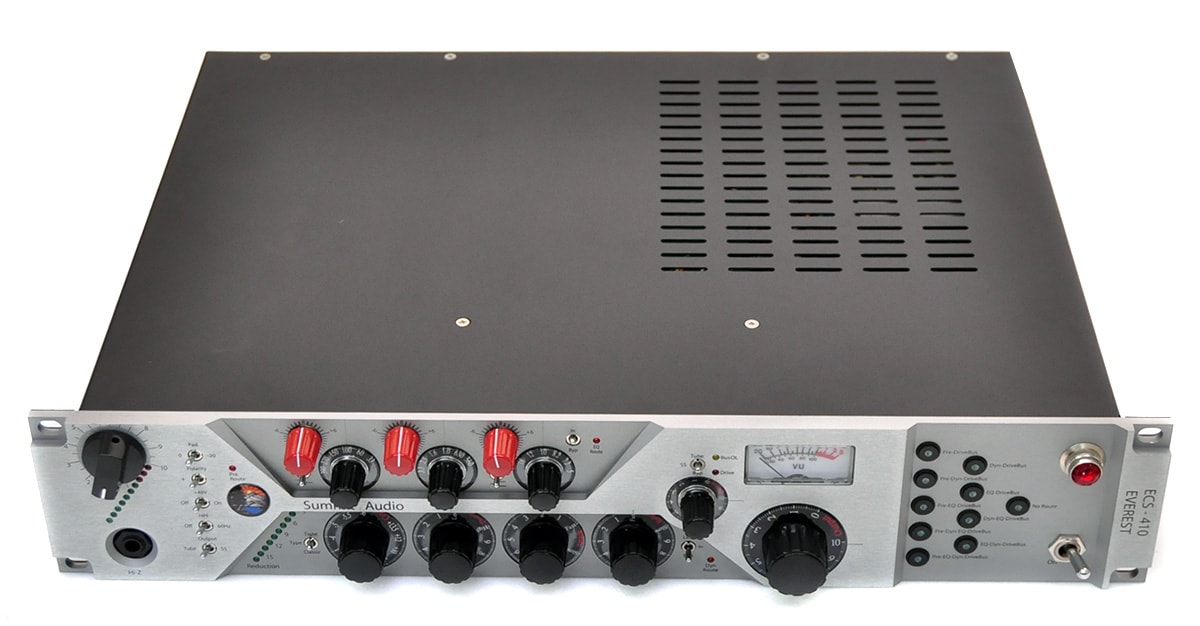

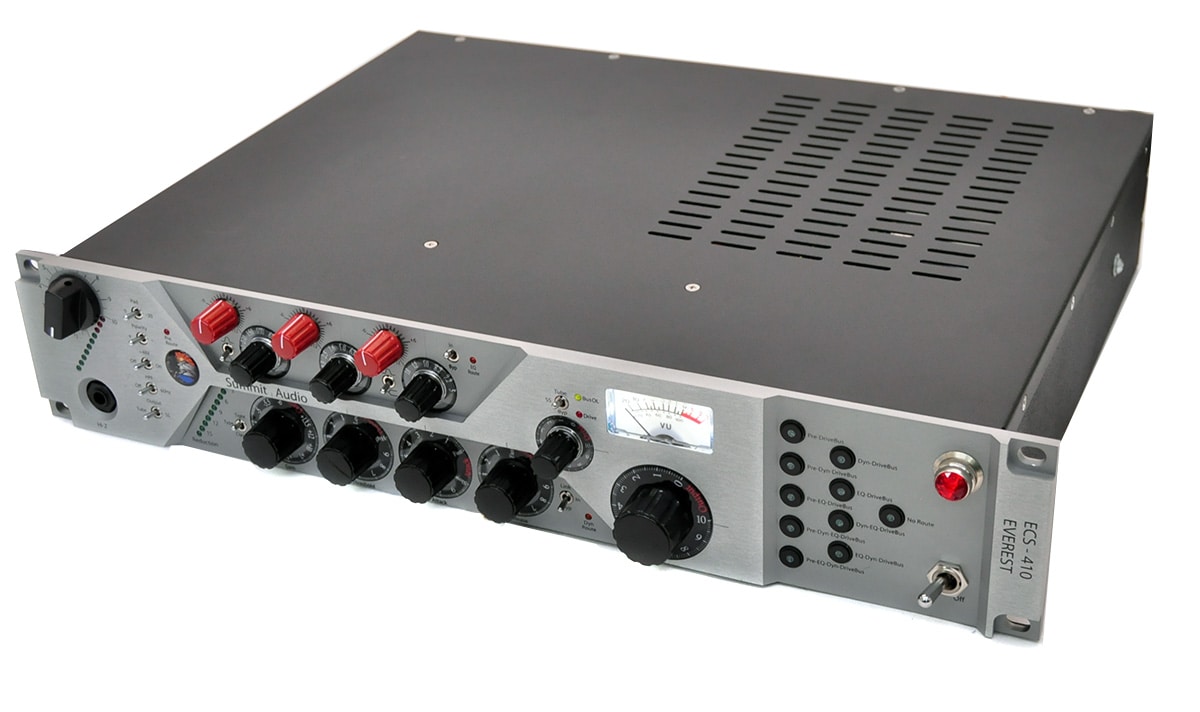

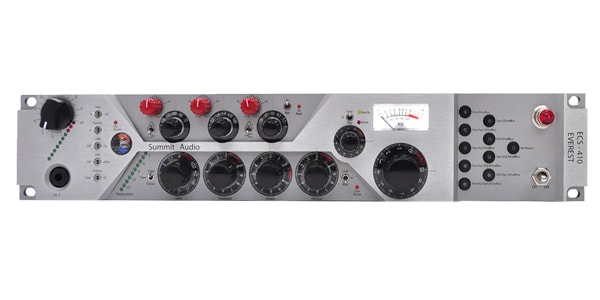

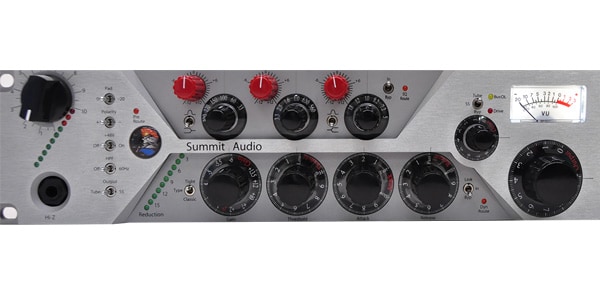

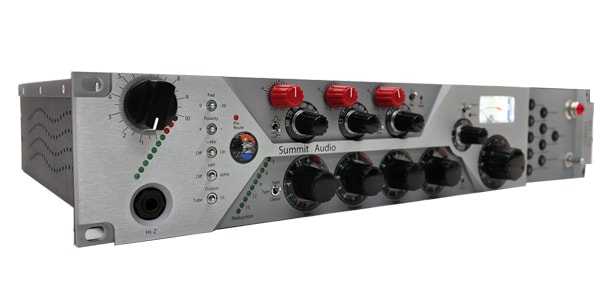

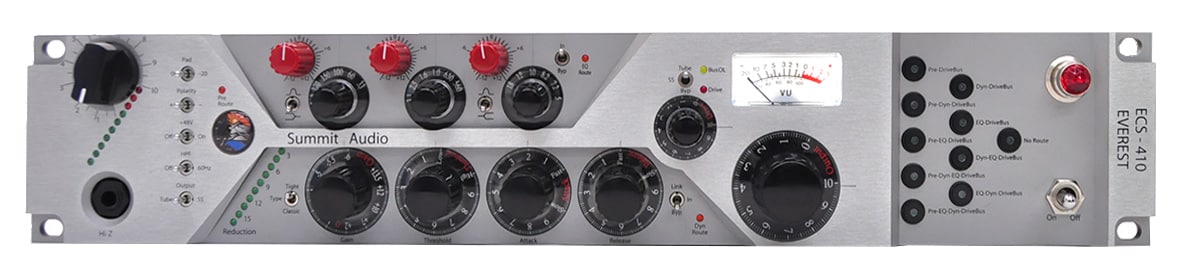

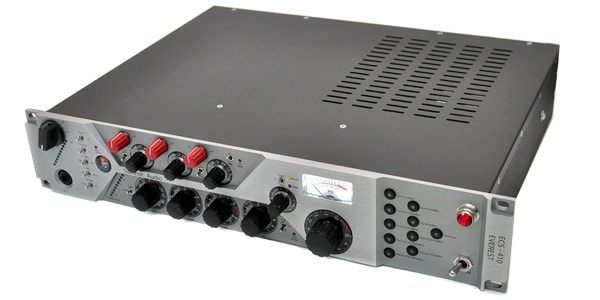

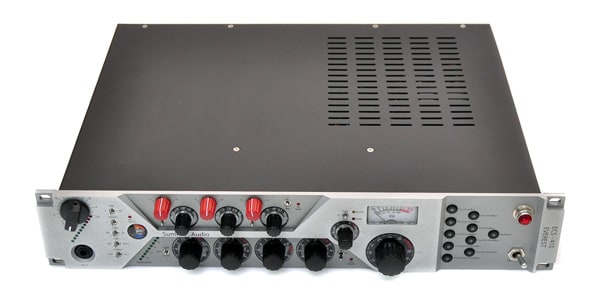

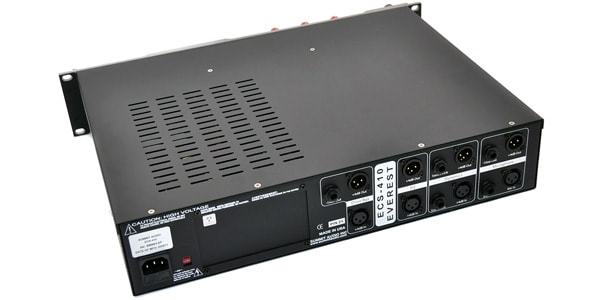

SUMMIT AUDIO / ECS410 Everest Channel Strip

Intuitive and flexible routing is realized instantaneously by integrating 4 types of processors into one unit and incorporating the revolutionary TouchPatch system. Expands the possibilities of sound creation to infinity. Equipped with Hi-Z input, also recommended as a preamp for musical instruments!

■ StripMz2 Microphone, Musical Instrument Preamplifier
Switchable to vacuum tube or solid state
Discrete transistor input
Built-in Jensen transformer
48V phantom power switch, polarity switch, 20dB pad, high pass filter
■ Fe1 passive EQ
Adopts LC circuit that has smooth frequency characteristics over a wide band with the warm sound unique to vacuum tubes
3 band frequencies can be switched to 6 frequencies from high / medium / low
High and Low are selectable for peaking and shelving
± 12dB cut / boost
With bypass switch
■ Dc1 Dual Dynamic Processor
Classic and tight compression modes
Gain reduction is a 10-stage LED meter
Controls are gain, threshold, attack, and release
With bypass switch
Equipped with stereo link input / output and side chain circuit
■ Db2 drive bus
Drive control by multi-gain
Selectable dual tube signal path and individual transistor inputs
Variable from sound faithful to the original sound to overdrive (vacuum tube or transistor)
With analog VU meter
■ TouchPatch routing system
Scheme button set for each route
The switching speed is very fast, and the switching sound is quiet.
Microprocessor that does not generate noise
You can select a route that passes or does not pass through the mic pre.
At the time of "No Route", it can be used as four independent processors.
■ No.2 hot

[Mz2 microphone preamp]
■ Maximum gain: + 60dB (Db2 through, + 20dB)
■ THD + N: 0.008%(A-weighted)@+30dB
■ Maximum output: + 25dB
■ Frequency characteristics
・ Solid: 10Hz-300kHz ± 2dB, 15Hz-200kHz ± 0.5dB
・ Tube: 15Hz-159kHz ± 2dB, 15Hz-70kHz ± 0.5dB
■ Input impedance: 2kΩ
■ Hi-Z impedance: 10MΩ
■ 12AX7A vacuum tube or discrete transistor
■ 60Hz 6dB / oct high pass filter
■ 10 segment LED
■ Supports +48 phantom power
■ -20dB pad
■ Phase: 0 or 180

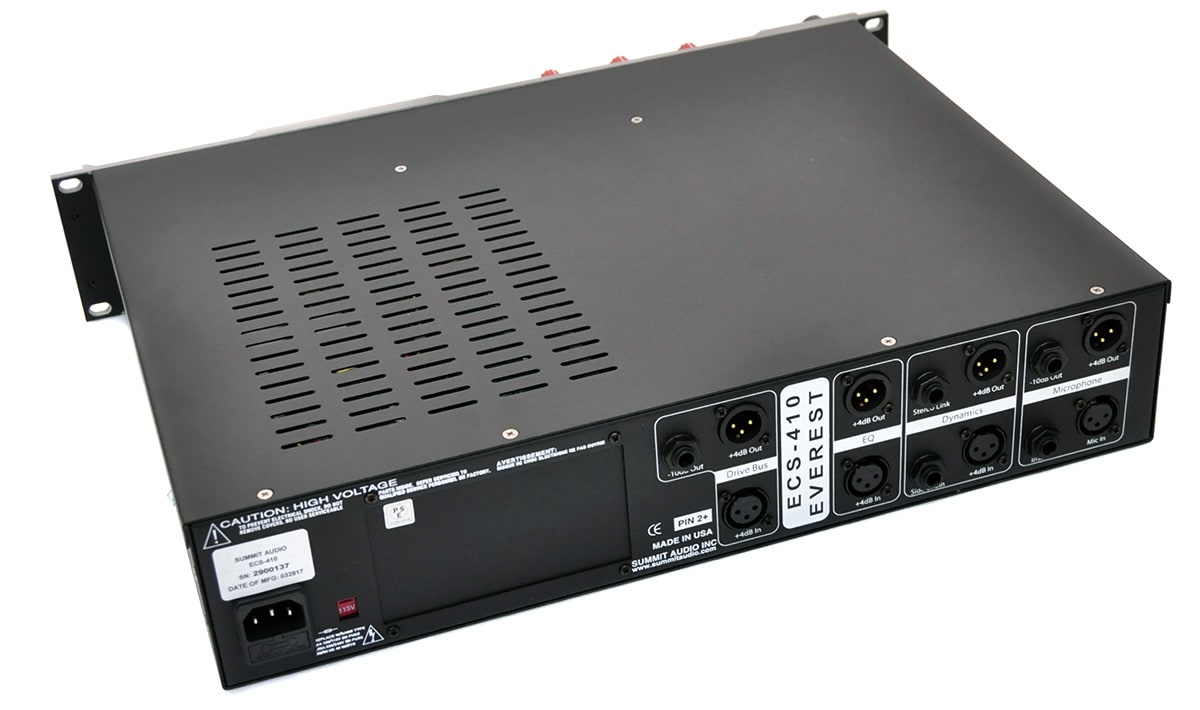

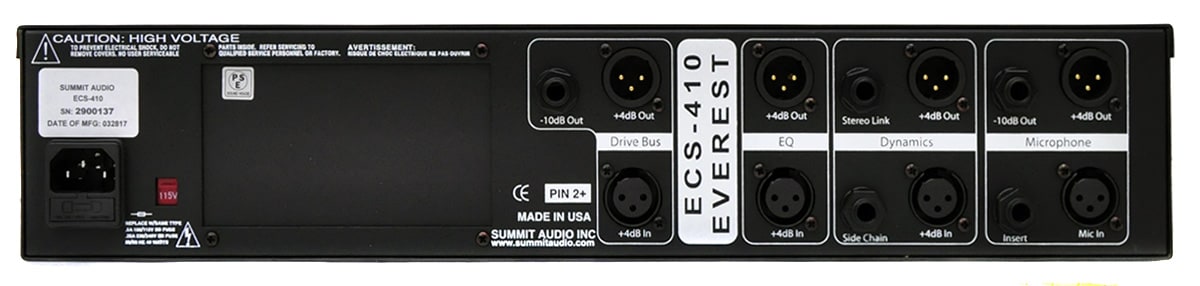

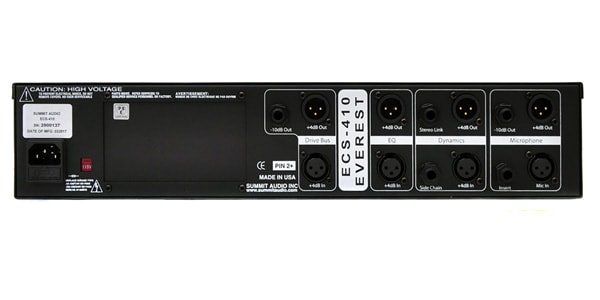

Input: XLR, 1/4 unbalanced phone (Hi-z)
Output: XLR (+ 4dBu), 1 / 4TRS phone (-10dBu)

【Fe-1 3 band equalizer】
■ THD + N: 0.009% ■ + 4dB (A-weighted)
■ Frequency characteristics: 5Hz-100kHz ± 0.5dB, 5Hz-200kHz ± 2dB
■ Frequency ± 12dB
・ LOW: 33/60/100/150/270/390 (peak or shelf)
・ MID: 560/630 / 1k / 1.6k / 2.5k / 3.3k
・ HIGH: 5k / 7.2k / 8.2k / 10k / 12.5k / 16k (peak or shelf)
■ Input / output: XLR (+ 4dBu)

[Dc-1 dual mode compressor]
■ THD + N: 0.025% + 4dB (A-weighted)
■ Frequency characteristics: 5Hz-136kHz ± 0.5dB, 5Hz-200kHz ± 2dB
■ Gain: -4dB or + 10dB
■ Attack: 4mS-100mS
■ Release: 50mS-1S
■ Ratio: TIGHT (3: 1), CLASSIC (10: 1)
■ Gain reduction 10 segment LED
■ Input / output: XLR (+ 4dB), 1/4 side chain, 1/4 stereo link

[Db-2 drive bus master output, overdrive]
■ THD + N: Bypass: 0.002%, Tube: 0.3%, Solid: 0.013%
■ Frequency characteristics:
・ Tube: 5Hz-50kHz ± 2dB, 5Hz-25kHz ± 0.5dB
・ Solid: 5Hz-200kHz ± 2dB, 5Hz-130kHz ± 0.5dB
■ Gain: + 20dB
■ Type: Tube (12AX7A), discrete transistor
■ Analog VU meter (output level)
■ Input / output: XLR (+ 4dBu), 1 / 4TRS phone (-10dB)

[Common]
■ Size: 48.3 × 8.9 × 43.1cm
■ Weight: 11.78 kg
■ Power supply: 100VAC-240VAC
