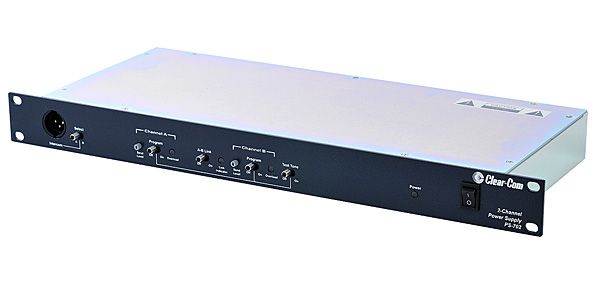

CLEAR-COM / PS-702

This is a 2-channel power supply for the Encore series made by CLEAR-COM.

[直輸入品][Direct Import]

[Program Amplifier]
Input Impedance: 100KΩ or greater
Input Level: -20dBV
Frequency Response: 150Hz-18KHz ±2dB
[Power Supply]
Output Voltage/Current: 30V DC/2.25A Max (2A/channel Max)
Output Noise: -70dBV or less
[Connectors]
Intercom Line: XLR-3-32 (3 inputs per channel)
External Program Input: 1/4"" TRS phone jack
[General Specifications]
Termination Impedance: 200Ω
Channel Separation: 50dB or less (at 150m)
Operating Voltage: 90-240VAC/50-60Hz
Power Consumption: 60W
Operating Temperature: 0-50°C
Number of Connectable Stations: 10 speaker stations or 40 beltpack stations
Dimensions (mm): excluding protrusions 483 (W) x 44 (H) x 190 (D), EIA19""
Weight: 2.80kg
