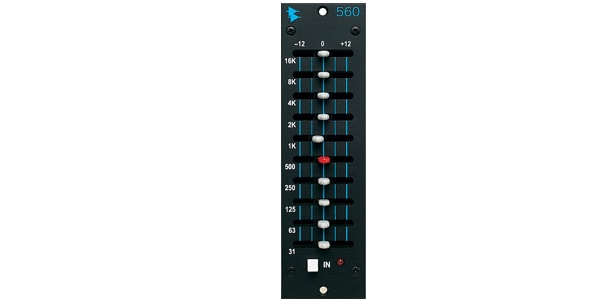

API / 560

A 10-band equalizer that delivers the operability and sound quality unique to API. A faithful reproduction of the 560 released in 1969. Features a noiseless bypass switch.

■ Graphic EQ Module, Reissue

■ 10-band equalizer delivering API's signature operability and sound quality

■ Easy-to-use controls in 1-octave increments

■ ±12dB boost/cut for each band

■ ""Proportional Q"" circuit handles steep peaks

■ Center-click type fader controller

■ API's traditional fully discrete circuit design

■ Noiseless bypass switch

■ Faithful reproduction of the 560 released in 1969

■ Input Impedance: 20kΩ

■ Output Impedance: <85Ω

■ Operating Level: -15dBu to +15dBu

■ Clipping Level: >+28dBu

■ Noise: <-95dBu (EQ out), <-90dBu (EQ in)

■ Frequency Response: 30-20kHz (+0dB/-0.25dB)

■ Distortion Rate: <0.05% (+20dBu output)

■ Number of Bands: 10

■ Filter Type: Proportional Q

■ Filter Boost & Cut: ±12dB

■ Filter Slope: 12dB/oct (Full Boost & Cut)

■ Filter Center Frequencies: 31, 63, 125, 250, 500, 1k, 2k, 4k, 8k, 16kHz

■ Dimensions: W38×H133×D152mm

■ Weight: 805g

The 560 was developed for use with API mixing consoles from the 1960s and 70s, and after its reissue, it has been praised as a unit that accomplishes tasks that no other equalizer can do. Its ""one-of-a-kind"" API sound is delivered through easy operation, high headroom and precise filtering, and a very compact package. With zero-click faders, quick resets are possible, and the sound itself is unparalleled. From home recording to studio recording, this ""old yet new"" equalizer unit faithfully reproduces the best of the original 560. In particular, the sonic characteristics around ±4dB have been greatly improved by injecting modern technology. This unit, which employs API's characteristic all-discrete circuitry and dedicated components (the traditional original op-amp 2520), is a product that truly fuses past achievements with current technology. The 560 is designed to be useful in all situations for professional engineers. This user-friendly graphic equalizer was used in all recording consoles manufactured by API from the 70s to the 80s. Its performance was ideal in both studios and live stages. This reissued unit faithfully reflects the original design drawings of the time, and is designed with the latest modern technology. The 10-band controller in the 560 is an excellent tool for audio sweetening and sound field correction, working seamlessly with parametric equalizers. Like other API equalizers, the 560 features a ""proportional Q"" design, allowing for wider or narrower bandwidths, resulting in finer adjustments than a typical controller. Boost and cut characteristics remain consistent, making it easy to reproduce past settings. The exceptional headroom of the original 2520 op-amp delivers superb analog processing. When mounted in a rack or lunchbox dedicated to the 500 series, it reliably performs its job in any demanding professional environment. The 560's use of original 2510 and 2520 op-amps guarantees exceptional reliability, long life, and stable operation.
