Revv Amplification / 109710

Variations

Rev Amplification, a high-end amp and effect brand from Canada, has released the D20, an all-tube guitar amp head that can be used for a wide range of purposes, from small live performances to home practice and desktop recording. The D20 is a so-called pedal platform amp that focuses on clean to crunch tones in a lightweight, small-sized body, and has a switchable output of 4W/20W.

■Output (Peak): 10W@4Ω, 5W@8Ω 50W@4Ω, 25W@8Ω
■Output (RMS): 3.8W@4Ω, 3.7W@8Ω 19.4W@4Ω, 19W@8Ω
■Vacuum tubes used: 12AX7×2, 6V6×2
■Controls:

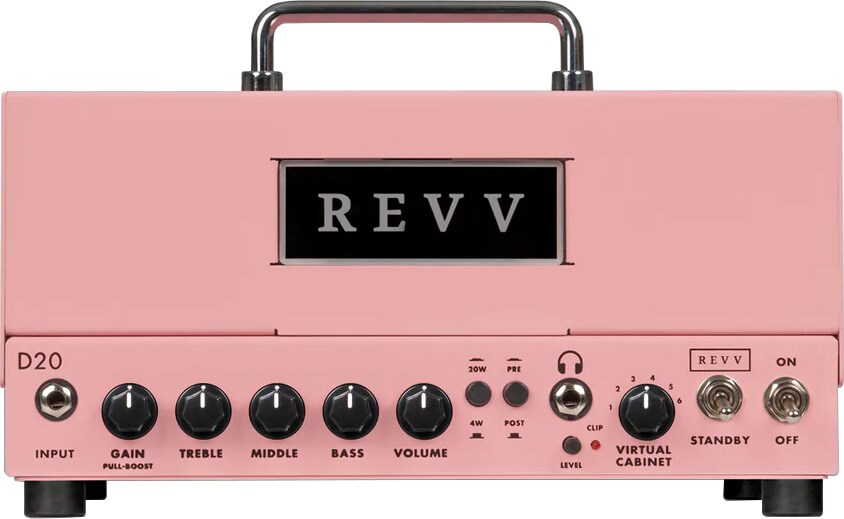

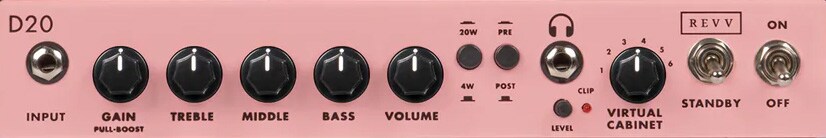

[Front Panel] Gain (Pull - Boost), Treble, Middle, Bass, Volume, 20W/4W Switch, Pre/Post Switch, Level, Virtual Cabinet, Standby Switch, ON/OFF Switch

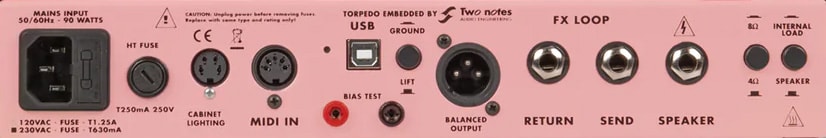

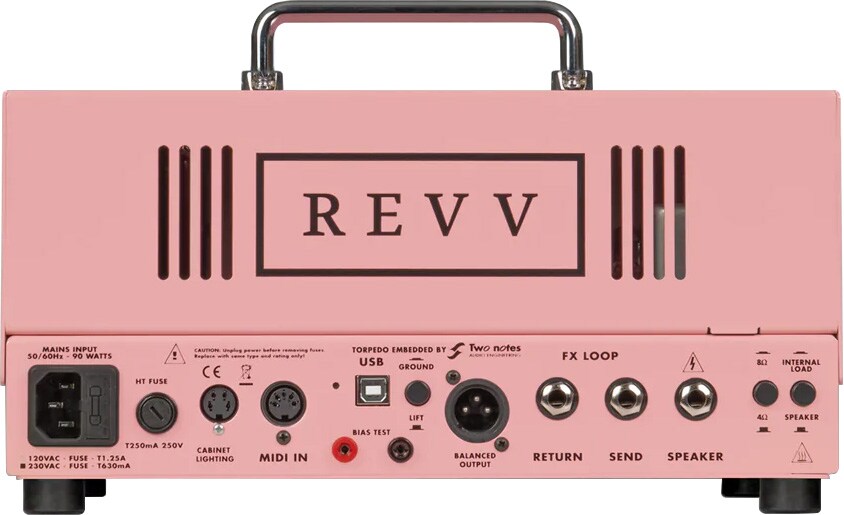

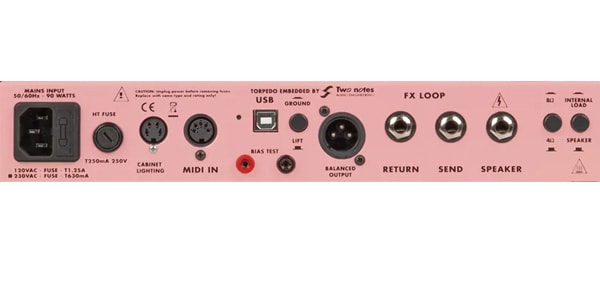

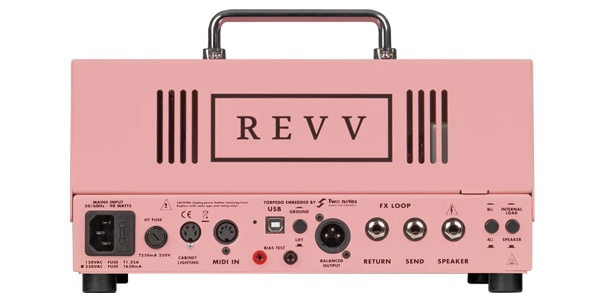

[Rear Panel] Ground/Lift Switch, Impedance(8Ω/4Ω) Switch, Internal Load/Speaker Switch
■Input/Output Terminals:
[Front Panel] Input, Headphone Out
[Rear Panel] Power Input, Cabinet Lightning, MIDI IN, USB, Bias Test, XLR Balanced Output, FX loop (Send, Return), Speaker(1/4”)
■Tone control range: [Bass] ±15dB @110Hz, [Midrange] ±9.6dB@550Hz, [Treble] ±19dB @10kHz
■S/N ratio: 37dB (standard)
■Compatible power supply: 100VAC, 50/60Hz
■Size: H168 × W308 × D165mm (including protrusions, handle height when folded)
■Weight: Approx. 3.8kg
■Shell pink
