· Monitor controller with the highest quality components
-Switch between two speaker pairs
・ Subwoofer can be turned on and off (A channel)
-Two analog stereo inputs and one USB digital input
・ Three monitoring modes: Stereo / Mono / Channel Swap
-USB connection is class compliant, no driver installation required for Mac and iOS devices (via Apple USB camera adapter)
・ Windows PC requires driver download
・ Equipped with premium AK4490 converter
-USB 32-bit DA / AD that supports up to 768kHz PCM and DSD 256
-Class-AB output compatible with a wide range of headphones
・ Equipped with Crossfeed function of Phonitor Matrix
・ 12V power supply
-Secondary internal power supply that achieves a maximum input gain of +22.5 dB

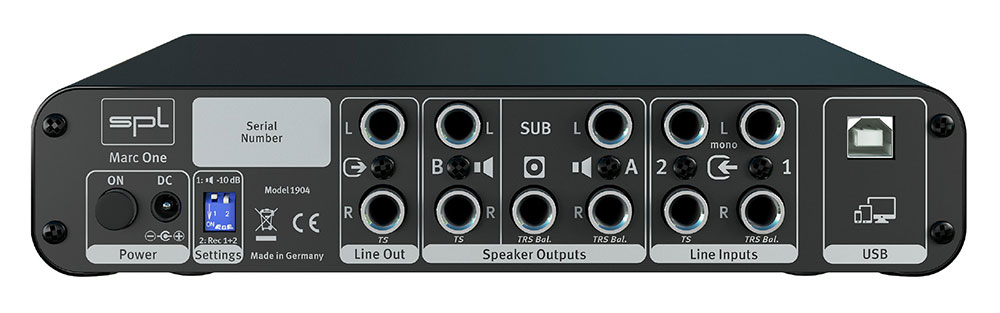

Analog inputs & outputs; 6.35 mm (1/4 ") TRS Jacks
Input gain (max): +22.5 dBu
Line Input 1 (balanced): Input impedance: 20 kΩ
Line Input 1: Common mode rejection: <60 dB
Line Input 2 (unbalanced): Input impedance: 10 kΩ
Output gain (max.): Speaker Outputs (600 Ω): +22 dBu
Line Output (unbalanced): Output impedance: 75 Ω
Speaker Output 1 (balanced): Output impedance: 150 Ω
Sub Output low filter: none (full range)
Sub Output (balanced): Output impedance: 150 Ω
Speaker Output 2 (unbalanced): Output impedance: 75 Ω
Frequency range (-3dB): 10 Hz --200 kHz
Dynamic range: 121.5 dB
Noise (A-weighted, 600 Ω load): -99 dBu
Total harmonic distortion (0 dBu, 1 kHz): 0.002%
Crosstalk (1 kHz): <75 dB
Fade-out attenuation: -93 dB


USB (B), PCM sample rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 / 352.8 / 384 / 705.6 / 768 kHz
USB (B), DSD over PCM (DoP), sample rates: 2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to: 15 dBu
Noise (A-weighted, 44.1 / 48 kHz sample rate): -113 dBFS
Dynamic range (44,1 / 48 kHz sample rate): 113 dB
THD + N (-1 dBFS, 10 Hz -22 kHz): 0.0012%


Wiring: Tip = Left, Ring = Right, Sleeve = GND
Source impedance: 20 Ω
Frequency range (-3 dB): 10 Hz --200 kHz
Noise (A-weighted, 600 Ω): -97 dBu
THD + N (0 dBu, 10 Hz -22 kHz, 600 Ω): 0.002%
THD + N (0 dBu, 10 Hz -22 kHz, 32 Ω): 0,013%
Max output power (1 kHz, 600 Ω): 2x 190 mW
Max output power (1 kHz, 250 Ω): 2x 330 mW
Max output power (1 kHz, 47 Ω): 2x 400 mW
Fade-out attenuation (600 Ω): -99 dB
Crosstalk (1 kHz, 600 Ω): -75 dB
Dynamic range: 117 dB


Operating voltage for analog audio: +/- 17 V
Operating voltage for headphone amplifier: +/- 19 V
Operating voltage for relays and LEDs: +12 V
Operating voltage for digital audio: +3.3 V, +5 V


AC / DC switching adaptor: Mean Well GE18 / 12-SC
DC plug: (+) pin 2.1mm; (-) outside ring 5.5mm
Input: 100 --240 V AC; 50 --60 Hz; 0.7 A
Output: 12 V DC; 1.5 A


W x H x D (width x height incl. Feet x depth): 210 x 49.6 x 220 mm
Unit weight: 1.55 kg
Shipping weight (incl. packaging): 2 kg
Reference: 0 dBu = 0,775V. All specifications are subject to change without notice.
