YAMAHA / DTX562KUPGS

Variations

The DTX562KUPGS uses DTX-PAD for all pads, including the snare and toms. It is equipped with the up-down movable real hi-hat pad ""RHH135"" and the cymbal pad ""PCY135"" that can hit three zones: cup, bow, and edge. It provides a full-fledged feel and playability. In addition, the set includes a double chain drive single foot pedal ""FP8500C"" and a second crash cymbal pad ""PCY95AT"", making it a complete set.

■Electronic drum set
■DTX502 series
■Kick pedal and throne included
■2 crash cymbals included
■Set contents

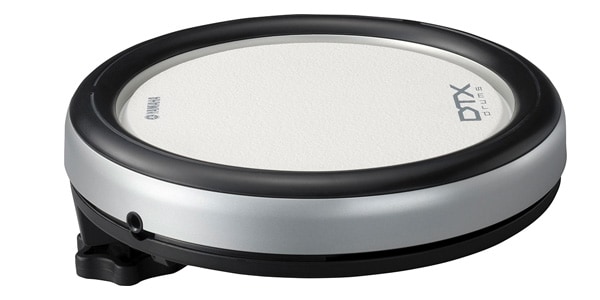

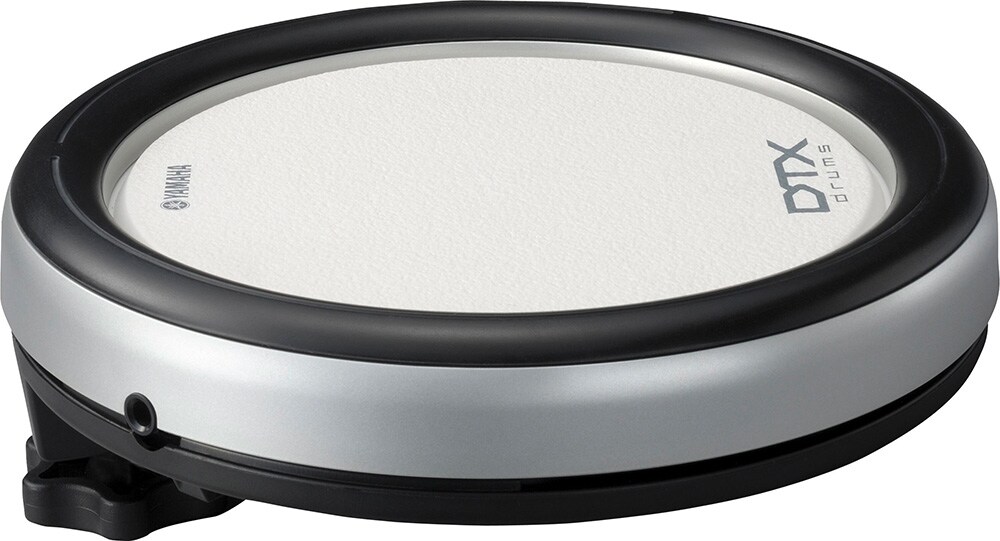

Snare: XP80 x 1

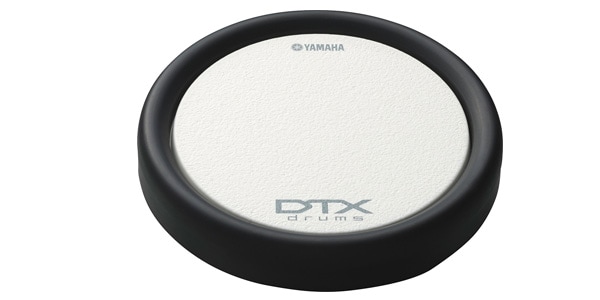

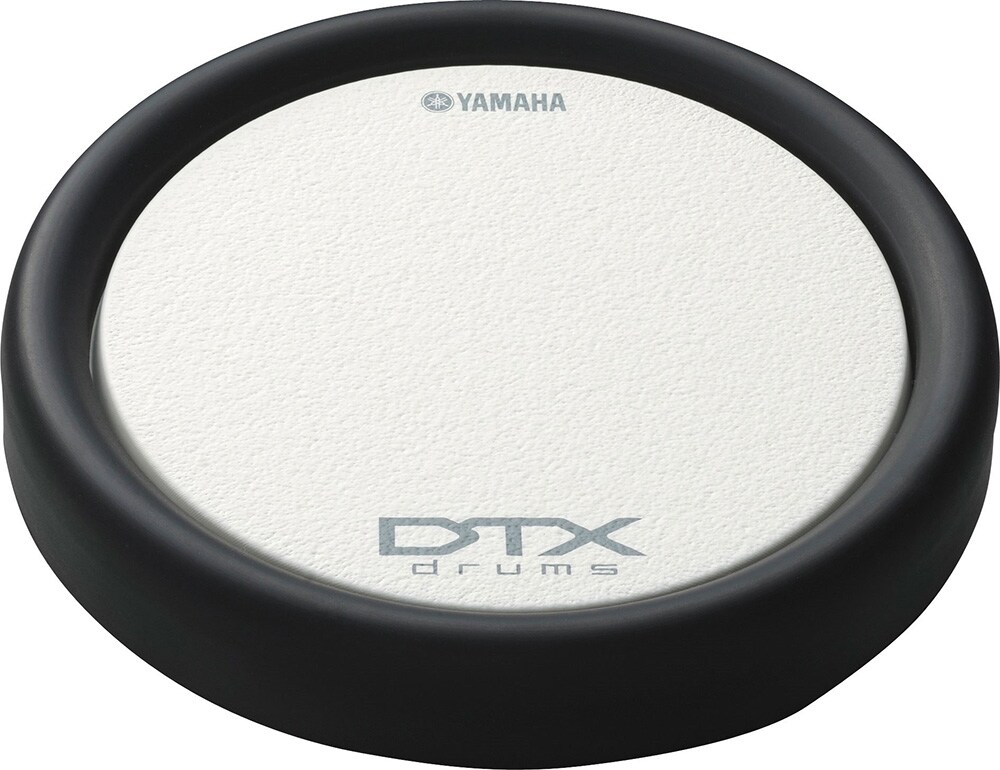

Tom pad: XP70 x 2
Floor tom pad: XP70 x 1

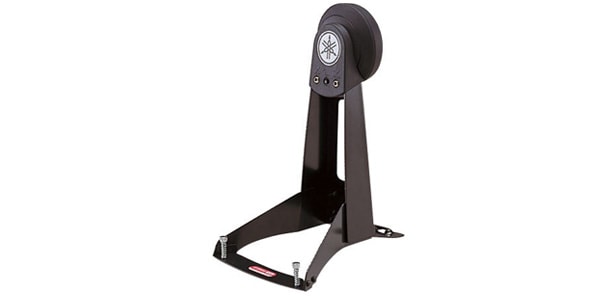

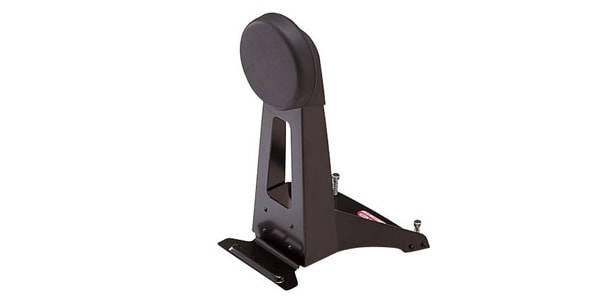

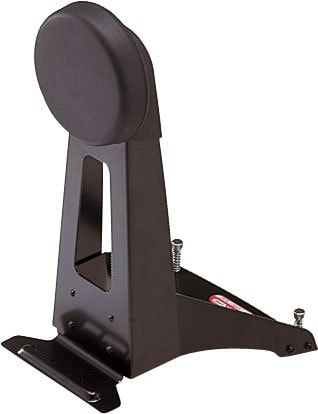

Kick pad: KP65 x 1

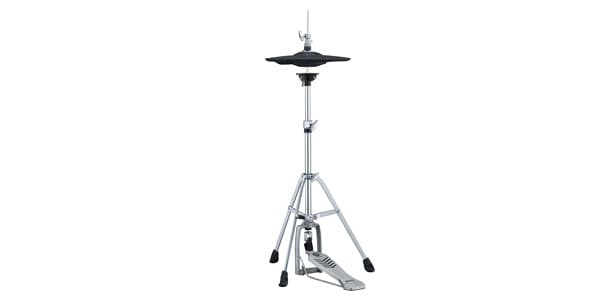

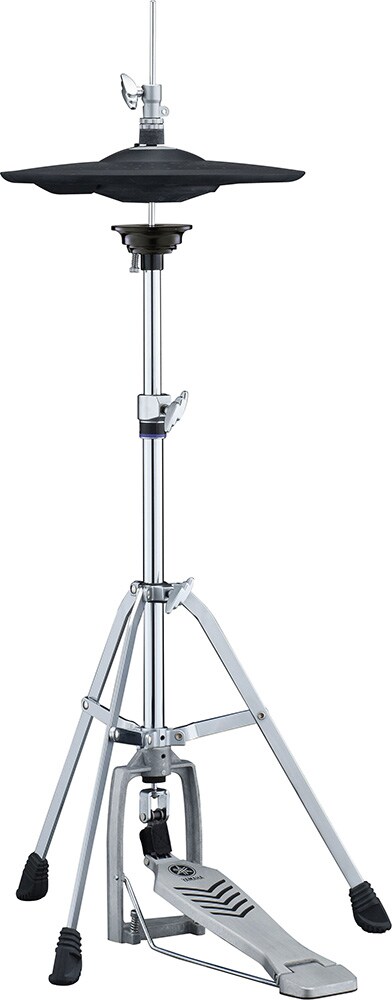

Hi-hat pad: RHH135 + HS650A
Crash cymbal: PCY135 x 1
Crash cymbal 2: PCY95AT x 1
Ride cymbal: PCY135 x 1
Rack system: RS502 x 1

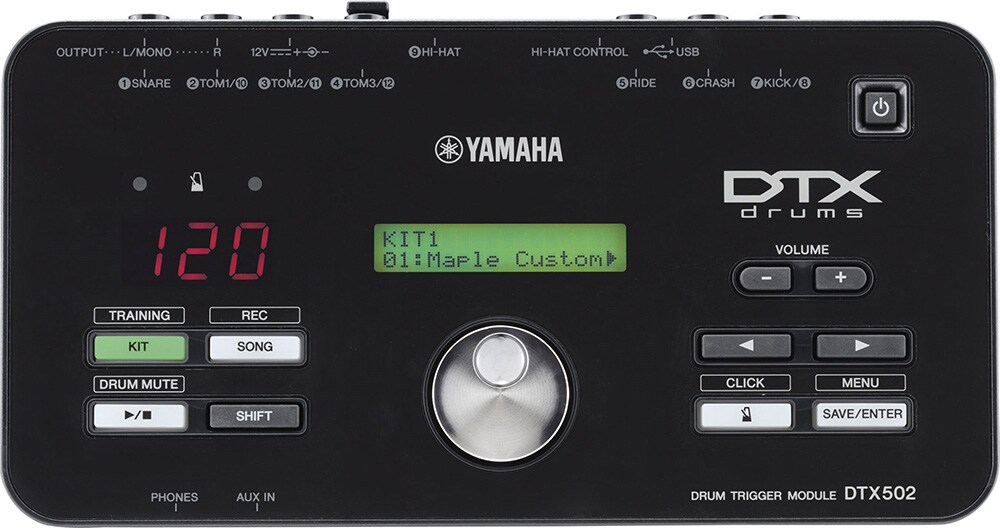

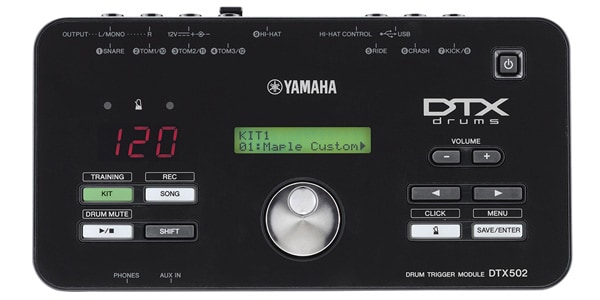

Drum trigger module: DTX502 x 1
Foot pedal: FP8500C

Drum stool: DS550U
Hi-hat stand: HS650A

Accessories: Tuning key, connection cable (9ch multi-cable)

Module
...

・Note resolution 96 resolution per quarter note

・Recording method Real-time

■Click
・Number of user clicks: 30

・Tempo: 30-300/min, tap tempo function

・Beat: 1/4-16/4, 1/8-16/8, 1/16-16/16

・Timing: accent, quarter note, eighth note, 16th note, eighth note triplet

■Metronome
・Tempo: 30-300, tap tempo function, accent, quarter note, eighth note, 16th note, triplet

■Other
・Display: 16 characters x 2 lines backlit LCD, 3-digit 7-segment LED, 2 LEDs for checking tempo

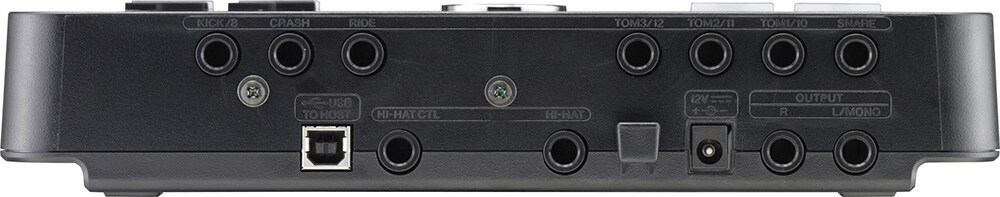

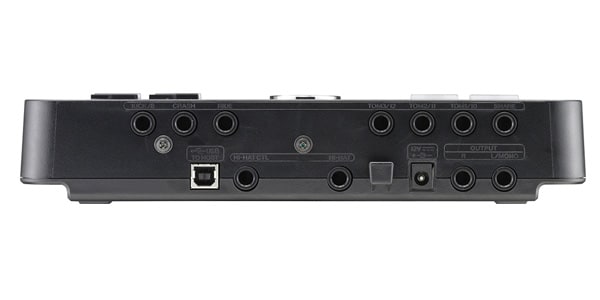

・Connection terminals: Trigger inputs 1, 5, 6, 9 (standard stereo phone jack, L: trigger, R: rim switch), trigger input 2/10, 3/11, 4/12, 7/8 (standard stereo phone jack L: trigger, R: trigger), hi-hat control jack, OUTPUT L/MONO, R (standard phone jack), PHONES (standard stereo phone jack), AUX IN (stereo mini jack), USB (TO HOST), DC IN

- Power consumption: 8 W
- Dimensions, weight: 251 mm (W) x 130 mm (D) x 48 mm (H), 610 g
- Accessories: Power adapter (PA-3C or equivalent Yamaha recommended), warranty card, instruction manual, module holder, 2 module holder fixing screws
