PRESONUS / StudioLive 16R Digital Mixer

The most powerful rack-mount digital mixer in its class. It's also the perfect combination for a simple stage box or monitor mixer for StudioLive Series III consoles.

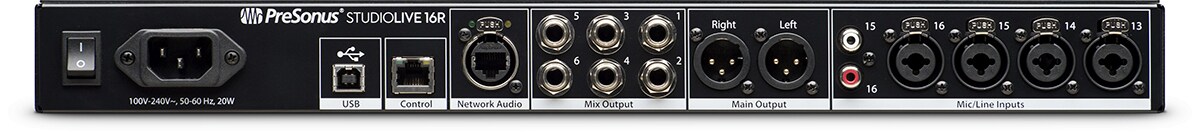

■ Local input / output
18 inputs in total
16 x mic / line input + 2 RCA inputs
6 x? Inch TRS FlexMix output
2 x XLR (L / R) main output
Stereo headphone output

■ Channels and buses
Input channel: 16
Stereo digital return (SD card, AVB, or USB): 1
Bus: 10
FlexMix (designable as Aux, subgroup or matrix mix) x6
・ Internal effect send x2
・ Stereo main bus
Filter DCA, easy and flexible control of channel groups

■ Network connection
Ethernet control network port
Dynamic, self-assigned, manual IP address modes
XLR Ethernet AVB audio network port with locking mechanism

■ Recording
Built-in stereo SD recorder
18x18 USB recording interface
32x32 AVB recording interface

■ Signal processing
Intuitive Fat Channel signal processing on all channels:
31 band graphic EQ x8
Internal effect bus: Reverb and delay combination with modern and vintage options (2 lines)
Built-in real-time analyzer

■ Scenes and presets
Create, save and edit up to 100 scenes
Quick scene x8
Mute group x8

■ Digital
Studio quality converter (dynamic range: 115dB)
24-bit resolution, 48 kHz operation

■ Actively integrated software
UC Surface Touch Control Software for Mac, Windows, iPad, Android
Studio One Artist Digital Audio Workstation Software (for Mac / Windows)
Capture multitrack recording software for Mac and Windows
QMix-UC Aux Control Software for iOS and Android
