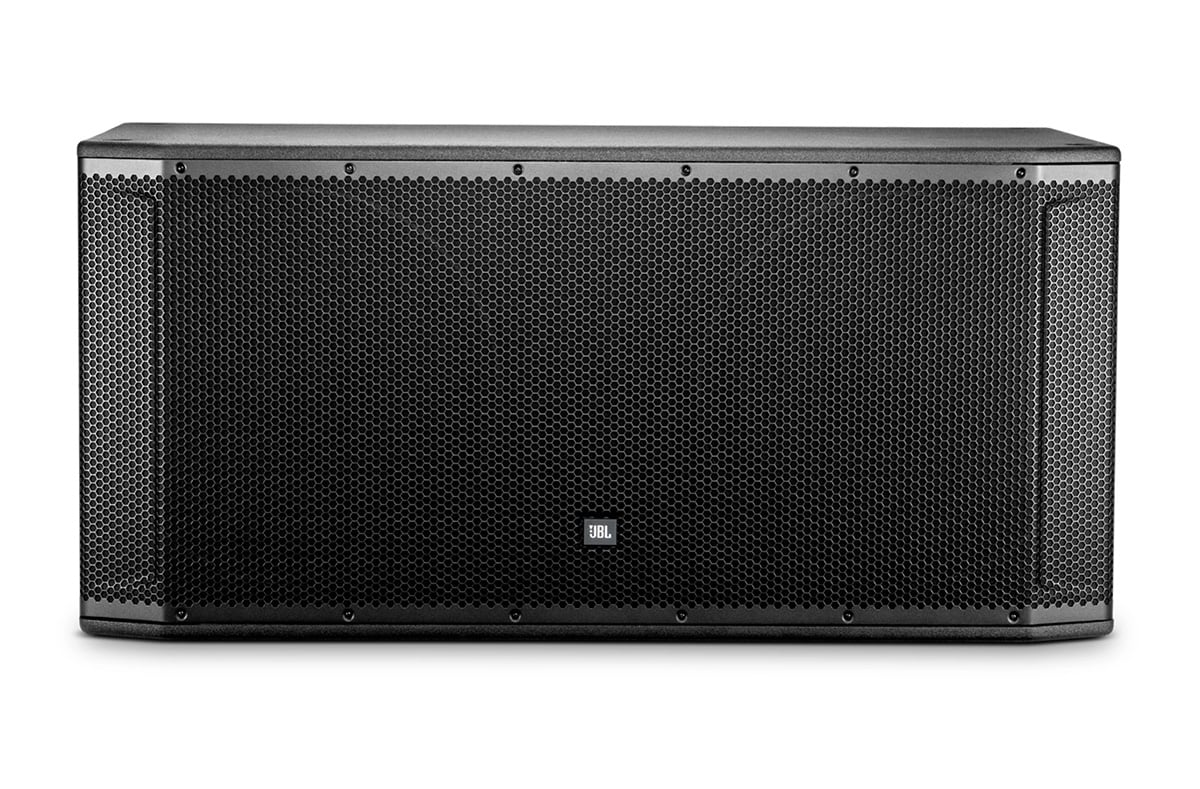

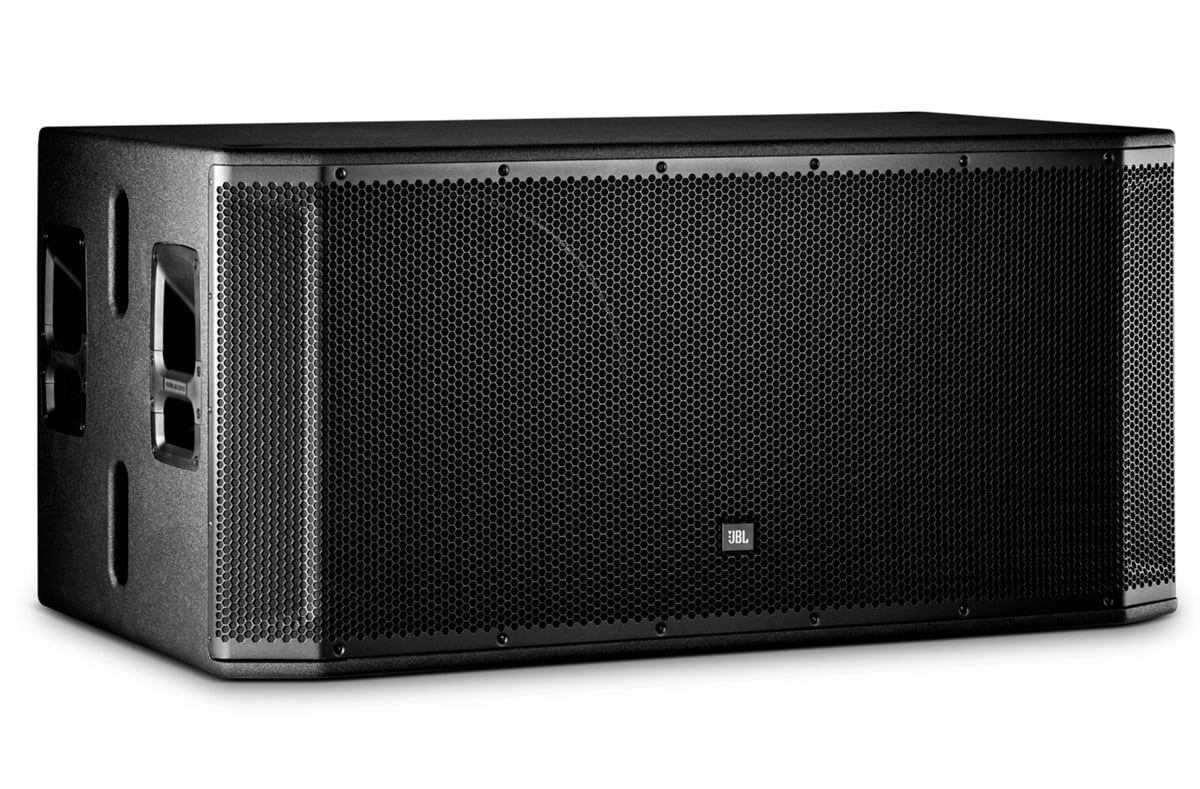

JBL / SRX828SP powered subwoofer
Variations
The peak of portable PA speakers equipped with carefully selected transducers and enclosures, CROWN power amplifier DriveCore technology and a user-configurable state-of-the-art DSP. Compatible with HiQnet network control, achieving the industry's highest level of sound quality, power, control and durability.
recommended item
-
JBL / SRX828SP Powered Subwoofer Outlet Product
B品特価 ¥268,000(incl. tax)
Powered subwoofer, 18"" x 2, 1000W+1000W, 68kg, outlet product
＜Specifications＞
■ Format Powered subwoofer
■ Frequency range (-10dB) 29Hz to 150Hz
■ Maximum sound pressure level 141dB SPL

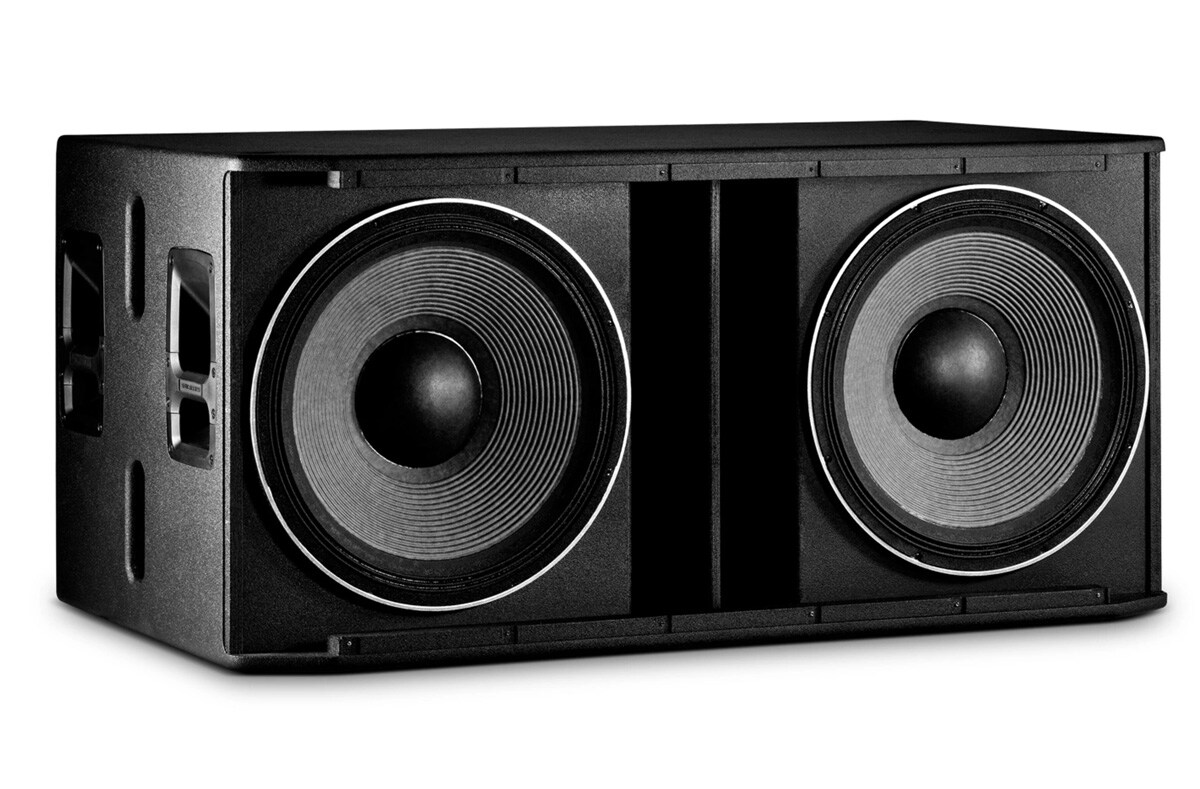

■ Driver configuration 2279F (18 inch (460mm)) x 2
■ Crossover frequency 80Hz
■ Power amplifier 1,000W + 1,000W (peak), Class D

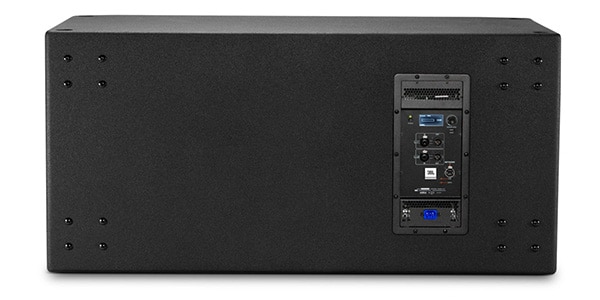

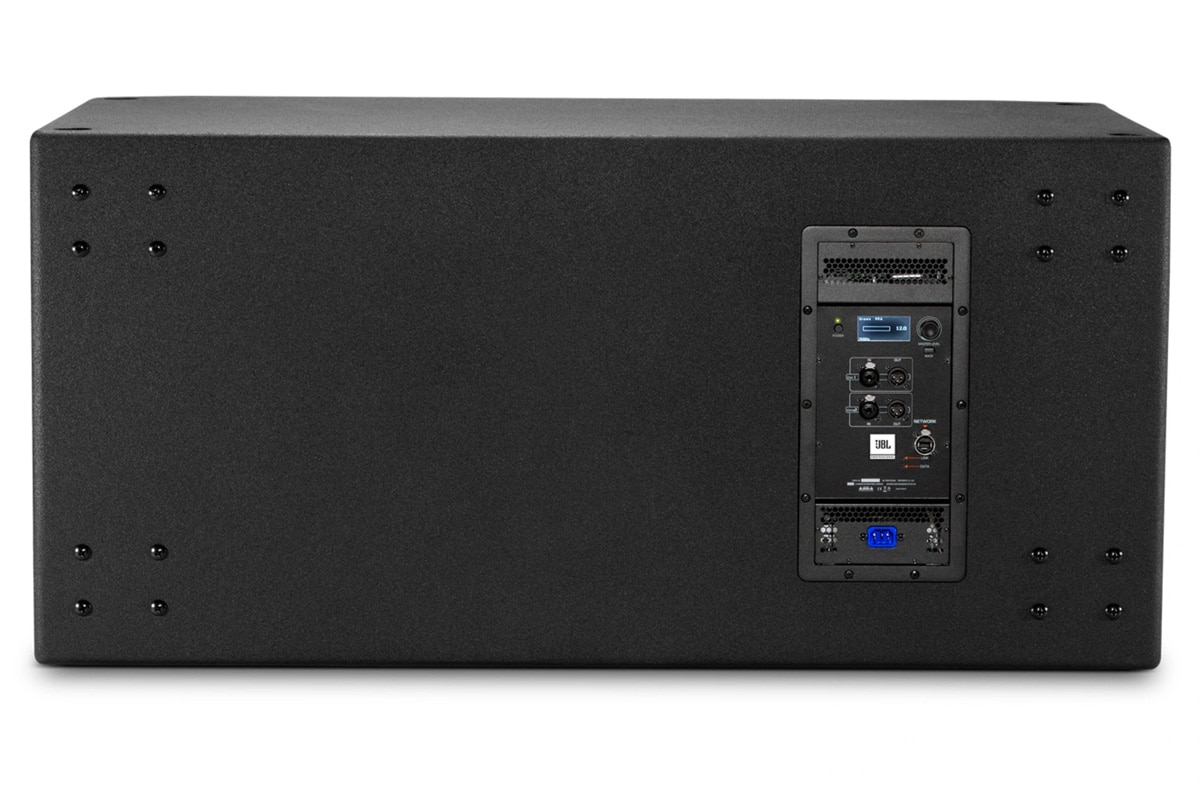

■ Inputs
Number of channels 2
Terminals / Models XLR (3P) and standard phone (3P) compatible composite terminal
Impedance 40kΩ (balance), 20kΩ (unbalanced)
■ Indicators Power, Link, Data
■ Power supply 100V, 50 / 60Hz
■ Power consumption (1/8 output, pink noise) 170W
■ Enclosure 18mm plywood, Duraflex finish
■ Dimensions (W x H x D) 1,202 x 570 x 682 mm (removed protrusion)
■ Weight: 68kg
■ Accessories: Power cord
■ Format Powered subwoofer
■ Frequency range (-10dB) 29Hz to 150Hz
■ Maximum sound pressure level 141dB SPL
■ Driver configuration 2279F (18 inch (460mm)) x 2
■ Crossover frequency 80Hz
■ Power amplifier 1,000W + 1,000W (peak), Class D
■ Inputs
Number of channels 2
Terminals / Models XLR (3P) and standard phone (3P) compatible composite terminal
Impedance 40kΩ (balance), 20kΩ (unbalanced)
■ Indicators Power, Link, Data
■ Power supply 100V, 50 / 60Hz
■ Power consumption (1/8 output, pink noise) 170W
■ Enclosure 18mm plywood, Duraflex finish
■ Dimensions (W x H x D) 1,202 x 570 x 682 mm (removed protrusion)
■ Weight: 68kg
■ Accessories: Power cord
スペック比較表 ～パワード～
| ウーハー | ドライバー | アンプ出力 | 周波数レンジ (-10dB) |
最大音圧 レベル |
入力端子 | 出力端子 | 消費電力 （1/8出力) |
質量 | 寸法（WxHxD） | |
|---|---|---|---|---|---|---|---|---|---|---|
| PRX812W | 12" | 1.5" | 1500W （750Wx2） |
45Hz - 20kHz | 135dB | ch1：コンボジャック ch2：コンボジャック RCA |
XLR×2 | 60W | 18kg | 383×595×342mm |
| PRX815W | 15" | 1.5" | 1500W （750Wx2） |
43Hz - 20kHz | 137dB | ch1：コンボジャック ch2：コンボジャック RCA |
XLR×2 | 90W | 21kg | 445×697×360mm |
| PRX815XLFW | 15" | - | 1500W | 36Hz - 113Hz | 131dB | ch1：コンボジャック ch2：コンボジャック |
XLR×2 | 120W | 27kg | 445×548×572mm |
| PRX818XLFW | 18" | - | 1500W | 30Hz - 103Hz | 134dB | ch1：コンボジャック ch2：コンボジャック |
XLR×2 | 120W | 37kg | 523×687×724mm |
| PRX825W | 15"×2 | 1.5" | 1500W （750Wx2） |
42Hz - 19kHz | 138dB | ch1：コンボジャック ch2：コンボジャック |
XLR×2 | 90W | 38kg | 446×1057×538mm |
| PRX835W | 15"×1 6.5"×1 |
1.5" | 1500W （750Wx2） |
35Hz - 20kHz | 138dB | ch1：コンボジャック ch2：コンボジャック |
XLR×2 | 70W | 32kg | 446×934×538mm |
| SRX812P | 12" | 3" | 2000W | 45Hz - 20kHz | 135dB | ch1：コンボジャック ch2：コンボジャック |
XLR×3 （1つはMIX OUT） |
85W | 26kg | 414×631×428mm |
| SRX815P | 15" | 3" | 2000W | 38Hz - 21kHz | 137dB | ch1：コンボジャック ch2：コンボジャック |
XLR×3 （1つはMIX OUT） |
85W | 30kg | 459×692×480mm |
| SRX818SP | 18" | - | 1000W | 29Hz - 150Hz | 135dB | ch1：コンボジャック ch2：コンボジャック |
XLRｘ2 | 85W | 40kg | 684×569×684mm |
| SRX828SP | 18"×2 | - | 1000W+1000W | 29Hz - 150Hz | 141dB | ch1：コンボジャック ch2：コンボジャック |
XLRｘ2 | 170W | 68kg | 1202×570×682mm |
| SRX835P | 15"×1 6.5"×1 |
3" | 2000W | 33Hz - 21kHz | 137dB | ch1：コンボジャック ch2：コンボジャック |
XLR×3 （1つはMIX OUT） |
85W | 39kg | 542×977×477mm |
| EON610 | 10" | 1" | LF700W+HF300W | 52Hz - 20kHz | 124dB | ch1：コンボジャック ch2：コンボジャック |
XLR×1 | 55W | 11kg | 322×577×295mm |
| EON612 | 12" | 1" | LF700W+HF300W | 48Hz - 20kHz | 126dB | ch1：コンボジャック ch2：コンボジャック |
XLR×1 | 55W | 14kg | 378×660×320mm |
| EON615 | 15" | 1" | LF700W+HF300W | 39Hz - 20kHz | 127dB | ch1：コンボジャック ch2：コンボジャック |
XLR×1 | 55W | 18kg | 439×708×365mm |
| EON618S | 18" | - | 1000W | 31Hz - 150Hz | 134dB | ch1：コンボジャック ch2：コンボジャック |
XLRｘ2 | 30W | 36kg | 666×573×645mm |
