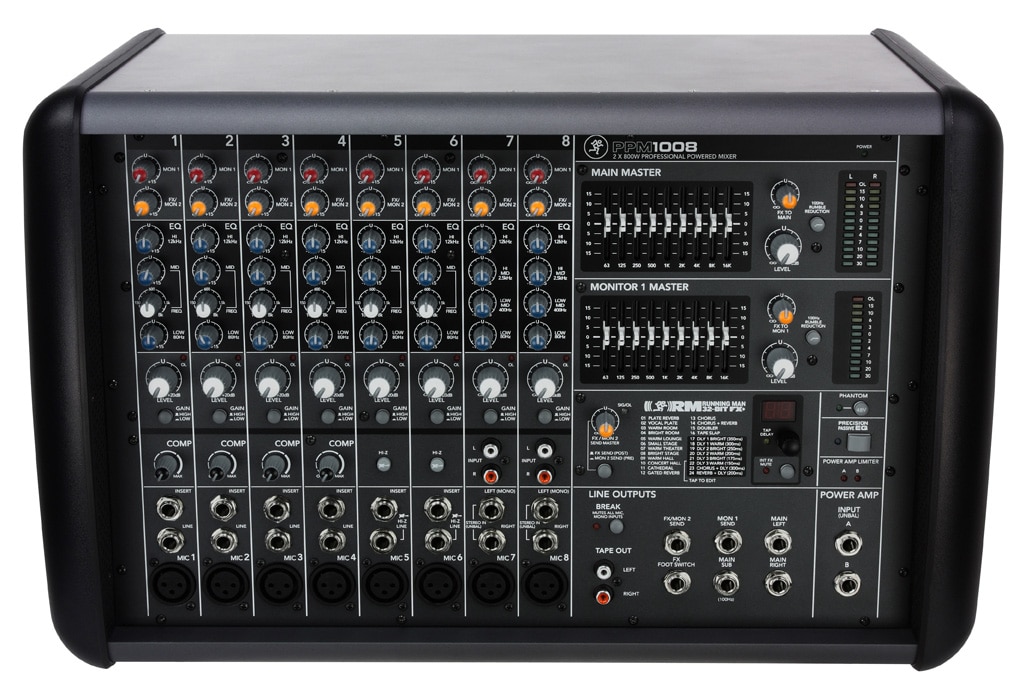

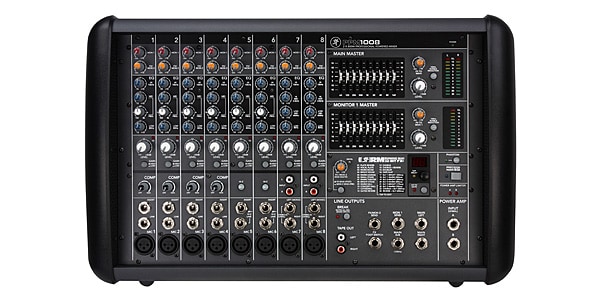

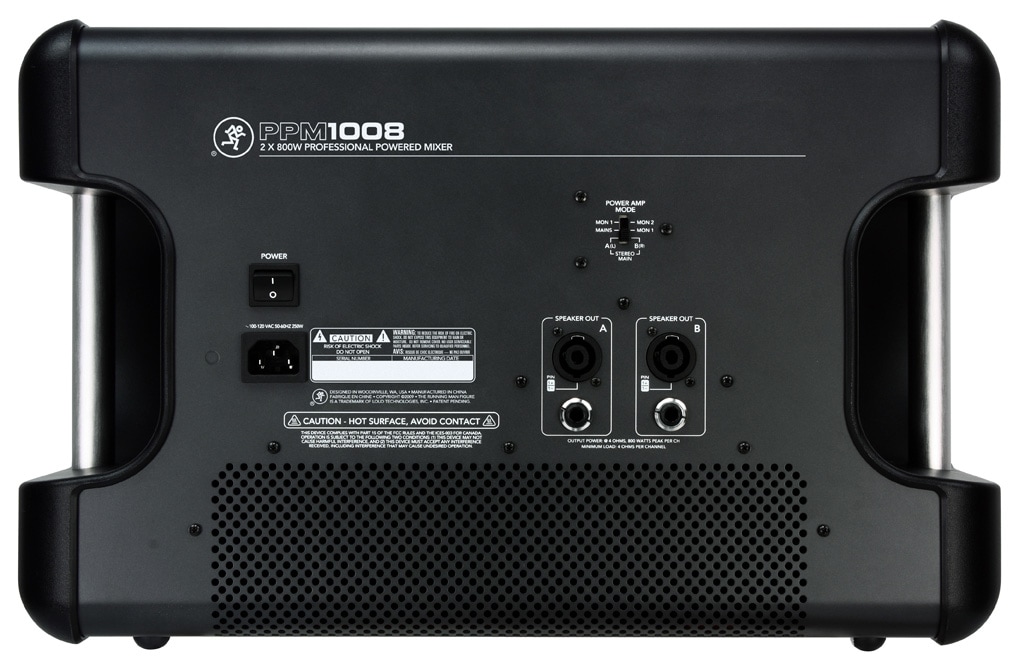

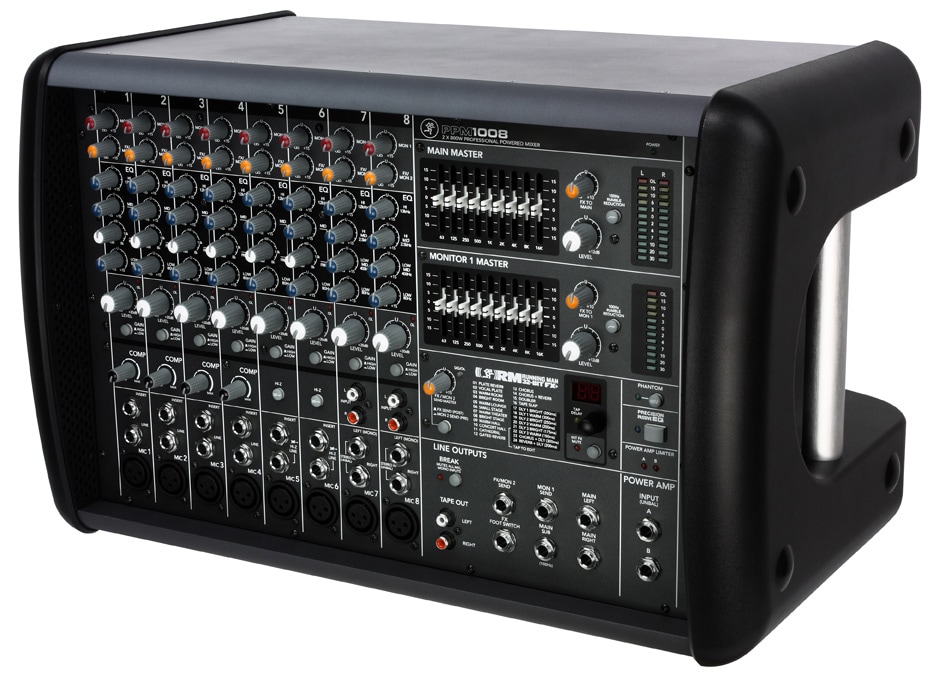

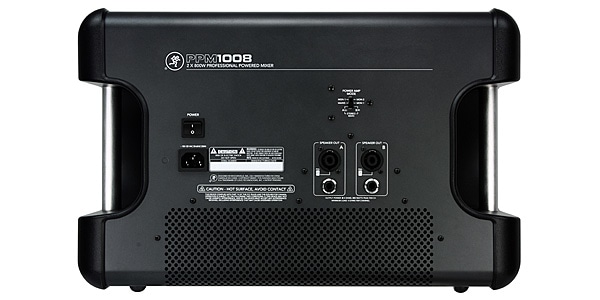

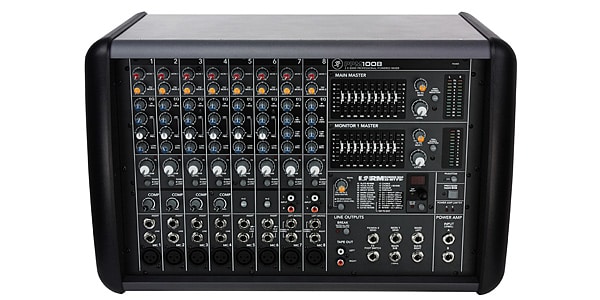

MACKIE / PPM1008

Despite its compact size and light weight, it delivers an extremely high output of 800 x 2 (4 Ω). It produces a clean sound with little distortion, making it ideal for small-scale live performances and events.

■Type: Powered Mixer
- Boasting 800W + 800W of power into 4Ω, it can drive fairly large passive speakers. The Class-D amplifier, designed specifically for the PPM1008, delivers sustained sound pressure levels that will overwhelm your audience.
- The Fast Recovery circuit prevents sound distortion and peak latching, delivering a distortion-free mix even at near-peak levels.
- A built-in limiter protects your speakers. Attack and release times are adjusted to accommodate full-bandwidth music sources, so you won't have to worry about unpleasant volume fluctuations ruining your music.
- Incredibly lightweight and incredibly powerful. Even when used at maximum output, there's no distortion.

■Features
- Equipped with 48V phantom power.
- Two built-in DI box functions allow direct instrument connection (channels 5-6)
- Insert terminals for connecting external effects (channels 1-6)
- Newly developed inline compressors add presence and impact to vocals and instruments (channels 1-4)
- Mackie 3-band active channel EQ (swept MID)
- Dual 7-band graphic EQs on the Mains and Monitor outputs for adjusting the main sound and monitor mix.
- PASSIVE EQ for matching with Mackie passive speakers.
Built-in 32-bit digital RMFX+ processor

Specifications
Output Connectors: Speakon, Phones
Mono Channels: 8 (XLR, TRS Phones)
Speaker Output: 800W x 2 (4Ω)
EQ: 3-band
AUX: 2 (Mon + FX)
Digital Effects: 32-bit digital RMFX
Power Consumption: 680W
Dimensions: 314 x 490 x 290mm
Weight: 11kg
