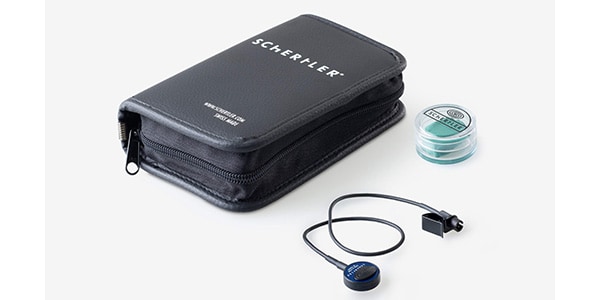

SCHERTLER ( シャートラー ) / Dyn-V-P48 Violin Microphone

SCHERTLERのバイオリン用コンタクトマイク。

■バイオリン用コンタクトマイク

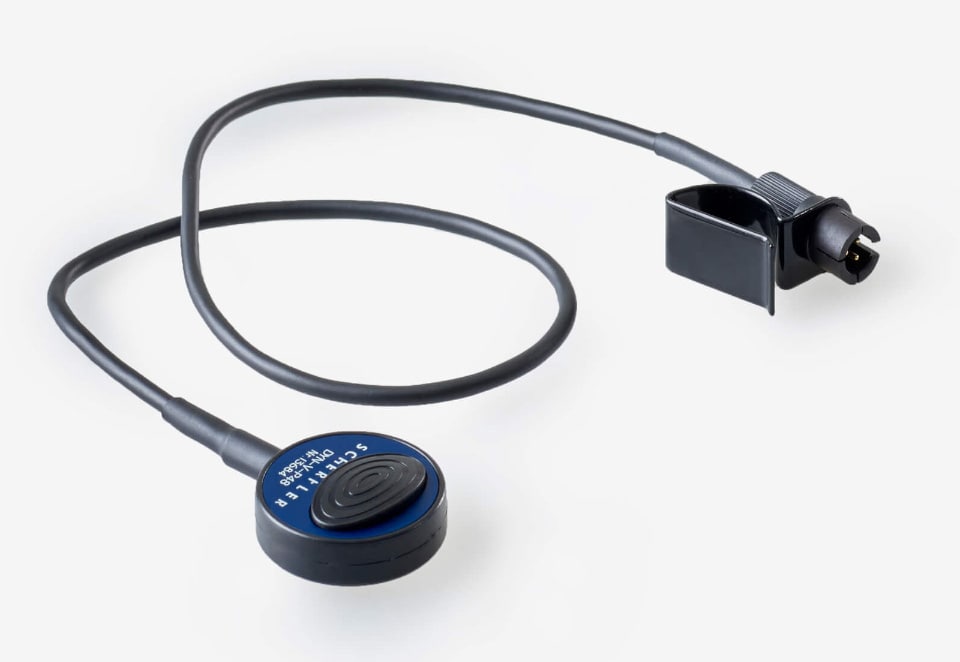

■Active dynamic contact microphone for violins

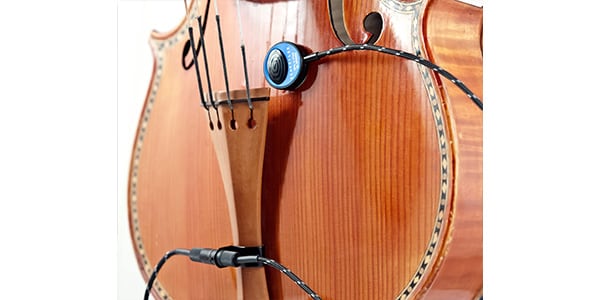

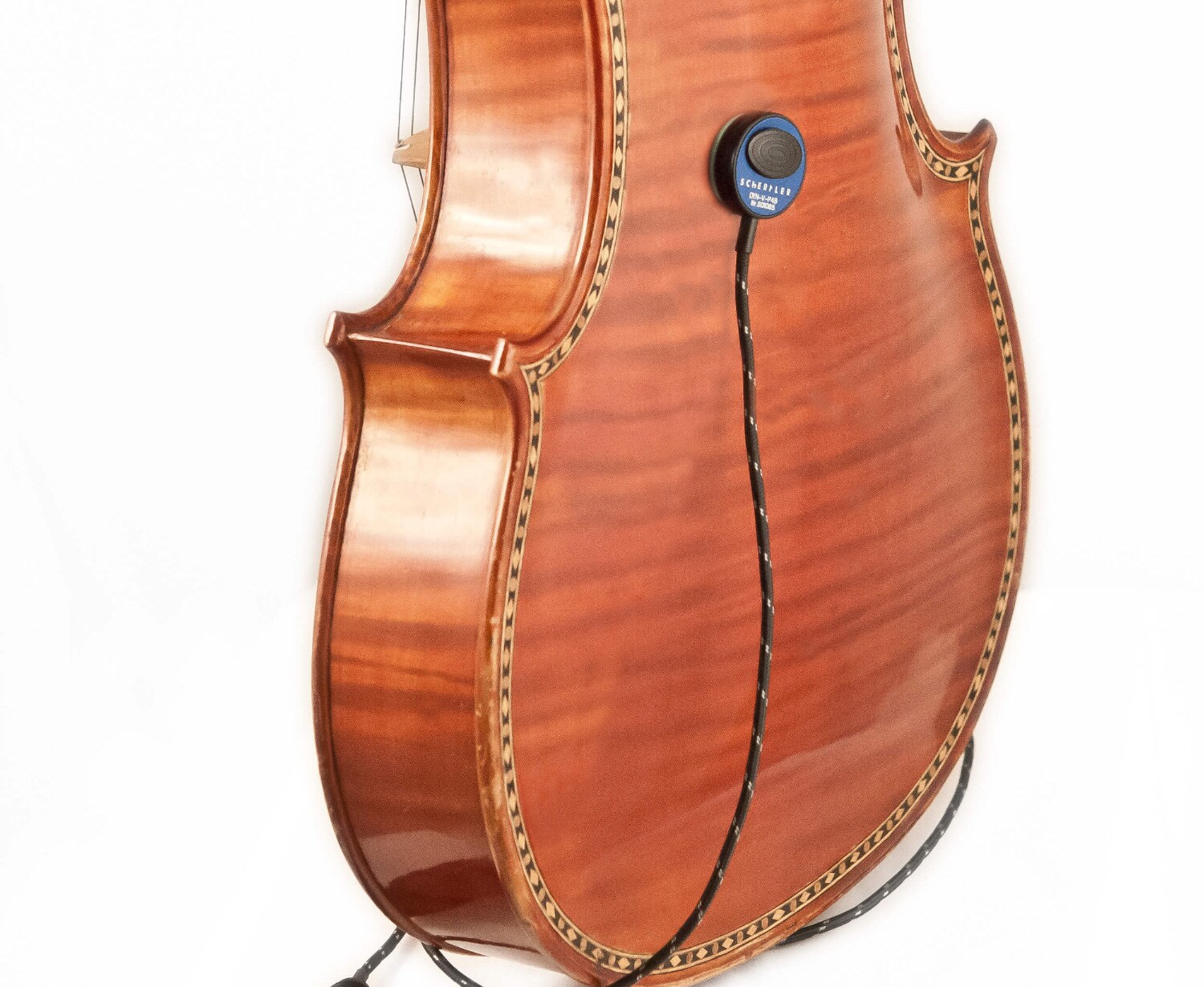

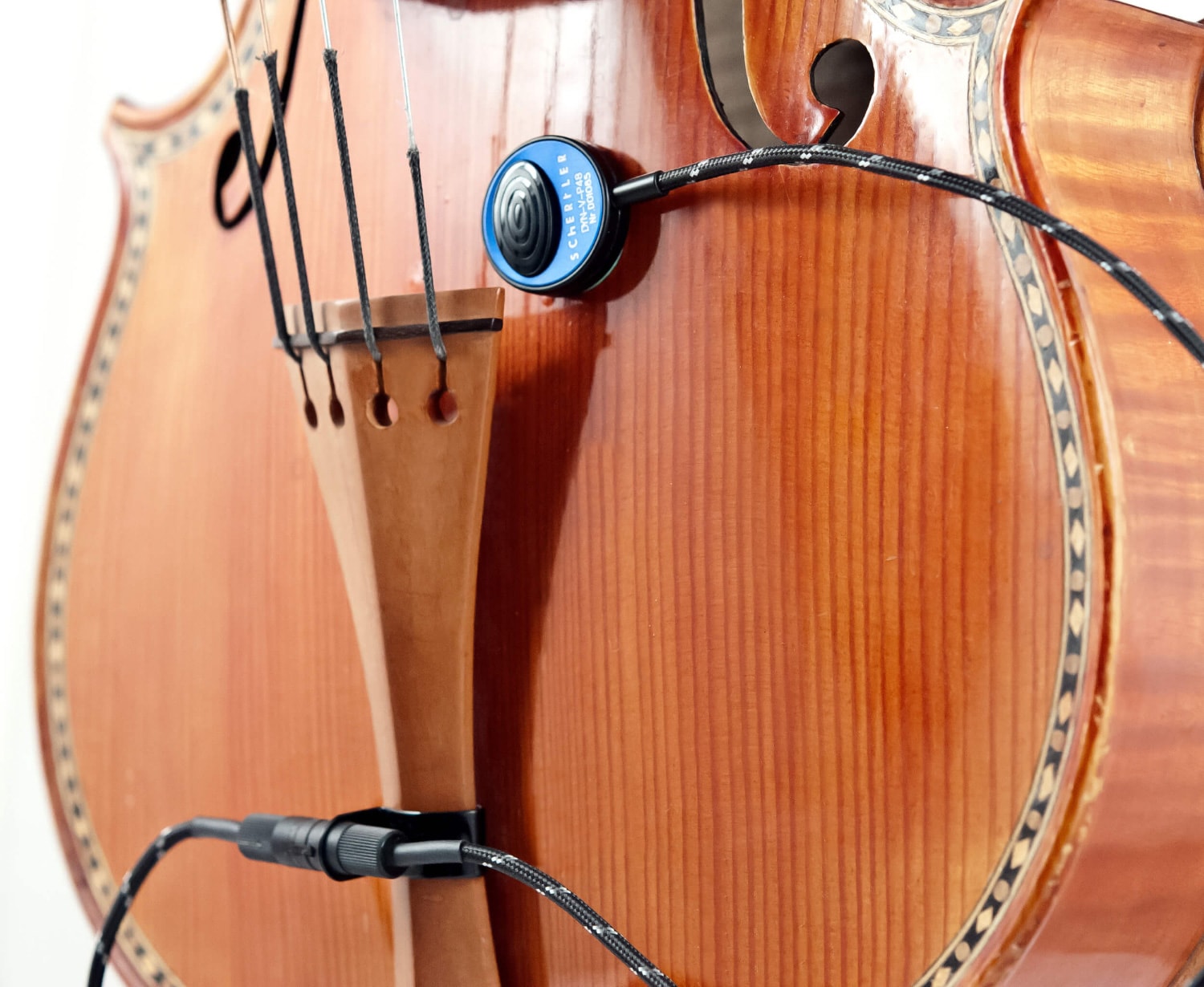

■Is mounted with adhesive paste onto the instrument
■Requires phantom power (min. 22 V DC)
■Output impedance: 4.7 kOhm @ 1 KHz
■Frequency range: 20 - 20,000 Hz
■Dynamic range: 139 dB (typically 145 dB)
■Sensitivity on the instrument: Approx. -30 dB
■Theoretical sensitivity: -62 dB / @ 1um ampl.
■Mechanical decoupling: Butterworth 2nd order, Q=6
■Temperature range: -20° C up to +70° C
■Made in Switzerland
