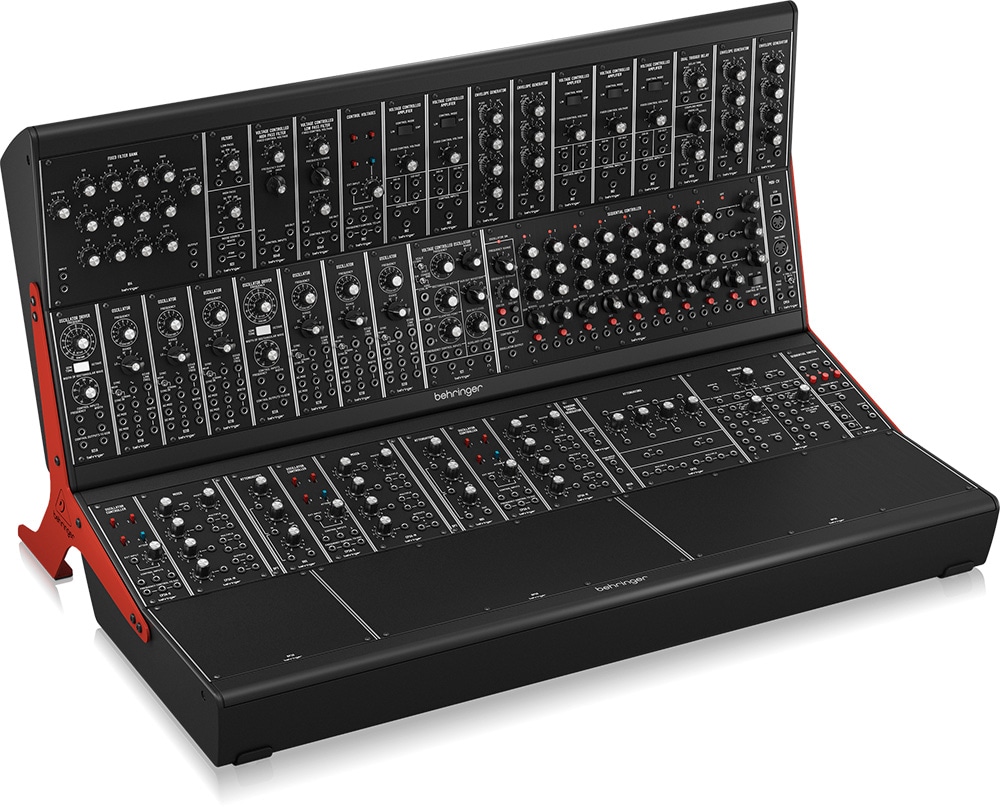

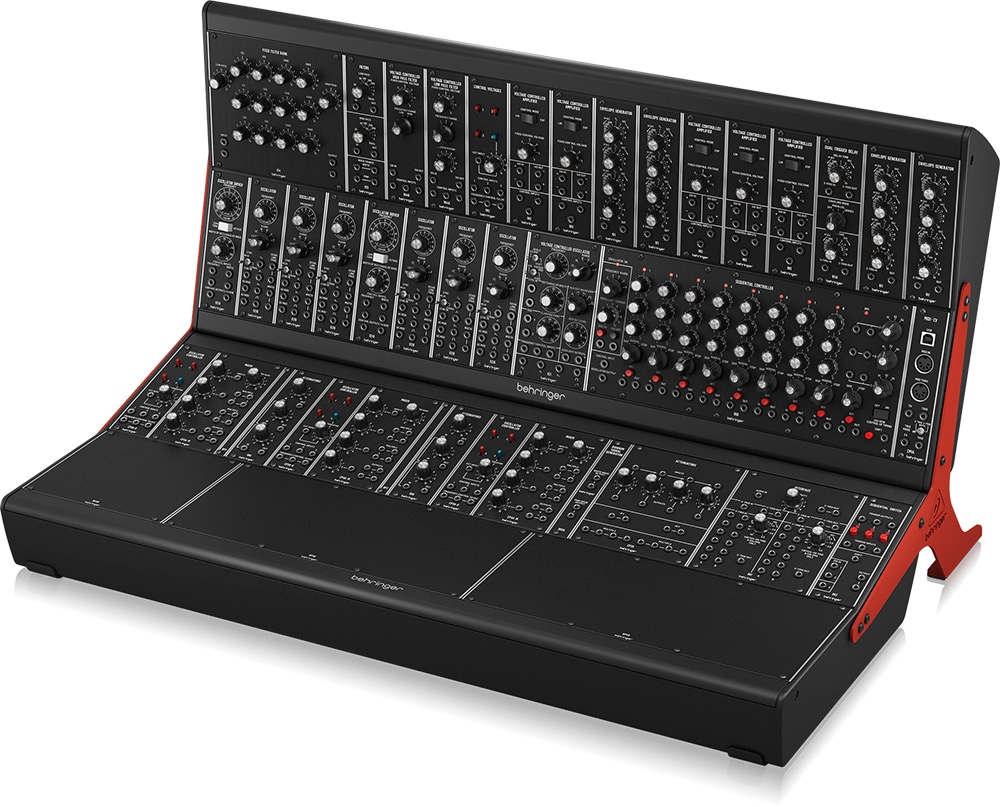

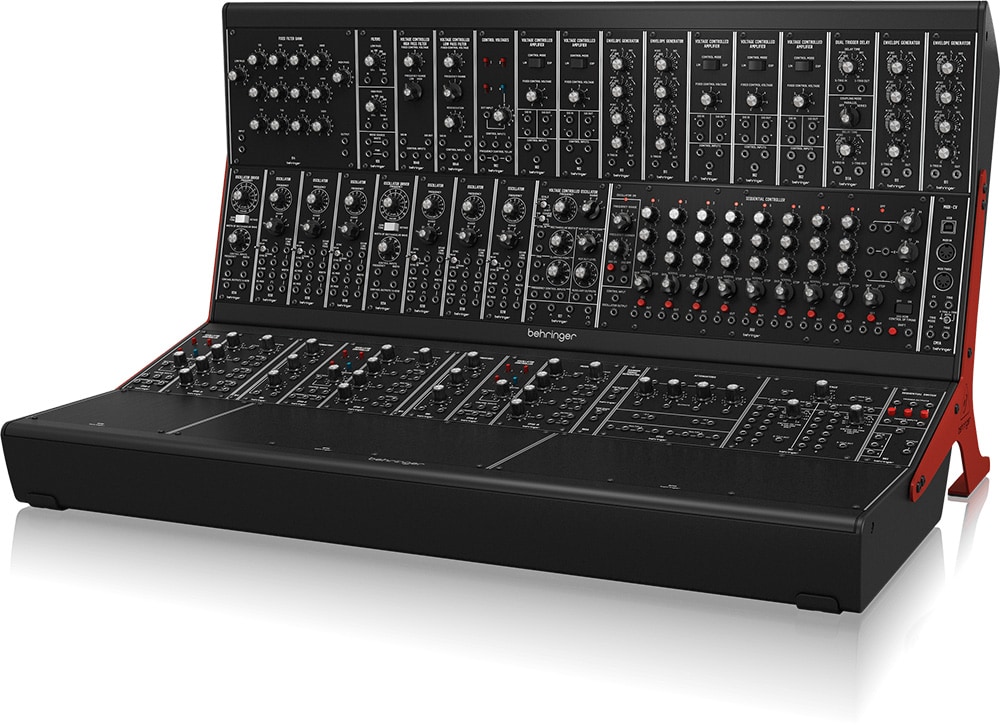

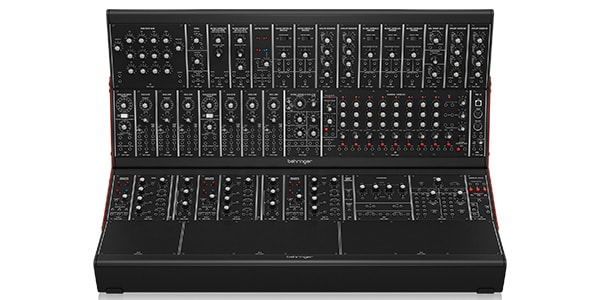

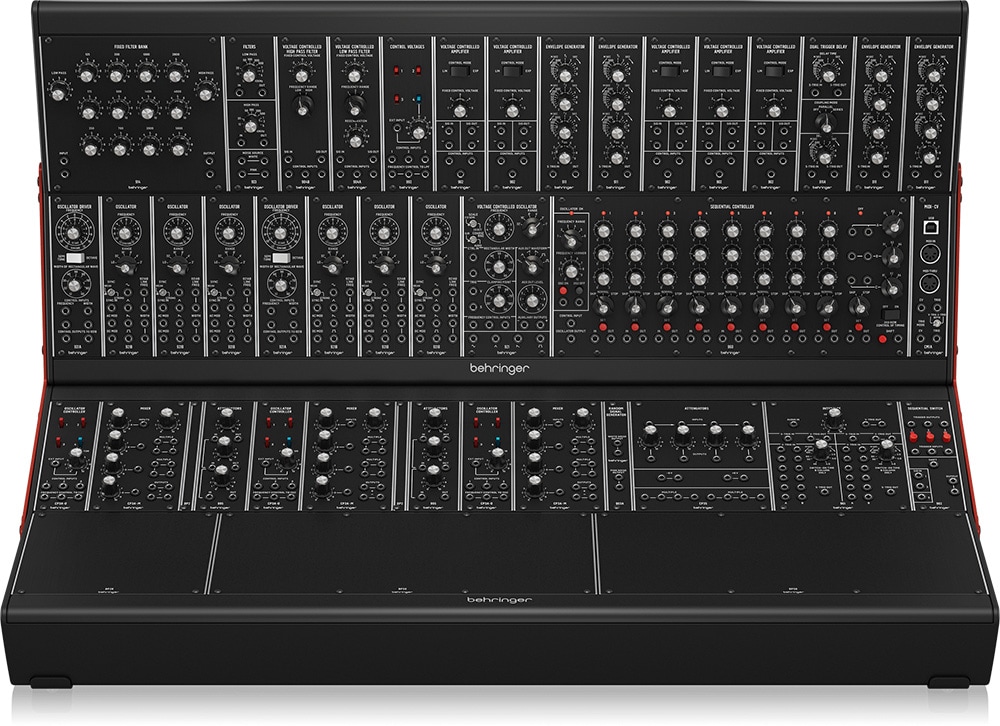

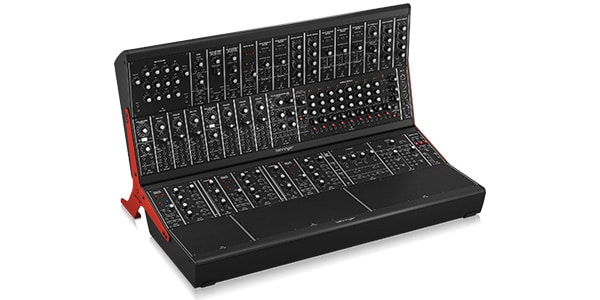

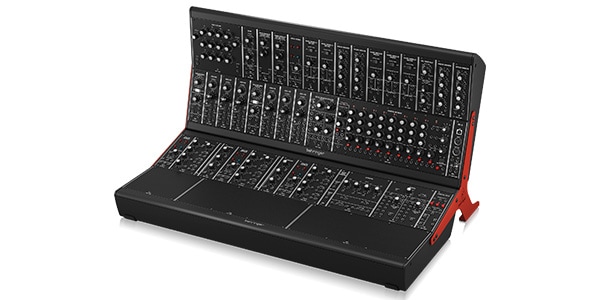

BEHRINGER / SYSTEM 55

Eurorack set of 55, 35, and 15 synth module series.

■Features
1x 914 FIXED FILTER BANK (12 active bandpass filters and LP/HP filters from 125 Hz - 5.6 kHz)
923 FILTERS module x 1 (6dB low-pass/high-pass filter with white/pink noise source)
904B Voltage Controlled High Pass Filter x 1, 904A Voltage Controlled Low Pass Filter x 1
1x 992 CONTROL VOLTAGES module enables CV mixing and switching with 1 inverting attenuator
5x 902 VOLTAGE CONTROLLED AMPLIFIER (3 summing CV inputs and dual audio input/output)
4x 911 ENVELOPE GENERATORS (with S-trig input and CV output)
1x 911A DUAL TRIGGER DELAY module with S-trig input and output
2x 921A OSCILLATOR DRIVER is equipped with 6x 921B VCO and 1x 921 VCO, providing 7 tones.
1x 960 SEQUENTIAL CONTROLLER module provides up to 24 step sequences in 3 rows of 8 steps
1x CM1A MIDI-CV converter allows control via MIDI keyboard, DAW, V-trig or S-trig output
3x CP3A-O modules allow CV mixing and switching of VCOs (with 1 attenuator)
3x CP3A-M 4-input mixer with master level, 4 outputs, and 2 sets of 4 multiples
2x 995 ATTENUATORS modules with 3-link passive attenuators
1x 903A RANDOM SIGNAL GENERATOR module provides dual white noise and pink noise sources.
1x CP35 ATTENUATORS module (4-link attenuator, 2 sets of 4 multiples, with reference voltage)
1x 961 INTERFACE module converts multiple V-trigs to S-trigs for compatibility with other Eurorack modules.
1x 962 SEQUENTIAL SWITCH module expands the 960 module into a 24-step sequencer.
1 x BP28, 2 x BP56, 2 x BP2 blank panels (144HP total expansion space)
1x CM1A MIDI-to-CV converter allows control from MIDI keyboard or DAW, V-trig or S-trig output
2x EURORACK GO BRACKETS: Easily connect two EURORACK GO cases together

■Specifications
sauce
Destination

External MIDI Keyboard - MIDI Out
CM1A MIDI Interface MIDI In

CM1A CV output
921A frequency input

21A frequency output
921B Frequency Link (Series)

audio
921B waveform output (3 out of 4)
CP3A-M input

CP3A-M output
904A signal input

904A signal output
902 signal input

902 signal output
Your mixer/amplifier/DAW

Voltage control (amplitude)
CM1A s trigger output
multiple

Multi output (of 3)
2 x 911 s trigger input & 911A s trigger input

911A output
3rd 911

1st 911 Output
1st 902 Control Input

Voltage control (modulation)
2nd 911 output
904A control input

921 auxiliary sign output
2nd 902 signal input

2nd 902 VCA signal output
CP3A-O input 4

CP3A-O output
921B DC Mod input (3 systems)

3rd 911 output
2nd 902 control input
