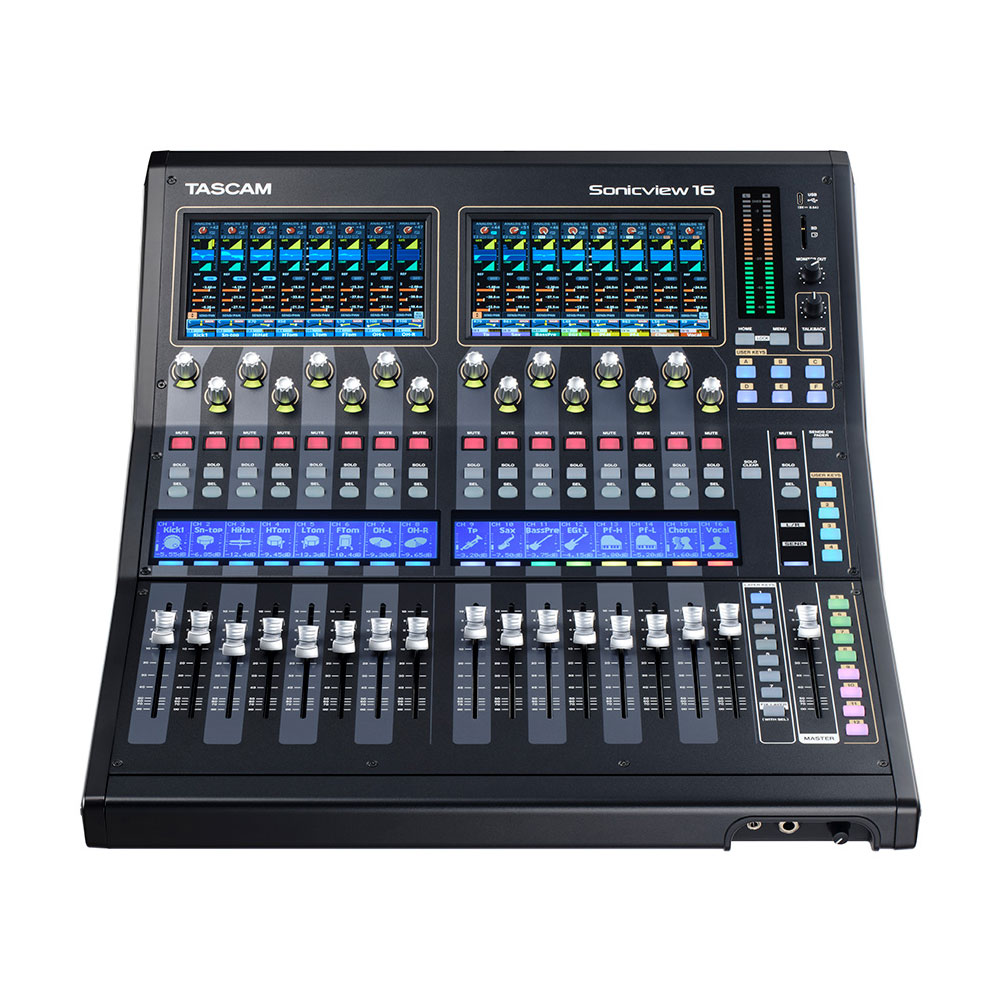

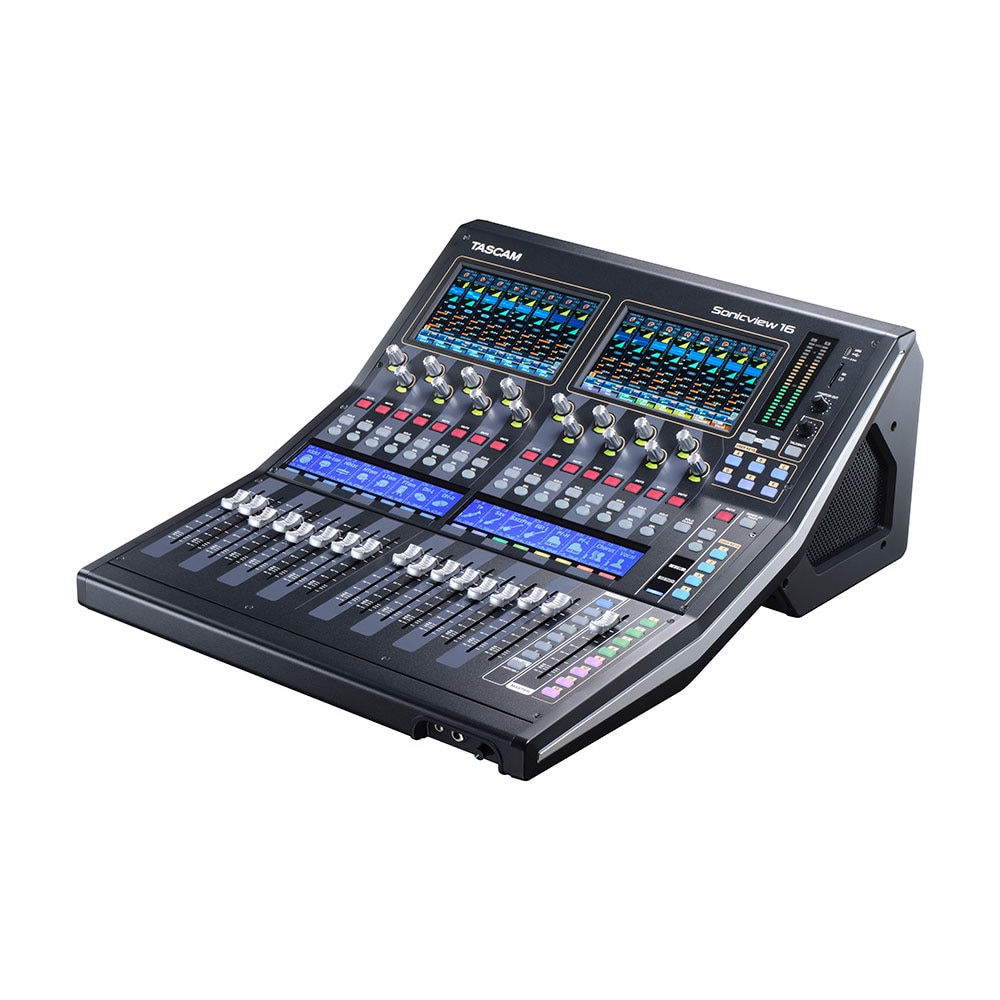

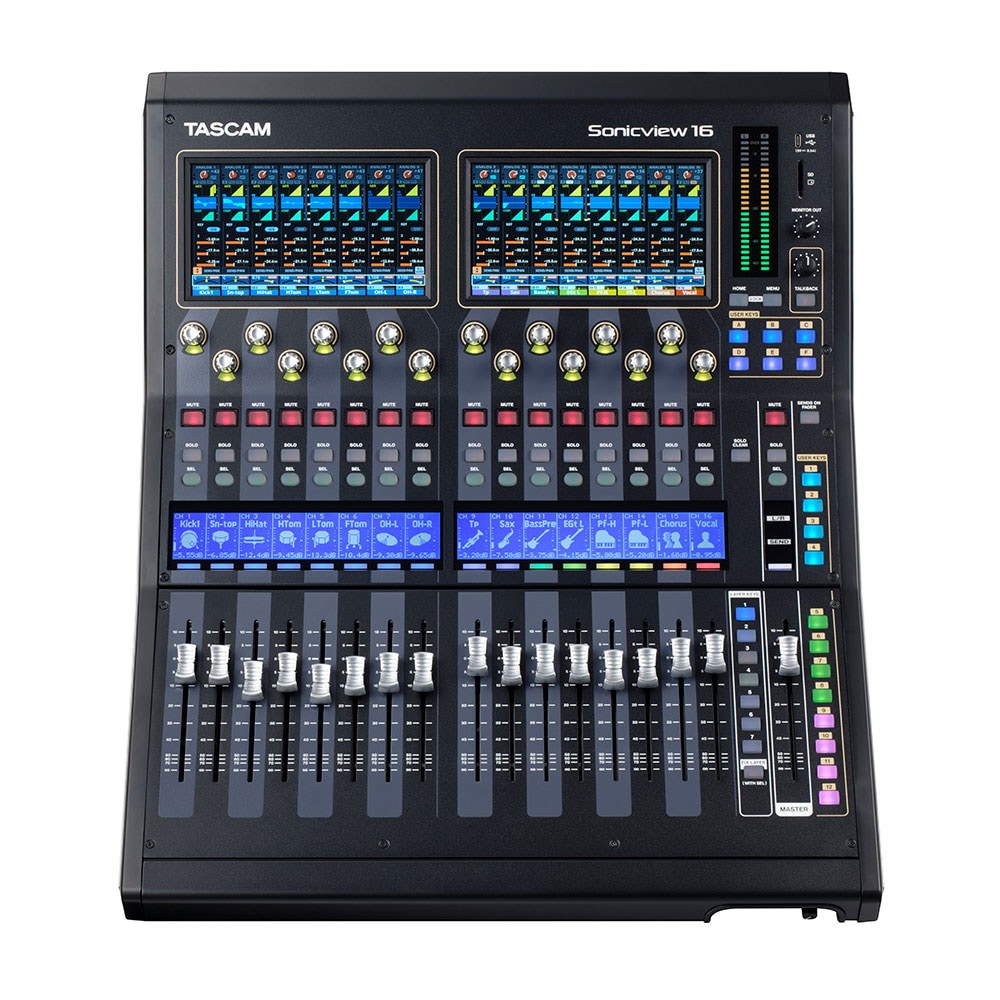

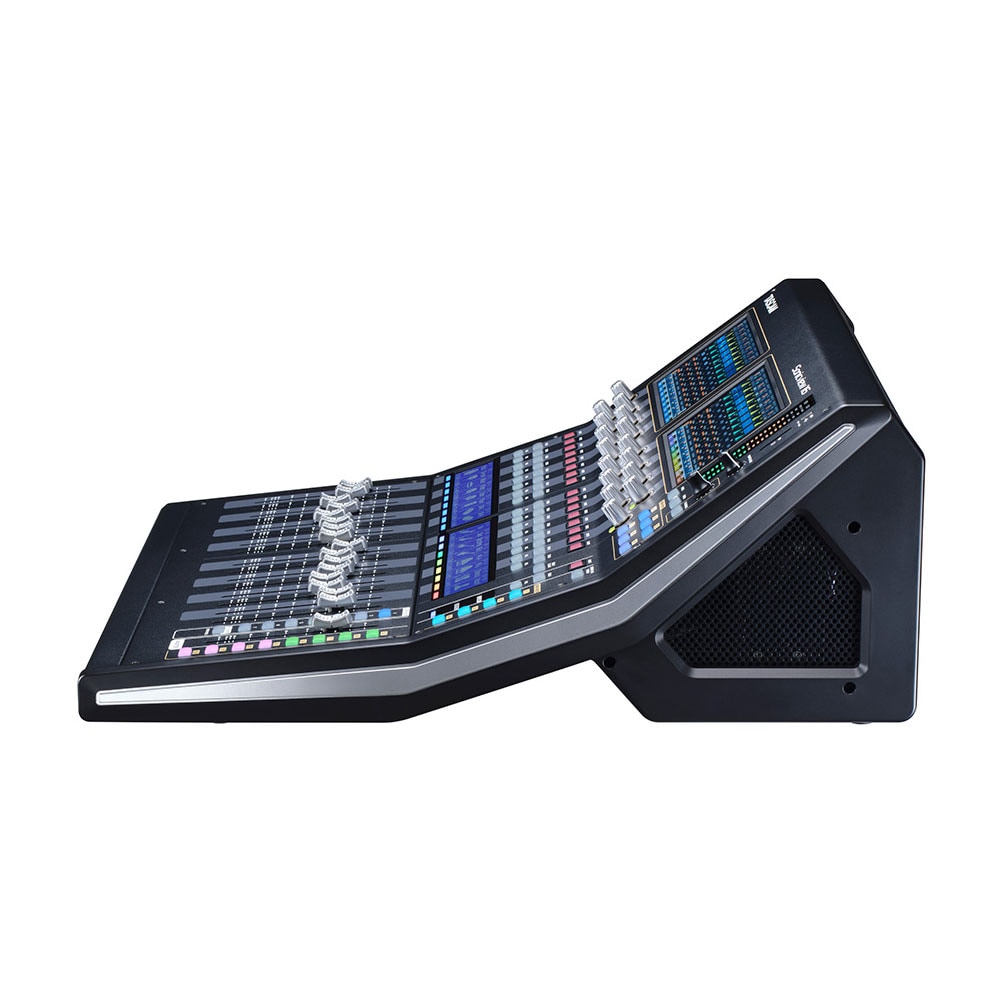

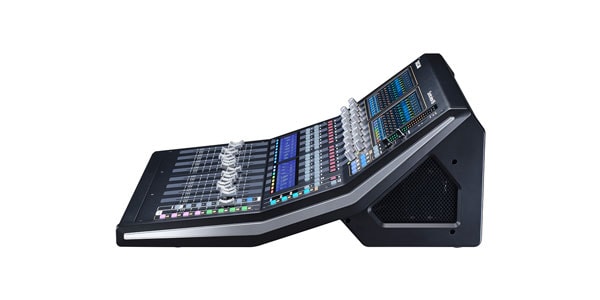

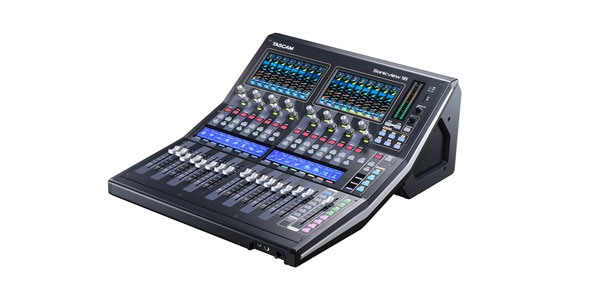

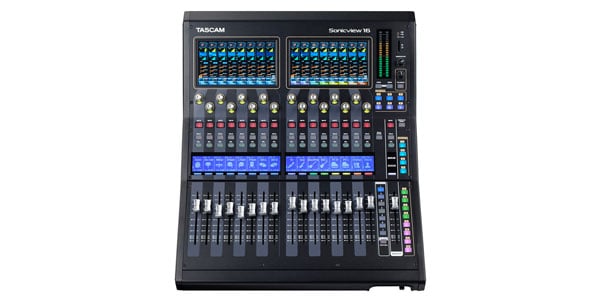

TASCAM / Sonicview 16

Next-generation digital mixer with 96kHz operation and multi-color touch screen.

■ Digital mixer

【Major features】
-Supports intuitive operation with the VIEW interface
・ Multi-display with 2x7 inch touch panel
・ 44 input channels (40-channel monaural input, 2-channel stereo input)
・ 22 MIX bus with 31-band graphic EQ + MAIN L / R bus
・ 96kHz, 54bit float FPGA mixing engine
-Achieves a 2x sample (20.8 μS) delay in the mixing engine. Ultra-low latency of 0.51ms even for analog to analog
・ Equipped with 32bit / 96kHz AD converter
・ Class 1 HDIA mic preamp
-Redundant compatible 64in / 64out Dante interface. Also supports AES67 mode, DDM, SMPTE2110 mode
・ 32in / 32out, 32bit / 96kHz audio interface function
16 mics / line input (up to + 32dBu), 16XLR line output (flexible routing possible)
・ 4 multi-effects processor
・ TASCAM Sonicview Control is compatible with Windows / MacOS / iPadOS and realizes remote control and offline editing.
・ TASCAM expansion slot x 2
・ MADI, Dante, AES / EBU, and analog I / O cards can be used as options in the 2 slots.

【specification】
■ Simultaneous processing capacity
Input: 52 [Monaural: 40, Stereo: 2 (Stereo), Fx Return: 4 (Stereo)]
Bus: 32 [AUX / GROUP switchable MIX bus: 22, MAIN L / R bus: 1 (stereo), Fx send bus: 4 (stereo)]
Built-in Fx: 4

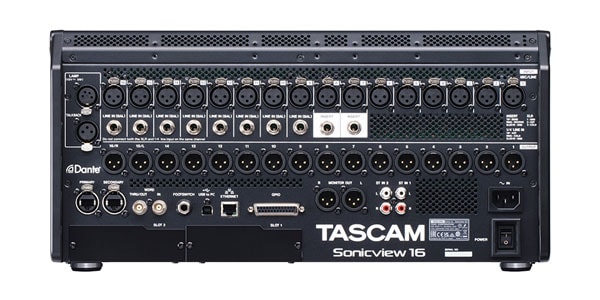

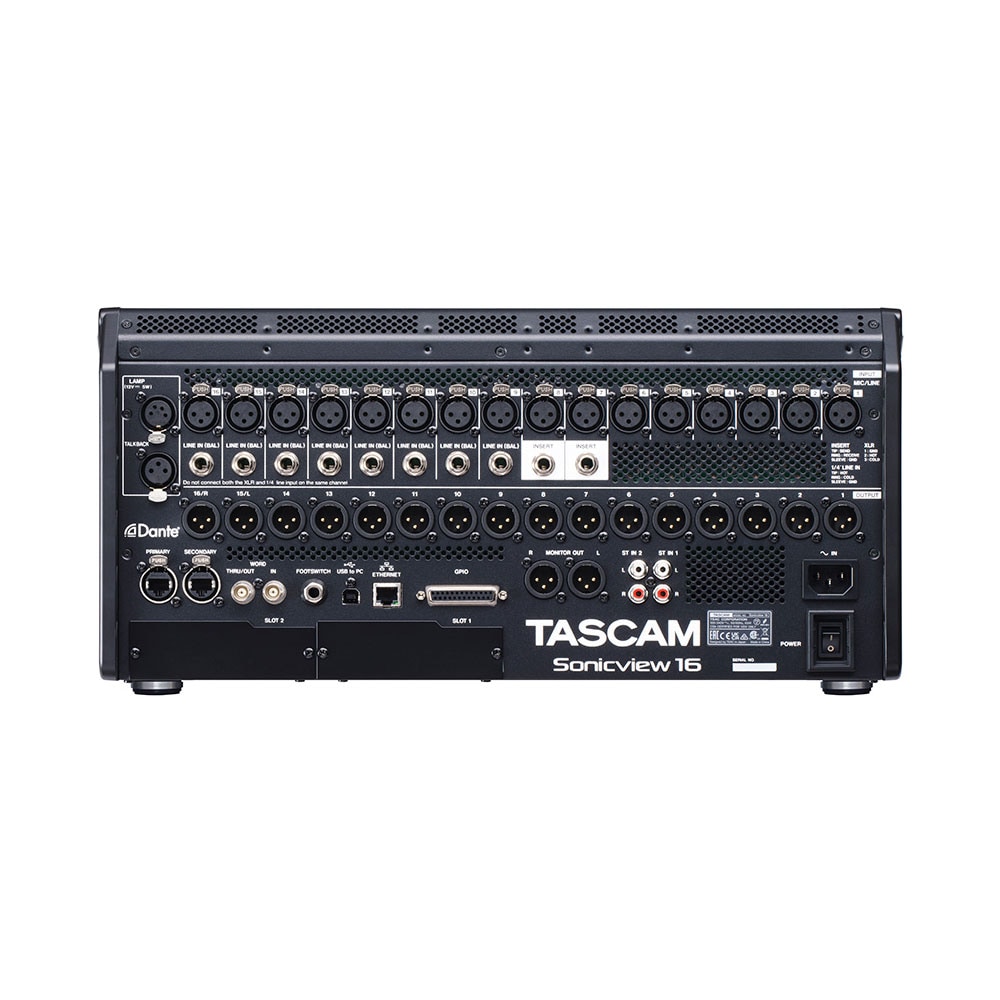

■ Input port
96kHz: Maximum 152 ports
48kHz: Maximum 248 ports
MIC / LINE: 16
Stereo (RCA): 4 (2 stereo)
Dante: 32 (96kHz), 64 (48kHz)
SLOT: 32x2 (96kHz), 64x2 (48kHz)
USB Audio: 32
MONITOR OUT (analog): 2 (1 stereo)
Built-in recorder: 1
TALKBACK: 2 (1 stereo)
■ Output port
96kHz: Maximum 148 ports
48kHz: Maximum 244 ports
LINE: 16
Dante: 32 (96kHz), 64 (48kHz)
SLOT: 32x2 (96kHz), 64 (48kHz)
USB Audio: 32
MONITOR OUT (analog): 2 (1 stereo)
Built-in recorder: 2 (1 stereo)
■ I / O port
2 I / O (MIC / LINE input 7/8)
■ Signal processing
Mixer engine: 96kHz / 54-bit floating point arithmetic
ADC: 96kHz, 32bit
DAC: 96kHz, 24bit
Digital I / O sampling frequency: 96kHz, 48kHz
Analog audio input / output
■ MIC / LINE input: 1-16 channels
Equivalent to connector XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Maximum input level + 12dBu (PAD = off, TRIM minimum), + 32dBu (PAD = on, TRIM minimum)
Minimum input level -62dBu (PAD = off, TRIM maximum), -42dBu (PAD = on, TRIM maximum)
Input impedance 5.0 kΩ or more
Phantom power + 48V can be supplied
■ LINE input: 9-16 channels
Connector 6.3mm (1/4 ") TRS standard jack, balance (Tip: HOT, Ring: COLD, Sleeve: GND)
Maximum input level + 12dBu (PAD = off, TRIM minimum), + 32dBu (PAD = on, TRIM minimum)
Minimum input level -62dBu (PAD = off, TRIM maximum), -42dBu (PAD = on, TRIM maximum)
Input impedance 5.0 kΩ or more
■ Insert input / output: 7-8 channels
Connector 6.3mm (1/4 ") TRS standard jack (Tip: SEND, Ring: RETURN, Sleeve: GND)
RETURN (Ring)
Maximum input level + 18dBu
Standard input level -2dBu
Input impedance 5.0 kΩ or more
SEND (Tip)
Maximum input level + 18dBu
Standard input level -2dBu
Output impedance 100Ω
■ Talkback input
Equivalent to connector XLR-3-31 (1: GND, 2: HOT, 3: COLD)
Maximum input level + 10dBu
Minimum input level -65dBu
Gain adjustment range 0 to 55 dB
Input impedance 5.0 kΩ or more
Phantom power + 48V can be supplied
■ Stereo (RCA) input: 1-2
Connector RCA pin jack
Maximum input level + 6dBV (1.995Vrms)
Specified input level -10dBV (0.316Vrms)
Headroom 16dB
Input impedance 10 kΩ
■ LINE output: 1-16 channels
Equivalent to connector XLR-3-32 (1: GND, 2: HOT, 3: COLD)
■ Monitor output (L / R)
Connector XLR-3-32 type (1: GND, 2: HOT, 3: COLD)
■ Headphone output
Connector 6.3mm (1/4 ") TRS standard jack & 3.5mm (1/8") stereo mini jack
Maximum output 100mW + 100mW (32Ω load, when connected to only one side jack)
Digital audio input / output
■ USB audio
Connector Type-B
Number of inputs 32ch * Input to this unit
Number of outputs 32ch * Output from this unit
Sampling frequency 48kHz, 96kHz
Bit depth 32 bits (integer)
■ Dante (PRIMARY / SECONDARY): Redundant / Switched compatible
Connector etherCON Cat5e compatible connector
Transmission protocol Dante
Gigabit Ethernet standard 1000BASE-T (IEEE802.3ab)
Cable CAT5e STP
Number of channels 64 channels (48kHz), 32 channels (96kHz)
Control I / O
■ GPIO
Connector D-sub 25pin female inch screw
Input circuit pull-up (5V)
Output circuit open collector
Output impedance 10Ω
Withstand voltage 20V
Maximum current 35mA
+ 5V maximum supply current 50mA
■ FOOT SWITCH
Connector 6.3mm (1/4 ") TS standard jack (Tip: SIG, Sleeve: GND)
■ ETHERNET (for control)
Connector RJ-45
Ethernet standard 100BASE-TX, 1000BASE-T
Protocol TCP / IP
Other input / output
■ WORD IN
Connector BNC (unbalanced)
Input level 0.5Vpp-5Vpp
Impedance 75Ω +/- 10%
Input frequency 48kHz, 96kHz
Allowable frequency deviation +/- 100ppm
■ WORD THRU / OUT
Connector BNC (unbalanced)
Equivalent to output level 5V TTL
Output frequency 48kHz, 96kHz
Impedance 75Ω +/- 10%
■ USB (top panel): For both keyboard and storage
Connector Type-C
Standard USB2.0 HIGH SPEED (480Mbps)
Bus power 5V-0.5A
Corresponding class HID, mass storage
■ USB (rear panel): For USB audio interface (requires dedicated driver)
Connector Type-B
Standard USB2.0 HIGH SPEED (480Mbps)
■ LAMP
Connector XLR 4pin female (1: N.A., 2: N.A., 3: GND, 4: + 12V)
Supply voltage 0V ~ 12V (brightness adjustable)
Maximum power 5W
Recorder / player specifications
■ Recording media
SD card SDHC (8GB ~ 32GB CLASS10), SDXC (64GB ~ 128GB CLASS10)
USB memory (playback only) 8GB ~ 128GB
Corresponding file system
FAT32 (SDHC, USB memory)
ExFAT (SDXC, USB memory)
■ Recording / playback format
WAV / BWF recording: 48kHz / 96kHz, 24bit, 2ch
Playback: 48kHz / 96kHz, 16 / 24bit, 2ch
MP3 playback: 44.1kHz / 48kHz, 32kbps ~ 320kbps
AAC playback: 44.1kHz / 48kHz, 64kbps ~ 320kbps
General
■ Main display: 7 inch, color touch panel display x2
Resolution 800x480
■ Channel display: Monochrome x2
Resolution 384x68
■ Fader: 100 mm stroke, motor drive
■ External dimensions: 472.0 (W) x 228.1 (H) x 554.4 (D) mm
■ Mass: 13kg
■ Power supply: AC100-240V, 50 / 60Hz
■ Power consumption: 65W
■ Operating temperature: 0 ~ 40 ℃
OS / operating conditions
■ USB audio interface
Windows
Supported OS
Windows 11 64-bit
Windows 10 64-bit
Compatible PC Windows compatible PC equipped with USB2.0 or higher
Mac
Supported OS
MacOS Monterey (12)
MacOS Big Sur (11)
MacOS Catalina (10.15)
Compatible PC
Mac equipped with USB 2.0 or higher
Remote app
Windows
Windows 11 64-bit
Windows 10 64-bit
Mac
MacOS Monterey (12)
MacOS Big Sur (11)
MacOS Catalina (10.15)
iOS
IPadOS 15
IPadOS 14
■ Bundled items
Power cord (without lock) (JAPAN USA, EUROPE, OCEANIA) x3
TASCAM ID registration guide
Owner's manual (with warranty)

Standard accessories: Dedicated dust cover AK-DCSV24, tablet shelf AK-TB15 (2 pcs), power cord with retaining lock AC-1800L
