TASCAM / US-1x2HR

ボーカルやギター等のレコーディングに最適なシンプルでコンパクトなオーディオインターフェイス。iOSデバイスの接続に対応しています。入力はXLRマイク1系統とTRSライン/ギター1系統を装備。192kHzに対応し音質の向上を実現しました。ループバック機能搭載により高音質でのライブ配信が可能。配信ソフトウェア「OBS」に対応しています。　安心のサウンドハウス3年保証付き！

■Accessories
US-1x2HR
USB cable (Type-A-Type-C)
DAW Software Installation Guide
DAW Plugin Software Installation Guide
Instruction manual (with warranty)

■Specifications
Sampling frequency 44.1k / 48k / 88.2k / 96k / 176.4k / 192k Hz
Number of quantization bits 24 bits

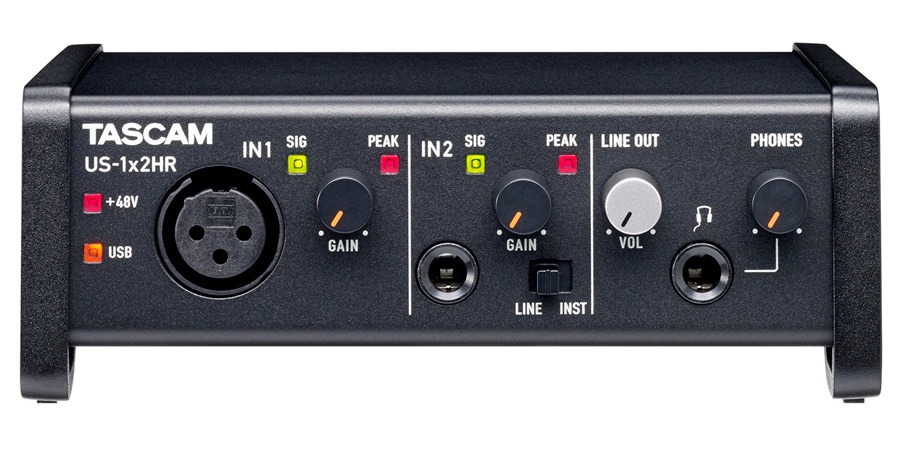

Analog audio input
MIC input (IN 1)
Connector XLR-3-31 (1: GND, 2: HOT, 3: COLD), balance
Input impedance 2.4kΩ
Maximum input level
(GAIN: MIN) + 9dBu (2.183Vrms)
Gain width 58dB
LINE / INST input (IN 2)
LINE input
Connector 6.3mm (1/4 ") TRS standard jack (T: HOT, R: COLD, S: GND), balanced
* When the [LINE INST] switch is set to [LINE]
Input impedance 10kΩ
Maximum input level
(GAIN: MIN) + 20dBu (7.75Vrms)
Gain width 45 dB
INST input
Connector 6.3mm (1/4 ") TS standard jack (T: HOT, S: GND), unbalanced
* When the [LINE INST] switch is set to [INST]
Input impedance 1MΩ or more
Maximum input level
(GAIN: MIN) + 3dBV (1.1425Vrms)
Gain width 45 dB
LINE L / R input
Connector RCA pin jack, unbalanced
Input impedance 10kΩ
Maximum input level + 6dBV (1.9953Vrms)
Analog audio output
LINE output
Connector RCA pin jack, unbalanced
Output impedance 100Ω
Maximum output level + 6dBV (1.995Vrms)
Headphone output
Connector 6.3mm (1/4 ") stereo standard jack
Maximum output level 18mW + 18mW or more
(THD + N 0.1% or less, with 32Ω load)

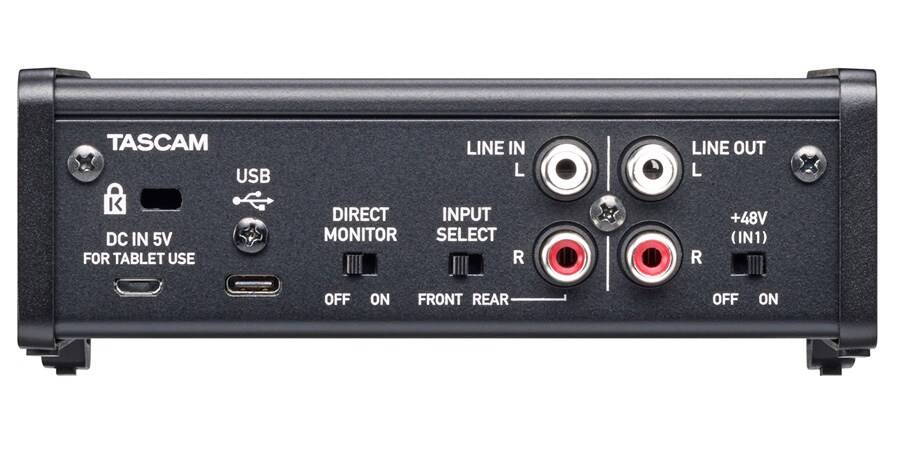

Control I / O
USB
Connector USB Type-C
Format USB2.0 HIGH SPEED (480Mbps)
DC IN 5V
Connector USB Micro B type
Power supply
USB bus power when connected to a computer
USB power adapter for iOS / iPad OS connection (TASCAM PS-P520U, etc., capable of supplying voltage 5V, current 700mA or more),
External battery pack (voltage 5V, current 700mA or more can be supplied),
TASCAM BP-6AA (sold separately)
Power consumption 1.8W
External dimensions 146 (W) x 55 (H) x 120 (D) mm (including protrusions)
Mass 623g
Operating temperature 5 to 35 ° C
Accessories USB cable (Type-A-Type-C), DAW software installation guide, DAW plug-in software installation guide, instruction manual (with warranty)


Audio performance
Microphone amplifier EIN (input conversion noise) -128dBu or less (150Ω termination, GAIN knob maximum, 20kHz SPCL LPF + A-Weight)
Frequency characteristic
MIC input (IN 1)
44.1k / 48k Hz 20Hz-20kHz, + 0dB / -0.4dB (JEITA)
88.2k / 96k Hz 20Hz-40kHz, + 0dB / -0.4dB (JEITA)
LINE input (IN 2)
44.1k / 48k Hz 20Hz-20kHz, + 0dB / -0.3dB (JEITA)
88.2k / 96k Hz 20Hz-40kHz, + 0dB / -0.3dB (JEITA)
LINE output
44.1k / 48k Hz 20Hz-20kHz, + 0.2dB / -0.4dB (JEITA)
88.2k / 96k Hz 20Hz-40kHz, + 0.2dB / -0.4dB (JEITA)
Total Harmonic Distortion (THD + N) 0.0013% (MIC IN, 1kHz sine wave, -5dBFS input, GAIN knob minimum, 20kHz SPCL LPF)
0.0027% (LINE IN, 1kHz sine wave, -5dBFS input, GAIN knob minimum, 20kHz SPCL LPF)
0.0015% (LINE OUT, 1kHz sine wave, -4dBFS input, LINE OUT knob maximum, 20kHz SPCL LPF)
S / N ratio 109dB (MIC IN, GAIN knob minimum, 20kHz SPCL LPF + A-Weight)
105dB (LINE IN, GAIN knob minimum, 20kHz SPCL LPF + A-Weight)
110dB (LINE OUT, LINE OUT knob maximum, 20kHz SPCL LPF + A-Weight)
Crosstalk 95dB or more (MIC / LINE → LINE OUT, 1kHz sine wave, GAIN knob minimum)


■Operating conditions
Windows
Compatible PC Windows compatible PC equipped with USB 2.0
CPU / Clock Dual-core processor 2GHz or higher (x86)
Memory 2GB or more
Driver ASIO ASIO2.0, WDM
Mac
Compatible PC Mac equipped with USB 2.0
CPU / Clock Dual-core processor 2GHz or higher (x86)
Memory 2GB or more
Driver Core Audio
iOS / iPadOS
Driver Core Audio * Apple genuine Lightning-USB camera adapter (sold separately) is required to connect an iOS device equipped with a Lightning connector.


■Supported OS
Windows
Windows 10 (October 2020 Update) New, Windows 8.1, Windows 7
Mac
macOS Big Sur New, macOS Catalina, macOS Mojave, macOS High Sierra (10.13)
iOS
iPadOS 14 New, iOS 14 New, iPadOS, iOS 13, iOS 12
