Morningstar FX / MIDI BOX

TRSタイプのMIDI入力を持つデバイスに、5pin MIDIを接続できるよう変換するインターフェースMIDI BOX。小型ながら5pin MIDI入力は3.5mm TRS MIDI出力へ変換され8つのアイソレートされた出力へ送られます。

■ TRS MIDI converter / splitter (converter)
■ Features

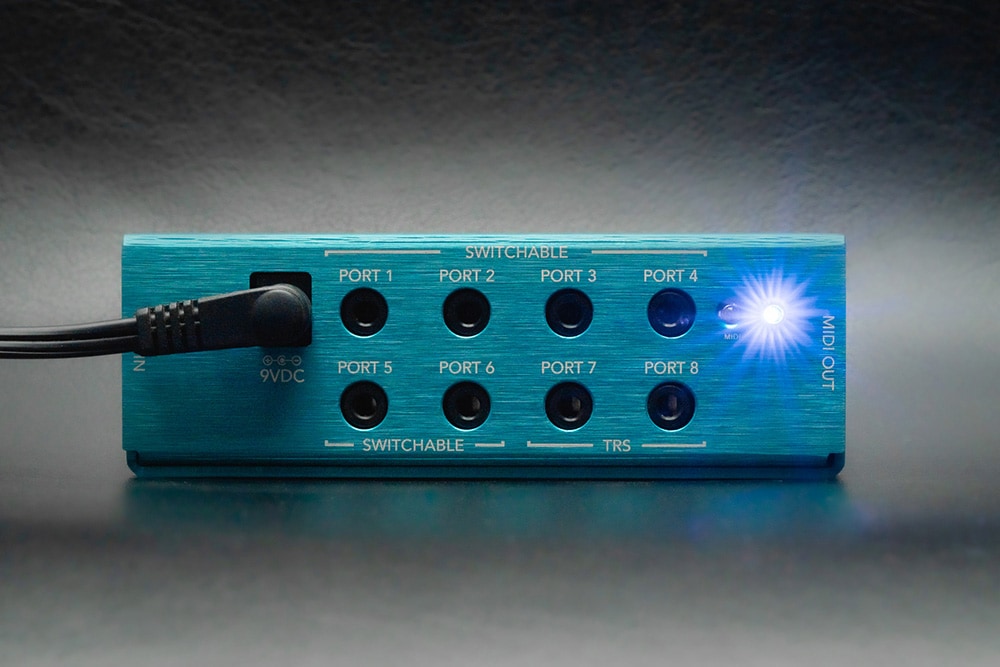

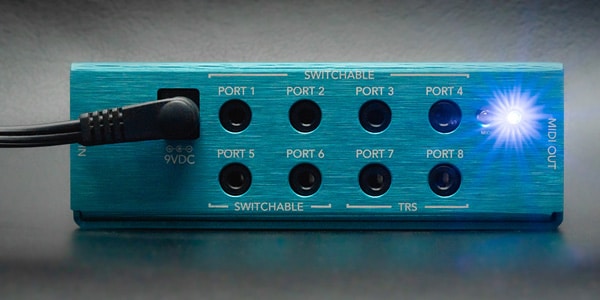

・ 8 ISOLATED MIDI OUTPUTS: Eight isolated 3.5mm TRS MIDI outputs are available. Keeps MIDI signal strength perfectly
-SWITCHABLE PORTS: tip / ring can be selected with an internal jumper for ports 1-6. Compatible with all TRS MIDI devices
(Ports 1-6 can be set via MIDI via tip or ring. Ports 7-8 are fixed via MIDI via tip, ring floating)

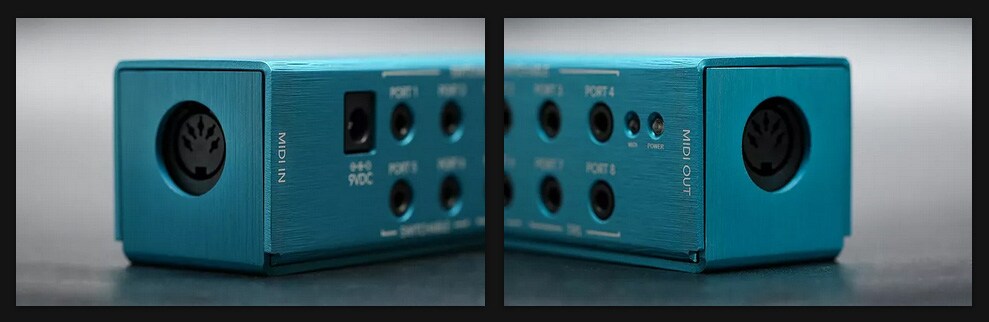

-5-PIN MIDI IN: MIDI controllers and devices with standard 5-pin MIDI output can be used
・ 5-PIN MIDI THRU: The input MIDI signal is sent to the 5pin MIDI THRU at the same time, contributing to system construction.
・ INDICATOR LED LIGHTS: Two independent LEDs can check the operation of MIDI BOX and the reception of MIDI signals.

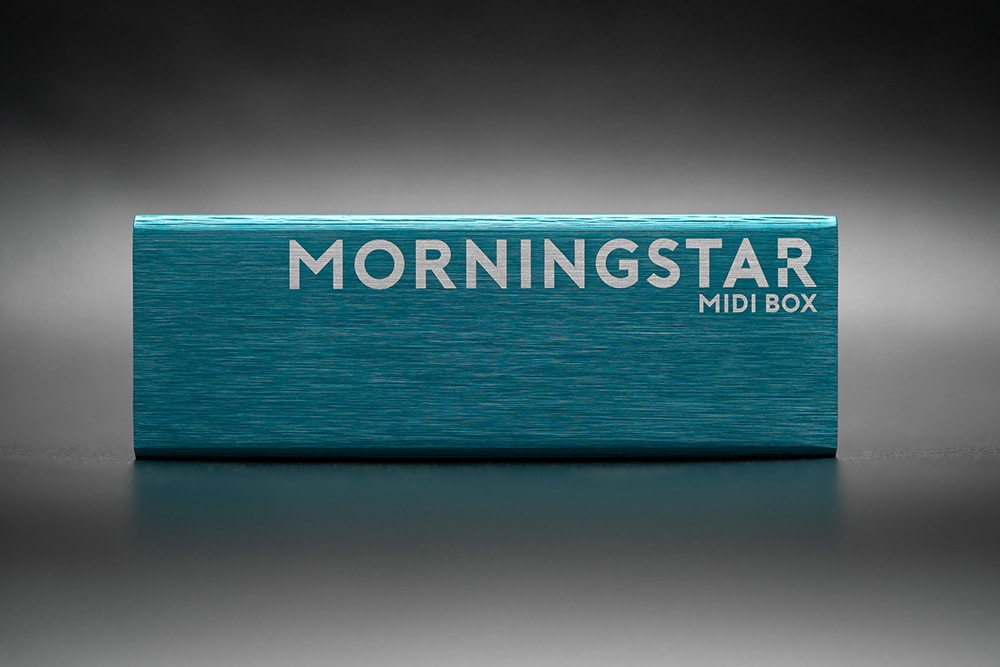

-SUPER COMPACT: Compact size of 117mm x 40mm x 40.5mm, the best match for any pedal board. Supports a wide range of setups, such as installing under the board

～ From the manufacturer site ～
An interface that allows you to connect 5pin MIDI to all TRS MIDI devices.

Morningstar MIDI BOX is an interface that converts 5pin MIDI to a device with a TRS type MIDI input. It has 8 outputs in a small package.

The 5pin MIDI input is converted to a 3.5mm TRS MIDI output and sent to eight isolated outputs. Many TRS-type MIDIs have their own reception methods for each brand, which has been an obstacle in system construction. The output port of the MIDI BOX can be switched with an internal jumper to flexibly support devices with TRS MIDI such as BOSS, Empress Effects, Chase Bliss Audio, Jackson Audio, Cooper FX, Meris, and Bondi Effects. It also has a 5-pin MIDI through for comfortable installation in the system.

※The image is with for illustrative purpose.
