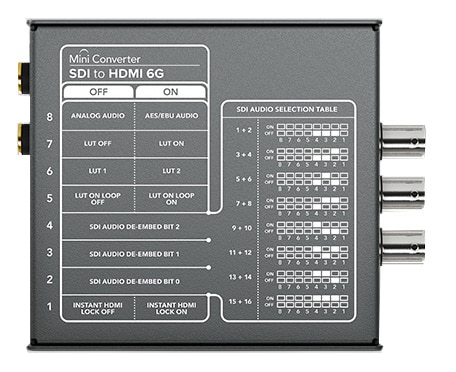

Blackmagic Design / Mini Converter - SDI to HDMI 6G

Converts SD, HD, 3G Level A/Level B, 6G-SDI video sources to HDMI in SD, HD and Ultra HD video formats. You can also de-embed SDI audio into HDMI, AES/EBU, or balanced analog audio output.

■ SDI/HDMI converter
Connections:
■ SDI video input: SD/HD/6G-SDI x1 Alternate SDI input x1 (automatically switched if main input fails)
■ SDI video output: SDI video loop output x1
■ HDMI video output: HDMI type A output
■ Analog audio output: 2ch balanced analog audio
■ Digital audio output: 4ch AES/EBU digital audio
■ SDI Redundant Input: Automatically switch if main SDI input is lost
■ Supported multi-rate: SD/HD/6G-SDI automatic detection
■ Update and configuration: USB
■ Reclocking: Supported
format
■ SD video format: 525i59.94 NTSC, 625i50 PAL
■ HD video format: 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50 , 1080i59.94, 1080i60
■ 2K video format: 2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsFUltra HD video format: 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
■ 4K video format: 4K DCI 24p:
■ SDI standard: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M, SMPTE 424M, SMPTE 425M, SMPTE ST-2081
■ SDI video rate: SDI video connection can be switched between SD, HD, Level A/Level B 3G-SDI, 6G-SDI
■ SDI video sampling: 4:2:2, 4:4:4
■ SDI audio sampling: TV standard sample rate (48kHz/24bit)
■ SDI color accuracy4:2:2, 4:4:4
■ SDI color space: YUV, RGB
■ SDI automatic switching: SD/HD/6G-SDI is automatically detected
■ HDMI video format: 625i50 PAL, 525i59.94 NTSC, 720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30
■ HDMI color space: YUV, RGB
■ HDMI color accuracy: 4:2:2, 4:4:4
■ 114.25mm x 92.27mm 23.0mm 257g
